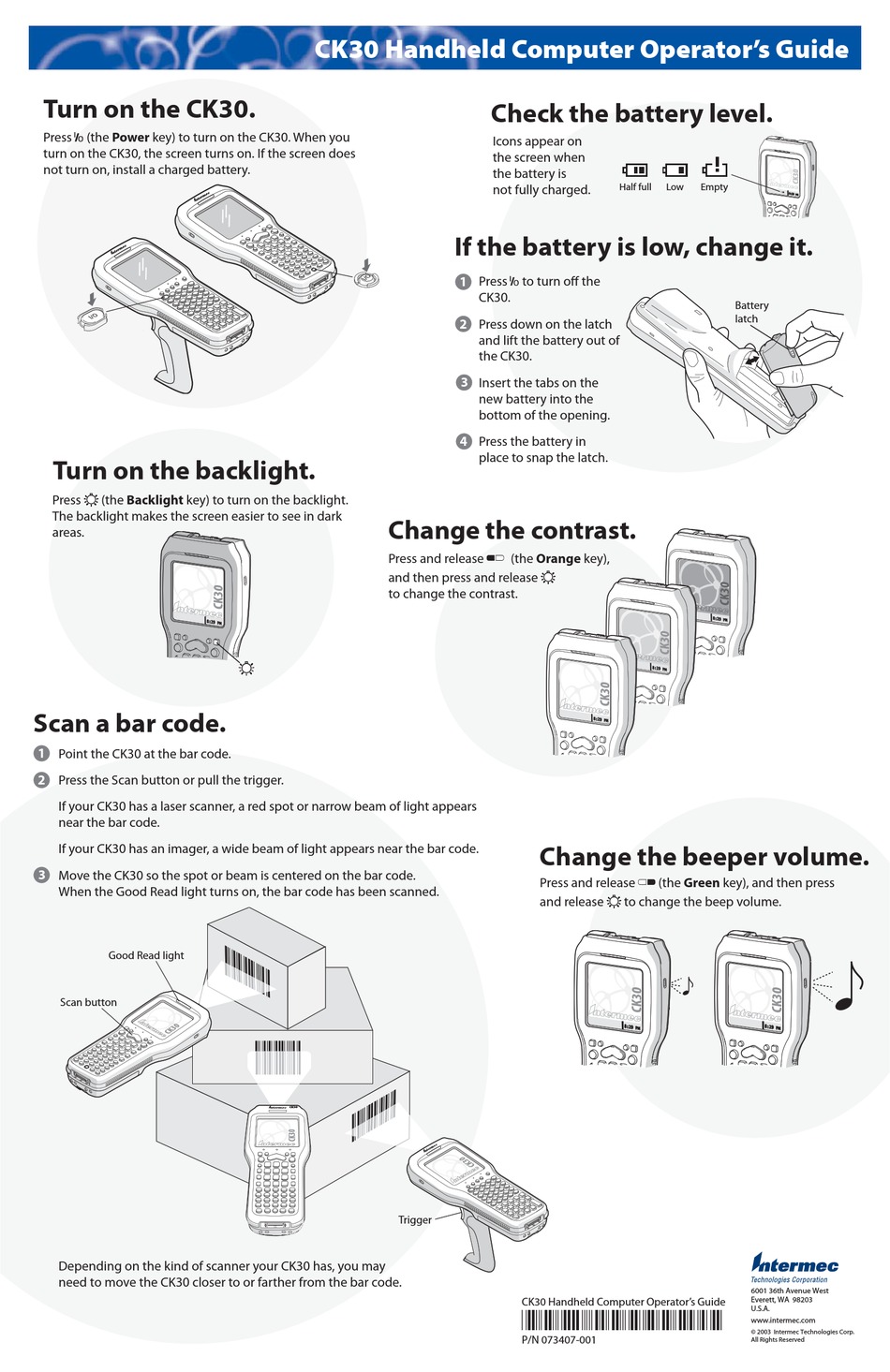

Intermec CK30 Operator's Manual

Turn on the CK30.
Press I (the Power key) to turn on the CK30. When you I
turn on the CK30, the screen turns on. If the screen does
not turn on, install a charged battery.
Turn on the backlight.
E
Press (the Backlight key) to turn on the backlight.
The backlight makes the screen easier to see in dark
areas.
Scan a bar code.
1 Point the CK30 at the bar code.
2 Press the Scan button or pull the trigger.
If your CK30 has a laser scanner, a red spot or narrow beam of light appears
near the bar code.
If your CK30 has an imager, a wide beam of light appears near the bar code.
3 Move the CK30 so the spot or beam is centered on the bar code.
When the Good Read light turns on, the bar code has been scanned.
Good Read light
Scan button
Depending on the kind of scanner your CK30 has, you may
need to move the CK30 closer to or farther from the bar code.
CK30 Handheld Computer Operator's Guide
Change the contrast.
Press and release B (the Orange key),
and then press and release
to change the contrast.
E
ABCD
ABCD
CK30
Trigger
Check the battery level.
Icons appear on
the screen when
the battery is
Half full
not fully charged.
If the battery is low, change it.
Press I to turn off the I
1
CK30.
2 Press down on the latch
and lift the battery out of
the CK30.
3 Insert the tabs on the
new battery into the
bottom of the opening.
Press the battery in
4
place to snap the latch.
E
Change the beeper volume.
Press and release C (the Green key), and then press
E
and release
CK30 Handheld Computer Operator's Guide
*073407-001*
P/N 073407-001
Low Empty
Battery
latch
to change the beep volume.
