LightWave EasyCheck Fiber Optic End-face Inspector

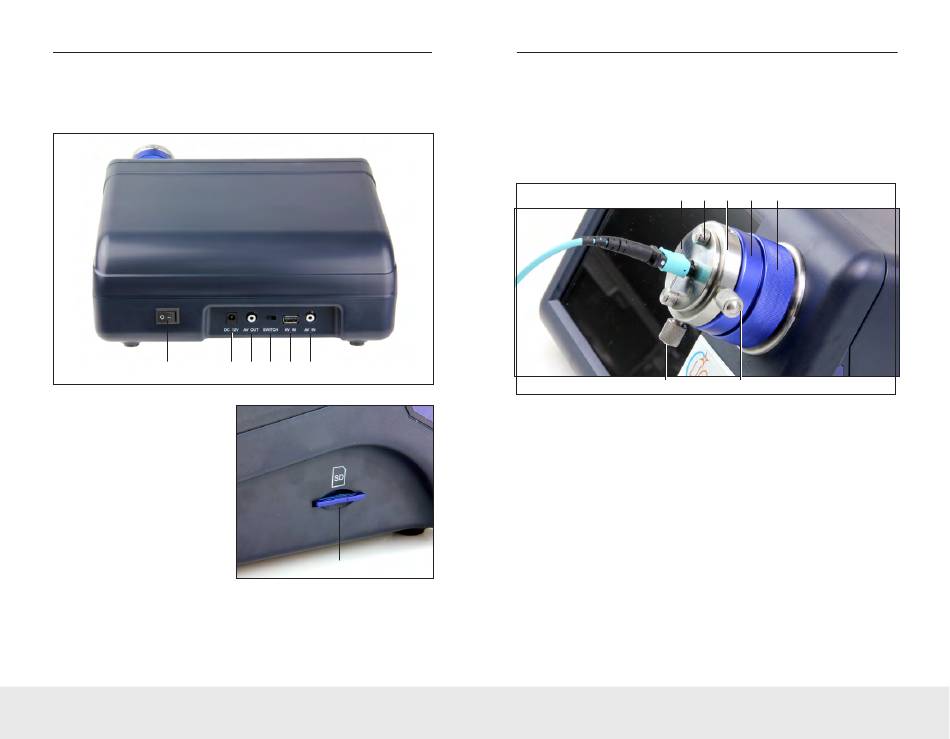

EasyCheck Function Description (cont'd)
11
12
11 - Power Switch
12 - 12V Power Supply Port
13 - A/V Image Output Port
14 - Image Display Switch
15 - USB Image Input Port
16 - A/V Image Input Port
17 - SD Card Slot
Notes:
(14) External display devices can be connected to present internal video signal.
(15) Used for switching between internal and external signal source.
(16 & 17) Dedicated image input tip for external endface inspectors.
7
13
14
15
16
17
EasyCheck Function Description (cont'd)
The EasyCheck can be utilized for single-channel and multi-channel connector inspections.
Combining aesthetics and practicability, EasyCheck subverted the traditional design concept
and makes the process of inspection not only valuable but also enjoyable.
4
6
1 - Focus Ring
2 - Dust Cover
3 - Fiber Cavity
4 - Connector Adaptor Tip
5 - Locking Screw (For multi-channel connector inspections only)
6 - Y-Axis Image Adjustment Screw (+2mm ~ -2mm Adjustment Range)
7 - X-Axis Image Adjustment Screw (+2mm ~ -2mm Adjustment Range)
LightWave EasyCheck Fiber Optic End-face Inspector
5
3
2
1
7
8
