Summary of Contents for Lightwave EasyCheck EC400KD

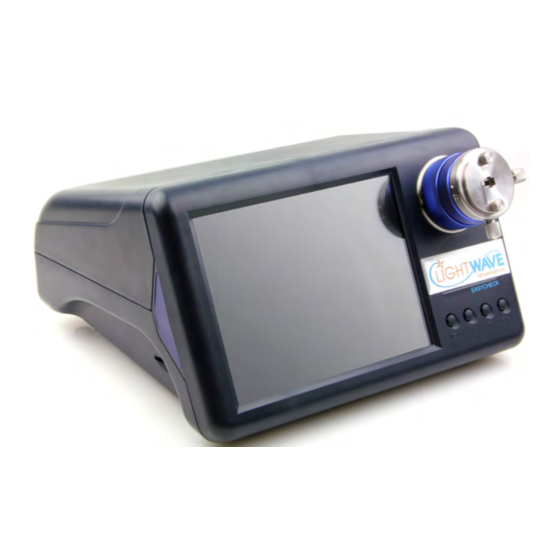

- Page 1 EasyCheck Integrated Fiber Optic End-face Inspector EC400KD INSTRUCTION MANUAL Introduction Endface Inspector Operation Additional information on this product can be found at our website. Maintenance http://www.lightwavecable.com/ © Copyright 2013 Tactical Deployment Systems LLC...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Chapter 1 | Introduction Image Capture Inspections Durability & Value Picture View Design Concept External Monitor Instructions Unrivaled Image Quality External Optical Fiber End-face Inspector Instructions Convenience Dust-Proof Chapter 4 | Maintenance Centered Image Precision Ceramic Adaptor Tips Notice Safe &... -
Page 3: Chapter 1 | Introduction
You no longer need to worry about the complicated cable between monitor and microscope. Easycheck helps you save time and space, and improve Thank you for purchasing your new LightWave EasyCheck Optical End-face Inspection productivity. -
Page 4: Centered Image
LightWave EasyCheck Fiber Optic End-face Inspector LightWave EasyCheck Fiber Optic End-face Inspector Centered Image EasyCheck Technical Specifications EasyCheck’s intelligent optoelectronic structure and adaptor tips always keep the image in Model Number EC-400K the center during focusing, eliminating image jitter problems. -
Page 5: Chapter 2 | Function Keys Instruction
LightWave EasyCheck Fiber Optic End-face Inspector LightWave EasyCheck Fiber Optic End-face Inspector Chapter 2 | Function Keys Instruction EasyCheck Function Description The EasyCheck Fiber End-face Inspector features a continuous variable zoom ratio, manual focusing, X- and Y-axis adjustable function and 400x zoom capability. Utlilizing different inspection tips, EasyCheck can fulfill various inspections of MPO/MTP fiber connectors... - Page 6 LightWave EasyCheck Fiber Optic End-face Inspector LightWave EasyCheck Fiber Optic End-face Inspector EasyCheck Function Description (cont’d) EasyCheck Function Description (cont’d) The EasyCheck can be utilized for single-channel and multi-channel connector inspections. Combining aesthetics and practicability, EasyCheck subverted the traditional design concept and makes the process of inspection not only valuable but also enjoyable.
-
Page 7: Chapter 3 | Operation Instructions
LightWave EasyCheck Fiber Optic End-face Inspector LightWave EasyCheck Fiber Optic End-face Inspector Chapter 3 | Operation Instructions Installation Open box and take out the machine, choose and install the corresponding adapter tip into Easycheck (the tip should be fastened securely). Assemble the power adapter and power line and makes sure the power supply is well connected. -
Page 8: Image Capture
LightWave EasyCheck Fiber Optic End-face Inspector LightWave EasyCheck Fiber Optic End-face Inspector Image Capture External Optical Fiber End-face Inspector Instructions CAP is the image capture key. Pressing CAP can capture and save the current image to the Easycheck’s has two AV IN port types: USB and AV. The USB type is customized for external SD card.
