LightWave EasyCheck Fiber Optic End-face Inspector

Centered Image

EasyCheck's intelligent optoelectronic structure and adaptor tips always keep the image in
the center during focusing, eliminating image jitter problems.

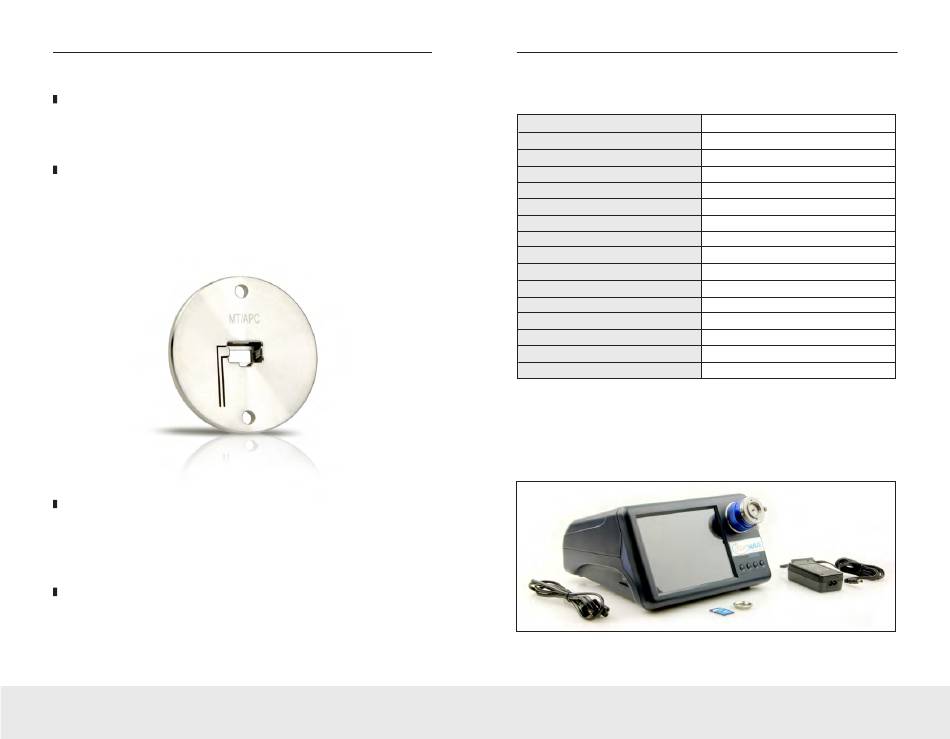

Precision Ceramic Adaptor Tips

EasyCheck comes with MTP/MPO precision tips for inspection of cables with or without
housings. The high-level concentricity provides an ideally centered image when installing
different tips. The ceramic casing tips have infinite lifespan and the image will not deviate
from center due to extended use.
Safe & Ergonomic Design
Easycheck features a customized 8" digital TFT monitor to reveal the subtle defects of the
fiber end-face. Compared with traditional CRT monitor, the digital TFT monitor has no screen
flashing.

Image Storage

The fiber end-face image can be captured at any time and be stored on the included SD card,
making it easier for volume production, standard settings, and failure analysis.
3
EasyCheck Technical Specifications
Model Number
Amplification Factor
X / Y Axis Adjustment
Image Input/Output Format
CCD Areal Resolution
Image Output Tip
Image Input Tip
Focus Mode
Image Analysis
Power Dissipation
Working Temperature
Storage Temperature
Display
Power Supply
Volume
Weight

Included Items:

EasyCheck Fiber Optic End-face Inspector
•
2G SD Storage Card
•
Instruction Book
•
NOTE: Choose appropriate power adapter according to location standards and appropriate tip according to connector requirements.
LightWave EasyCheck Fiber Optic End-face Inspector
EC-400K
400x
Yes
Simulated PAL
1/3" 420cable
RCA
RCA
Manual
None
3W
+50°F ~ +122°F
32°F ~ +131°F
8" TFT 800x600 PIX
DC 12
270mm x 245mm x 155mm
3.5 lbs.
(2) MTP/MPO Precision Tips
•
Main DC 12V Power Supply
•
