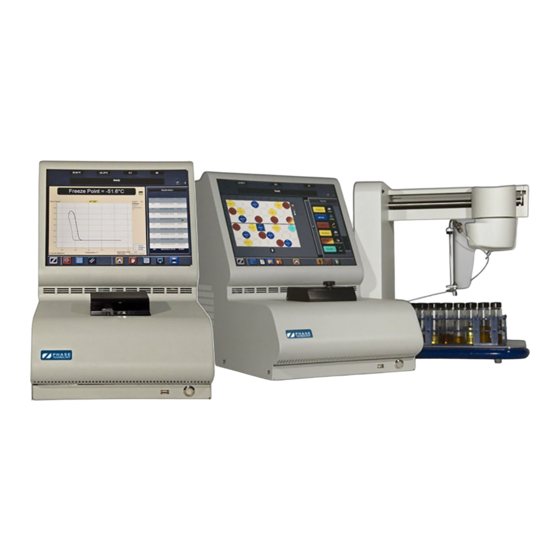

70Xi Series Solenoid Board Replacement
Purge pump
connector @ P4
Solenoid
module power
cable @ T1
PPC control
cable @ LJ1
CANBUS
cable @ J1
phase-technology.com 11168 Hammersmith Gate, Richmond BC Canada V7A 5H8 Tel (604)241-9568 Fax (604) 241-9569
CAUTION! The Solenoid Board and other electronics are very sensitive to static discharges.
Please follow proper grounding techniques before proceeding.
CAUTION! The Logo Backlight Board (mounted on a bracket on the front left-hand corner of
the analyzer) contains LED's which can be damaged or broken off entirely if clothing should rub
against them. It is recommended that you cover the Logo Backlight Board with painter's tape
or protective material of some kind.

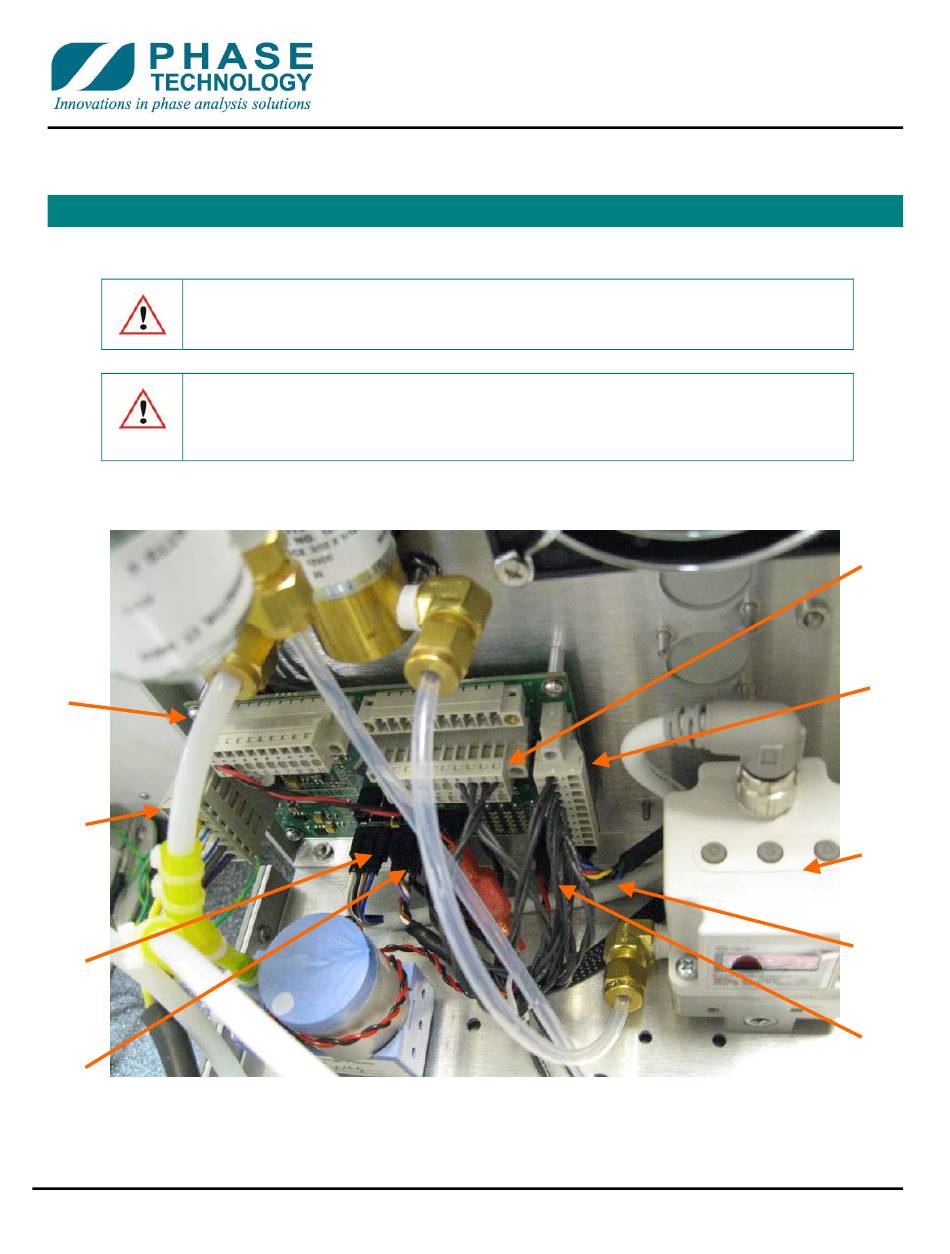

Figure 1. 70Xi Solenoid Board with all connections
Application Note AN201202
Solenoid
control 2 @ P2
Solenoid
control 1 @ P1
PPC
Datalink
cable @ J3
Fan connector
@ J5
Advertisement
Table of Contents
Related Manuals for Phase Technology 70Xi Series
Summary of Contents for Phase Technology 70Xi Series
- Page 1 Application Note AN201202 70Xi Series Solenoid Board Replacement CAUTION! The Solenoid Board and other electronics are very sensitive to static discharges. Please follow proper grounding techniques before proceeding. CAUTION! The Logo Backlight Board (mounted on a bracket on the front left-hand corner of the analyzer) contains LED’s which can be damaged or broken off entirely if clothing should rub...
- Page 2 Application Note AN201202 Procedure Remove the analyzer cover 1. Ground yourself by touching the metal surface of the analyzer. 2. Shut down the analyzer and remove the power cord from rear of the analyzer. 3. Remove all Phillips screws from the left and right sides of the cover. 4.
