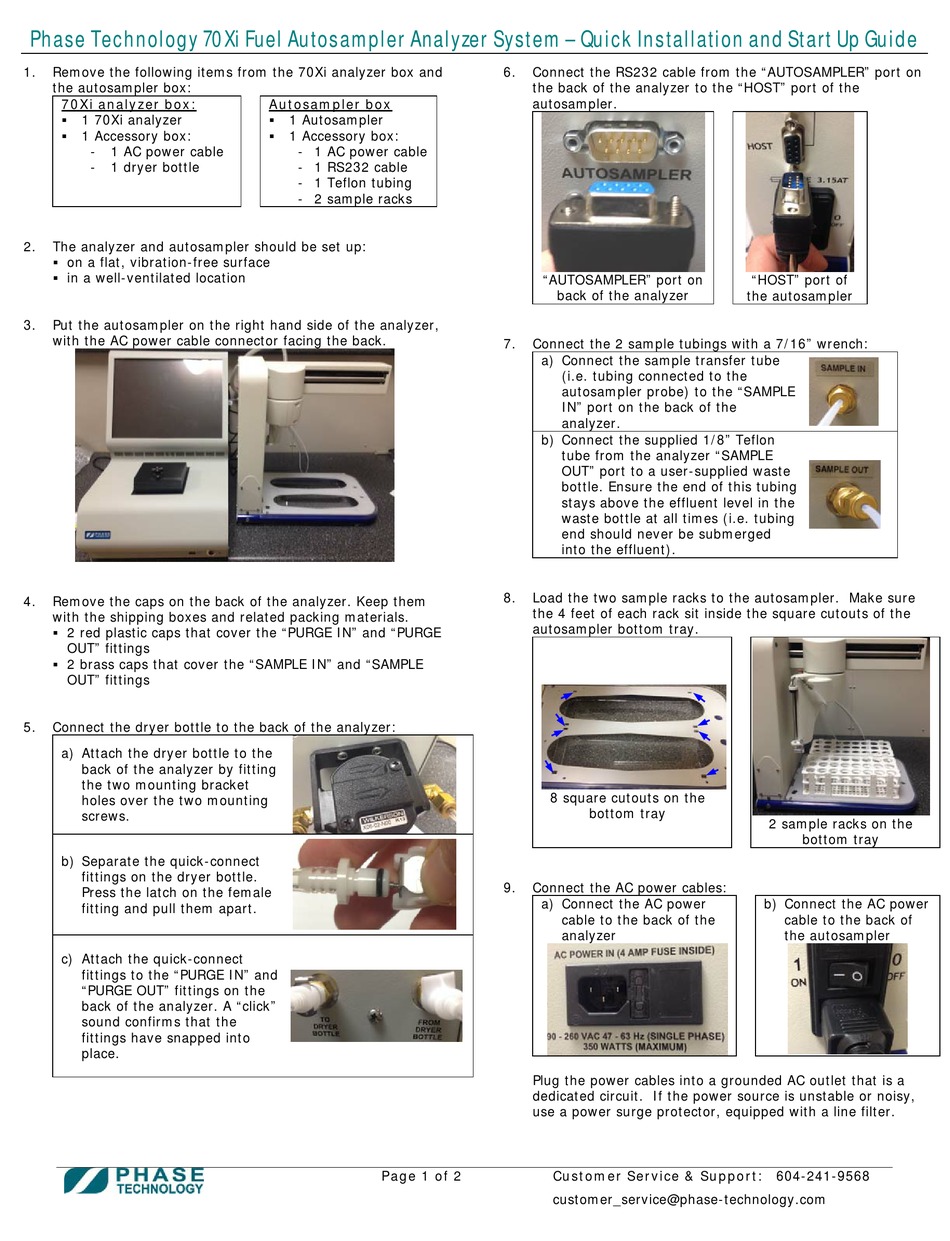

Phase Technology 70Xi Fuel Autosampler Analyzer System – Quick Installation and Start Up Guide
1. Remove the following items from the 70Xi analyzer box and
the autosampler box:
70Xi analyzer box:
1 70Xi analyzer

1 Accessory box:

1 AC power cable
-
1 dryer bottle
-
2. The analyzer and autosampler should be set up:
 on a flat, vibration-free surface
 in a well-ventilated location
3. Put the autosampler on the right hand side of the analyzer,
with the AC power cable connector facing the back.
4. Remove the caps on the back of the analyzer. Keep them
with the shipping boxes and related packing materials.
 2 red plastic caps that cover the "PURGE IN" and "PURGE
OUT" fittings
 2 brass caps that cover the "SAMPLE IN" and "SAMPLE
OUT" fittings
5. Connect the dryer bottle to the back of the analyzer:
a) Attach the dryer bottle to the
back of the analyzer by fitting
the two mounting bracket
holes over the two mounting
screws.
b) Separate the quick-connect
fittings on the dryer bottle.
Press the latch on the female
fitting and pull them apart.
c) Attach the quick-connect
fittings to the "PURGE IN" and
"PURGE OUT" fittings on the
back of the analyzer. A "click"
sound confirms that the
fittings have snapped into
place.
Autosampler box
1 Autosampler

1 Accessory box:

- 1 AC power cable
- 1 RS232 cable
- 1 Teflon tubing
- 2 sample racks
Page 1 of 2
6. Connect the RS232 cable from the "AUTOSAMPLER" port on
the back of the analyzer to the "HOST" port of the
autosampler.
"AUTOSAMPLER" port on
back of the analyzer
7. Connect the 2 sample tubings with a 7/16" wrench:
a) Connect the sample transfer tube
(i.e. tubing connected to the
autosampler probe) to the "SAMPLE
IN" port on the back of the
analyzer.
b) Connect the supplied 1/8" Teflon
tube from the analyzer "SAMPLE
OUT" port to a user-supplied waste
bottle. Ensure the end of this tubing
stays above the effluent level in the
waste bottle at all times (i.e. tubing
end should never be submerged
into the effluent).
8. Load the two sample racks to the autosampler. Make sure
the 4 feet of each rack sit inside the square cutouts of the
autosampler bottom tray.
8 square cutouts on the
bottom tray
9. Connect the AC power cables:
a) Connect the AC power
cable to the back of the
analyzer
Plug the power cables into a grounded AC outlet that is a
dedicated circuit. If the power source is unstable or noisy,
use a power surge protector, equipped with a line filter.
Customer Service & Support: 604-241-9568
customer_service@phase-technology.com
"HOST" port of
the autosampler
2 sample racks on the
bottom tray
b) Connect the AC power
cable to the back of
the autosampler
