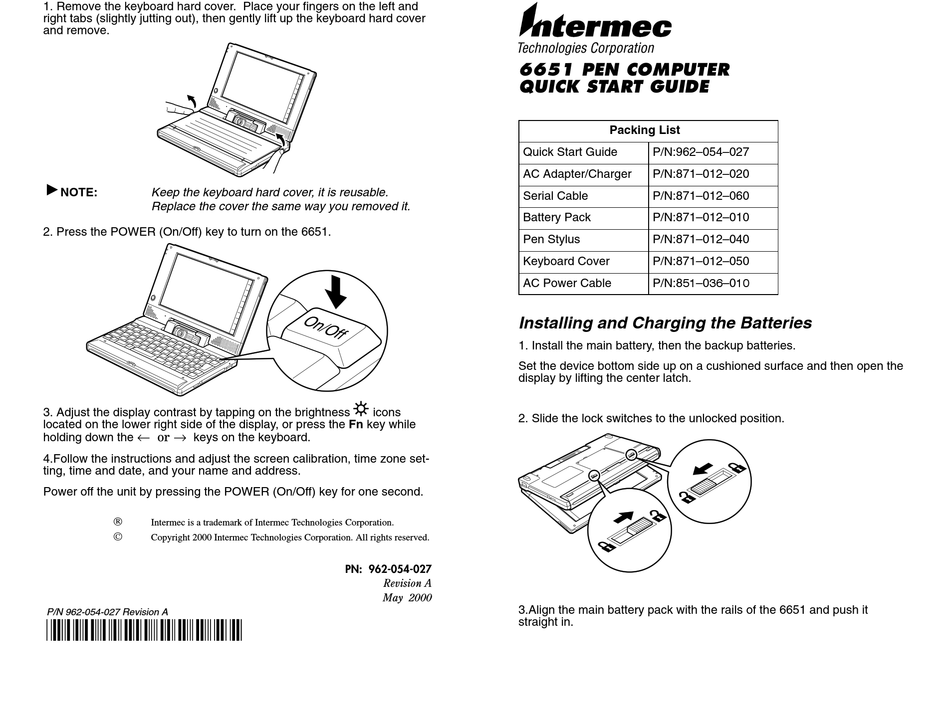

Intermec 6651 Quick Start Manual

1. Remove the keyboard hard cover. Place your fingers on the left and
right tabs (slightly jutting out), then gently lift up the keyboard hard cover
and remove.
" NOTE:
Keep the keyboard hard cover, it is reusable.
Replace the cover the same way you removed it.
2. Press the POWER (On/Off) key to turn on the 6651.
3. Adjust the display contrast by tapping on the brightness
located on the lower right side of the display, or press the Fn key while
← or →
holding down the keys on the keyboard.
4.Follow the instructions and adjust the screen calibration, time zone set-
ting, time and date, and your name and address.
Power off the unit by pressing the POWER (On/Off) key for one second.

Intermec is a trademark of Intermec Technologies Corporation.

Copyright 2000 Intermec Technologies Corporation. All rights reserved.
P/N 962-054-027 Revision A
Quick Start Guide
AC Adapter/Charger
Serial Cable
Battery Pack
Pen Stylus
Keyboard Cover
AC Power Cable
Installing and Charging the Batteries
1. Install the main battery, then the backup batteries.
Set the device bottom side up on a cushioned surface and then open the
display by lifting the center latch.
icons
2. Slide the lock switches to the unlocked position.
3.Align the main battery pack with the rails of the 6651 and push it
straight in.
Packing List
P/N:962–054–027
P/N:871–012–020
P/N:871–012–060
P/N:871–012–010
P/N:871–012–040
P/N:871–012–050
P/N:851–036–010
