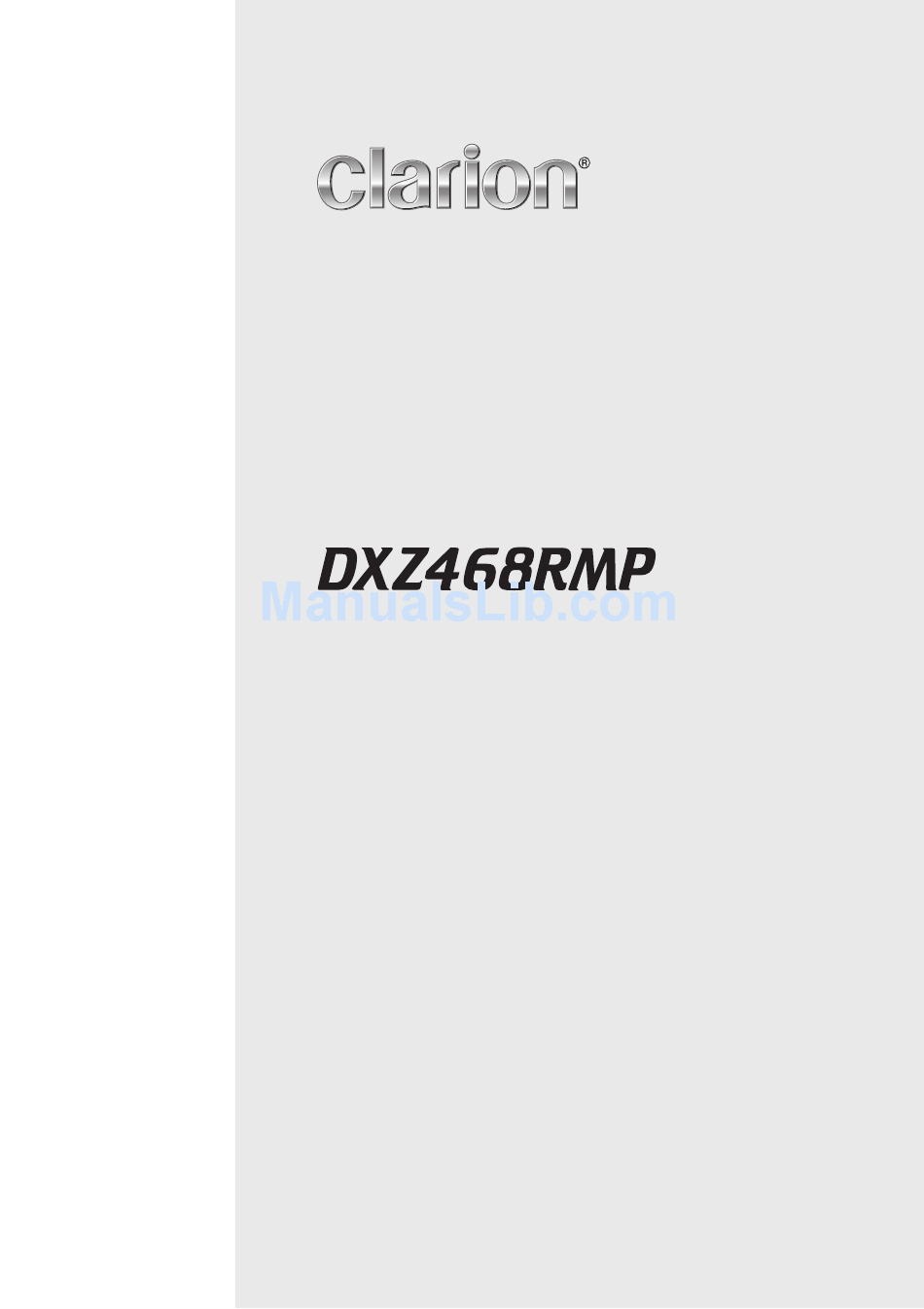

- Page 1 Owner’s manual Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Bruksanvisning Manual de instruções CD/MP3/WMA RECEIVER/CeNET CONTROL RADIO CD/MP3/WMA/CONTRÔLE CeNET CD/MP3/WMA-RECEIVER/CeNET CONTROL RICEVITORE PER CD/MP3/WMA/CeNET CONTROL CD/MP3/WMA-RECEIVER/CeNET CONTROLE RADIO CD/MP3/WMA/CONTROL CeNET CD/MP3/WMA-LÄSARE/CeNET KONTROLL RECEPTOR CD/MP3/WMA/CONTROLO CeNET...
- Page 2 Thank you for purchasing this Clarion product. ∗ Please read this ownerʼs manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
-
Page 3: Table Of Contents
3. This unit is applicable for on-road 4 wheel ve- hicle purpose only. Use for tractor, fork truck, bulldozer, off road vehicle, 2 or 3 wheel motor bicycle, marine boat or other special purpose vehicle is not appropriate. DXZ468RMP... -
Page 4: Handling Compact Discs
Bitte ausbreiten und die nächste Seite lesen. / Volgende pagina uitvouwen en doorlezen a.u.b. / Glöm inte att vika ut och läsa nästa sida. / DXZ468RMP Note on compact discs Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen. -
Page 5: Controls
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ468RMP / HAUPTGERÄT... -
Page 6: Nomenclature
CD/MP3/WMA mode. • Press the button to scroll the title during the CD- text play, while in the CD/MP3/WMA mode. DXZ468RMP [ BND ] button • Switch the band, or seek tuning or manual tuning while in the radio mode. -
Page 7: Major Button Operations When External Equipment Is Connected To This Unit
Announcement ) standby mode in the DAB mode. ( This function is only DAB tuner. ) [ BND ] button • Switch the band. Press and hold the button for 1 second or longer to switch to the seek tuning or manual mode. DXZ468RMP... - Page 8 • Press the button to switch to the ADJ mode. • Press and hold the button for 1 second or longer to switch to the TV picture mode or VTR ( external ) picture mode. ] lever • Select a station. DXZ468RMP...
-
Page 9: Display Items
Display Items LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ468RMP... -
Page 10: Remote Control
4. Replace the cover and slide in until it clicks into place. DXZ468RMP Notes: Misuse may result in rupture of the battery, producing leakage of fluid and resulting in personal injury or damage to surrounding materials. -
Page 11: Functions Of Remote Control Unit Buttons
MP3/ WMA mode. Switch reception band. Move preset channels up and down. No function. Preset scan. Press and hold the button for 2 seconds or longer: Auto store. No function. Switch between TV and VTR. DXZ468RMP... -
Page 12: Dcp
∗ If the flip down panel does not open fully, gently open it with your hand. 3. Pull the DCP toward you and remove it. 4. Close the HOLD FLAP. DXZ468RMP CAUTION Be sure to close the HOLD FLAP for safety when removing the DCP. -
Page 13: Operations
“NO TITLE” appears in the title display instead. For information on how to enter a title, refer to the subsection “Entering titles” in section “Operations Common to Each Mode”. CD/MP3/WMA DVD chang- ∗ When CT data is not received, “--:--CT” appears in the display. DXZ468RMP... -
Page 14: Adjusting The Balance
∗ The factory default setting is “0”. ( Adjustment range: -6 to +6 ) DXZ468RMP Adjusting the balance 1. Press the [ A-M ] button and select “BALANCE 0”. 2. Turning the [ ROTARY ] knob clockwise empha- sizes the sound from the right speaker;... -
Page 15: Radio Mode Operations
If the lever is pressed upward or downward and held in position for 1 second or longer, local seek tuning will be enabled. Broadcast stations with good reception sensitivity are selected. ∗ When local seeking starts, “LO SEEK” appears in the display. FM1... DXZ468RMP... -
Page 16: Recalling A Preset Station
3. Press and hold one of the [ DIRECT ] button for 2 seconds or longer to store the current station into preset memory. DXZ468RMP Auto store Auto store is a function for storing up to 6 stations that are automatically tuned in sequentially. -
Page 17: Rds Operations
1. Press and hold the [ ADJ ] button for 1 second or longer to switch to the RDS adjustment selection display. 2. Press the [ ] lever upward or downward to select “REG”. 3. Turn the [ ROTARY ] knob to select “ON” or “OFF”. DXZ468RMP... -
Page 18: Rds Mode Adjustment
TA standby mode. DXZ468RMP • Cancelling the TA standby mode As “TP” and “TA” lit in the display, press the [ TA ] button. The “TA” in the display goes off and the TA standby mode is cancelled. -
Page 19: Selecting Pty
Pop Music Sport Serious Classical Music Easy Listening Music ] lever upward or downward ”. Push ENT ] button. ] lever upward to search for ] lever downward to ] lever upward or downward ”. Push ENT ] button. DXZ468RMP... -
Page 20: Emergency Broadcast
• Cancelling an emergency broadcast If you press the [ TA ] button, emergency broadcast reception is cancelled. DXZ468RMP Switching the PTY display language You can select one of 4 languages ( English, German, Swedish or French ) for the PTY displayed in the display. -
Page 21: Cd/Mp3/Wma Mode Operations
1 second or longer, the mixed mode is switched between CD type or MP3/WMA type. The following indication appears in the title display when switching the track type to be played. Display when CD type track is selected: Display when MP3/WMA type track is selected: DXZ468RMP... - Page 22 1. Press the [ OPEN ] button to open the FLIP DOWN PANEL. DXZ468RMP Note: • If the FLIP DOWN PANEL will not open far enough, open it gently with your hand.
-
Page 23: Pausing Play
• The MP3 player decodes each file ID3 TAG ver 2 by default, if ID3 TAG ver 2 is unavailable, ID3 TAG ver 1 will be decoded. • UNICODE ID3 ( Chinese, Japanese and etc ) is not supported. NO TITLE” appears in the NO TAG” After 2 seconds DXZ468RMP... -
Page 24: Selecting A Track
“01” to “99”, depending on your CD writer. For example, a medium with the following folder/ file hierarchy is shown below. DXZ468RMP Example of a mediumʼs folder/file hierarchy Folder select This function allows you to select a folder containing MP3/WMA files and start playing from... -
Page 25: Top Function
1. Press and hold the [ RDM ] button for 1 second or longer to perform folder random play. “ RDM” appears in the display. • To cancel play 1. Press the operating button previously selected. DXZ468RMP... -
Page 26: Operations Common To Each Mode
3-3. Press the [ ] lever upward or down- ward to move the cursor. DXZ468RMP 3-4. Press the [ BND ] button to select a character. Each time you press the [ BND ] button, the character changes in the following orders:... -
Page 27: Dimmer Control
∗ The factory default setting is “MID”. 2-1. Select “ 3-1. Turn the [ ROTARY ] knob to select “LOW”, “MID” or “HIGH”. AMP CANCEL”. AUX/TEL”. AUX SENS”. DXZ468RMP... -
Page 28: Entering Titles
This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car. ∗ This function is not compatible with all cellular telephones. Contact your local authorized Clarion dealer for information on proper installation and compatibility. • Performing a system check This function allows you to perform a system check from the adjust mode when required. -
Page 29: Clearing Titles
4. Press and hold the [ BND ] button for 1 second or longer. All characters in the title disappear. 5. Press and hold the [ ] button for 2 seconds or longer to clear the title and cancel title input mode. Numbers/ DXZ468RMP... -
Page 30: Operations Of Accessories
1. Press the [ D ] button to display the title. 2. Each time you press the [ T ] button, the title display changes in the following order: DXZ468RMP Notes: • If the CD playing is not a CD-text CD or no user title has been input, “... -
Page 31: Tv Operations
TV tuner area setting changes. 1. Press the [ ADJ ] button to switch to the adjustment selection display. 2. Press the [ ] lever upward or downward to select “ TV AREA Push ENT 3. Press the [ ] button. ”. DXZ468RMP... -
Page 32: Digital Radio/Dab Operations
Sets the diver setting to ON. • OFF: Sets the diver setting to OFF. 4. Press the [ ADJ ] button to return to the previous mode. DXZ468RMP Digital Radio/DAB Operations DAB control function When a CeNET cable is used to connect a DAB ( DAH913 or DAH923 ) ( sold separately ) , all functions can be operated. -
Page 33: Manual Memory
To cancel the INFO standby mode, press and hold the [ TA ] button for 1 second or longer. • Information select This is a function for selecting INFORMATION ON or OFF in the Information interrupt mode. You can set ON up to 6 information items. DXZ468RMP... - Page 34 TA ( Traffic Announcement ) • • • Emergency broadcast • Switching the PTY and INFO display lan- guage • Volume setting of TA, INFO emergency broadcast ( ALARM ) and PTY DXZ468RMP ”, then press the ” Push ENT Weather...
-
Page 35: Troubleshooting
1. Turn down sound volume. Function can also be restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit operates). 2. If the sound is muted again, consult our service department. Measure DXZ468RMP... -
Page 36: Troubleshooting
Noise is generated or noise is mixed with sound. Sound is bad directly after power is turned on. Wrong filename DXZ468RMP Cause MP3/WMA files are Write MP3/WMA files onto the disc properly. absent in a disc. Files are not recognized Use MP3/WMA files encoded properly. -
Page 37: Error Displays
This is a failure of DVD mechanism and consult your store of purchase. Retry or replace with a non-scratched, non- warped-disc. Eject the disc then reload it properly. Set the correct Parental level. Eject the disc and replace correct region code disc. Measure Measure Measure DXZ468RMP... -
Page 38: Specifications
File Support: 512 Folder Name: Maximum 64 bytes File Name: Maximum 64 bytes DXZ468RMP Audio Maximum Power Output: 208 W ( 52 W X 4 ch ) Power Output: 4 X 25 W ( DIN 45324, + B = 14.4 V ) Bass Control Action ( 100 Hz ) : ±14 dB... - Page 41 Clarion Co., Ltd. All Rights Reserved. Copyright © 2006: Clarion Co., Ltd. PE-2800E Printed in Malaysia / Imprimé en Malaisie / Gedruckt in Malaysia / Stampato in Malaysia 280-8341-00 Gedrukt in Maleisi / Impreso en Malasia / Tryckt i Malaysia /...
