14 — Operating Instructions
the Main Screen (see
Figure 6). If multiple
units are networked,
the Main Screen is
only available via the
Master Load Bank.
Slave units will only
display the single-unit
monitoring
Figure 7).
(see
7. Make sure the fan is
spinning, check the
air intake for obstruc-
tions, confirm air flow and investigate any unusual noises.
8. Make sure no errors are registered in the "System" area in the
bottom left of the screen. If any errors are indicated, consult
the troubleshooting
page 20
table on
for information on to
resolve them.
9. Adjust the voltage
and frequency of the
generator.
10. Press the "KW to Ap-
ply" button and enter
the desired load (see
"Figure 8 Numer-
ic keypad" on page
14).
11. Press the
button.
12. Monitor and adjust load steps as needed.
While the load bank
is operating,
ing the Metering Line
Trends button in the
bottom right corner of
the screen will bring
up the Metering Line
Trends screen.
screen provides a graph
displaying voltage, cur-
rent, frequency,
screen

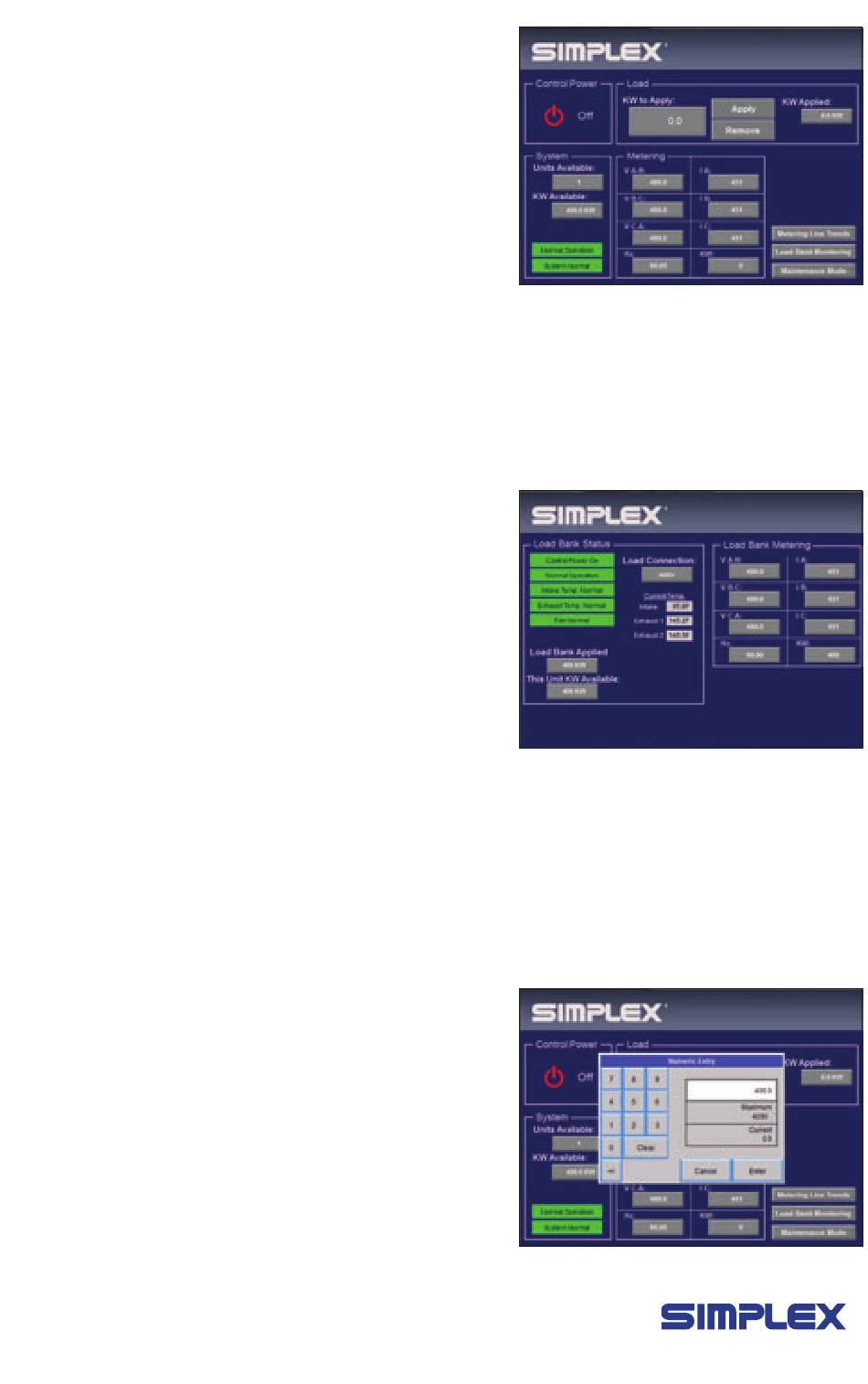

Figure 6 Main screen
Figure 7 Single-unit
monitoring screen
"Apply"
press-
This
Figure 8 Numeric keypad
and
®
