Ricoh IM CW2200 Setting Manual

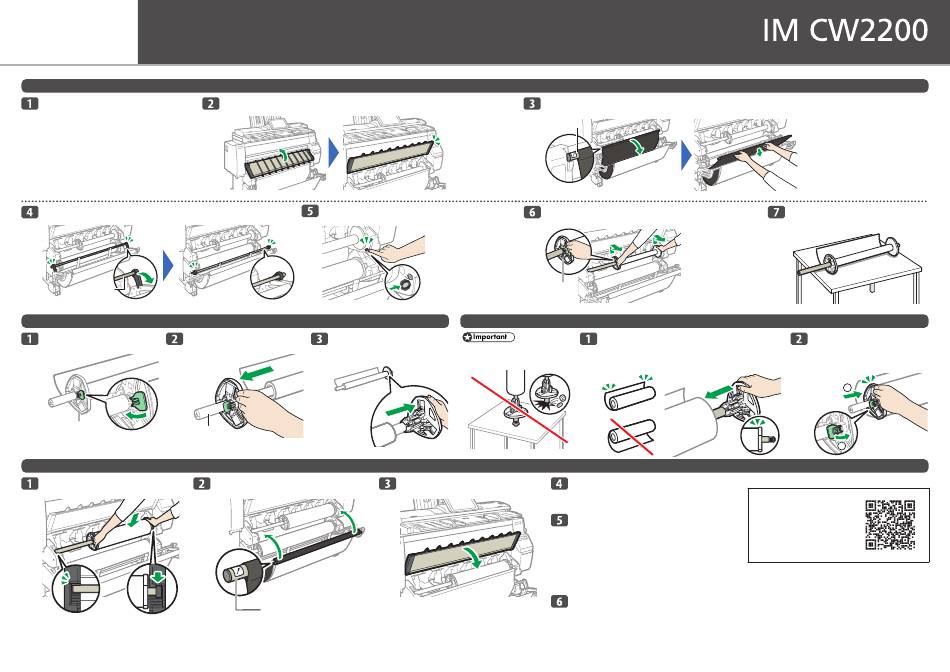

Setting Paper
For safe and correct use, be sure to read Safety Information separately provided before using the machine.
Removing the Paper Roll or Paper Tube (the Core of the Paper Roll that is left When Paper Runs Out) from the Machine
On the Home screen, press [Printer].
Make sure that "Ready" appears on the screen.
Pull bar B forward.
A space opens in front of the paper
input location.
Bar B
D0CWIA0025
Removing the Spool from the Paper Roll or Paper Tube
Raise the lock lever on the left Remove the left flange from the
flange. spool.
Flange
D0CWIA0030
Placing the Paper Roll on the Machine
Hold both flanges and place the paper
roll on the paper input location.
Be sure to place the spool so D0CWIA0036
that its right edge is covered
by the black shutter.
Lift up the paper input location cover until it clicks.
D0CWIA0021
Press down the rewind button on the right of the
paper input location for one second or more.
D0CWIA0026
Remove both the right flange
and spool from the paper roll
or paper tube.
Spool
D0CWIA0031
Lift bar A up and hook it.
D0CWIA0037
Bar A
Remove bar A, and then hook it in front of the output basket.
Lock the paper
Bar A
input location cover
while it is open.
D0CWIA0022
Hold the left and right flanges firmly, and then remove the
paper roll or paper tube from the paper input location.
After you release the button,
the paper is rewound
automatically.
If the paper is not rewound,
press the button again.
If there is no paper roll
loaded, proceed to "Inserting
Flange
the Spool into the Paper Roll".
D0CWIA0027
Inserting the Spool into the Paper Roll
• Do not insert the spool into the paper
roll while it is standing upright. Doing so
can damage the flange.
D0CWIA0032
D0CWIA0033
Lower the paper input location cover. When a message appears that confirms that
bar A has returned to the correct position,
press [Exit].
Confirm that the paper type and thickness
of paper you loaded are the same as those
displayed on the screen, and then press
[Start Feed].
If the paper type and thickness are different from those
displayed, press [Change Settings]. Select the proper
items according to the paper type and thickness you
want to use, and then press [OK].
Make sure that the size of paper roll you
D0CWIA0038
loaded is displayed correctly and "Ready"
appears on the [Printer] screen.
D0CWIA0023
D0CWIA0028
Insert the spool into the paper roll for replacement.
Place the paper roll horizontally, and then slowly insert the
flange with the spool into the paper roll from its right, until the
flange touches the roll paper.
D0CWIA0042 D0CWIA0034
You can also confirm how to
load a paper roll into the
machine by watching the
video.
You can see the
paper input
location.
D0CWIA0024
Place the paper roll or paper tube on
a flat surface.
D0CWIA0029
Insert the left flange into the
spool slowly so as not to damage
the flange, and then lower the
lock lever on the left flange.
1
2
D0CWIA0035
