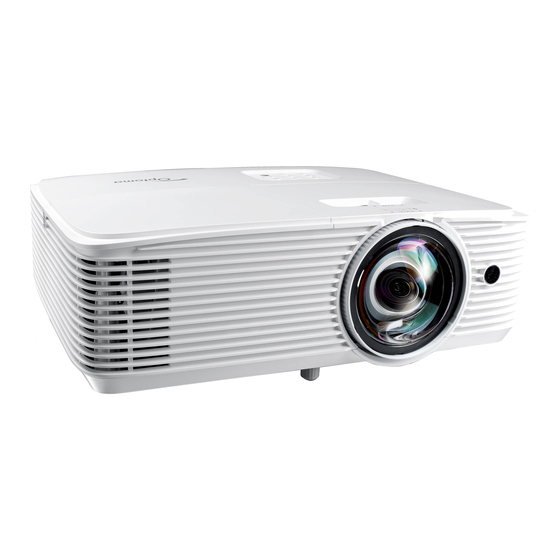

Optoma W309ST User Manual
  1. Manuals
  2. Brands
  3. Optoma Manuals
  4. Projector
  5. W309ST
  6. User manual

Optoma W309ST User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DLP
Projector
®
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma W309ST

Summary of Contents for Optoma W309ST

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 3D Safety Information ........................ 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................7 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION ................8 Package Overview........................
  • Page 3 Image size and projection distance ..................61 Projector dimensions and ceiling mount installation ..............63 IR remote control 1 codes ......................64 IR remote control 2 codes ......................66 Troubleshooting ........................68 Warning indicators ........................70 Specifications ........................... 72 Optoma global offices ....................... 73 English...

  • Page 4: Safety

    SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: 3D Safety Information

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: Copyright

    ‡ If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps;...

  • Page 7: Fcc

    This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Introduction

    INTRODUCTION Package Overview Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region. The warranty card is only supplied in some specific regions.

  • Page 9: Product Overview

    INTRODUCTION Product Overview Notee: Keep a minimum distance of 20 cm between the “inlet” and “outlet” labels. Item Item IR Receiver Ventilation (inlet) Keypad Lamp Cover Lens Cap Ventilation (outlet) Tilt-Adjustment Foot 10. Kensington Lock Port Lens 11. Power Socket Focus Lever 12.

  • Page 10: Connections

    INTRODUCTION Connections Type 1 (8 IO) Full 3D Type 2 (12 IO) HDMI 1 HDMI AUDIO IN AUDIO OUT VGA IN 1 RJ-45 VGA IN 2 VIDEO USB POWER OUT Full 3D 5V 1.5 MIC IN VGA OUT RS232 English...
  • Page 11 INTRODUCTION Item Type 1 (8 IO) Type 2 (12 IO) HDMI / HDMI 1 Connector √ √ USB Power Out (5V/1.5A) Connector / MOUSE / √ √ SERVICE Connector VGA IN / VGA IN 1 Connector √ √ Video Connector √...

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item On/Standby LED IR Receiver Lamp LED Enter Temp LED Keystone Correction Information 10. Menu Re-Sync 11. Source Four Directional Select Keys 12 Power English...

  • Page 13: Remote Control 1

    INTRODUCTION Remote control 1 Item Item Power On / Off 10. IR LED Indicator Keystone + / - 11. Freeze AV Mute 12. Aspect Ratio Volume - / + Mute Enter 14. Four Directional Select Keys Menu 15. 3D HDMI 16.

  • Page 14: Remote Control 2

    INTRODUCTION Remote control 2 Power Switch Freeze Enter Page- Laser Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Item Item Power On / Off 15. Brightness Mode Freeze 16. Mouse On / Off Display Blank / Audio Mute 17.

  • Page 15: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...
  • Page 16 SETUP AND INSTALLATION Projector installation notice ‡ Place the projector in a horizontal position. The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.

  • Page 17: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Type 1 (8 IO) Full 3D MOLEX English...
  • Page 18 SETUP AND INSTALLATION Type 2 (12 IO) HDMI 1 HDMI AUDIO OUT AUDIO IN RJ-45 VGA IN 1 VGA IN 2 VIDEO USB POWER OUT Full 3D 5V 1.5 MIC IN VGA OUT RS232 MOLEX English...
  • Page 19 SETUP AND INSTALLATION Item Type 1 (8 IO) Type 2 (12 IO) HDMI Cable √ √ HDMI Stick √ √ USB Power Cable √ √ VGA In Cable √ √ RCA Component Cable √ √ Video Cable √ √ Audio In Cable √...

  • Page 20: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Focus...
  • Page 21 SETUP AND INSTALLATION Installing / replacing the batteries Press firmly and slide the battery cover off. Install new battery into the compartment. Remove the old battery and install new one (CR2025). Ensure that the side with a “+” is facing Put the cover back.
  • Page 22 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s top IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (~ 20 feet).

  • Page 23: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Powering on Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red. Turn on the projector by pressing the " " either on the projector keypad or the remote control. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing blue.

  • Page 24: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

  • Page 25: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press on the remote control or the projector keyboard.
  • Page 26 USING THE PROJECTOR Type 2 (12 IO) Sub Menu Settings Display Image Settings Aspect Ratio Main Menu Edge Mask Zoom Image Shift Keystone Select Exit Enter Navigation guide English...

  • Page 27: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation Bright Cinema Game Display Mode sRGB DICOM SIM. User Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink Gray Brightness...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Cancel [Default] Reset Color Matching Exit Red Gain -50~50 Green Gain -50~50 Blue Gain -50~50 Red Bias -50~50 RGB Gain/Bias Green Bias -50~50 Blue Bias -50~50 Cancel [Default]...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto [Default] 3D Format Top and Bottom Frame Sequential 3D Sync Invert Off [Default] 16:9 16:10 [WXGA model] Aspect Ratio Display LBX [except XGA model] Native Auto Edge Mask...
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Cancel [Default] Filter Settings Filter Reset Off [Default] Direct Power On Off [Default] Signal Power On Auto Power Off 0~180 (5 min increments) (min) [Default: 20] 0~990 (30 min increments)
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu IR Function HDMI 2* VGA 2* Test Pattern LAN* Brightness User1 Contrast [depends on Sleep Timer [Default] model] Color Matching [(*) for Type 2 (12 IO) only] Color Temperature Gamma...
  • Page 32 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu User3 Projection Remote [depends on Settings Lamp Settings model] [depends on Zoom [(*) for Type 2 remote] (12 IO) only] Freeze Projector ID 0~99 English [Default] Deutsch...
  • Page 33 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Menu Settings Menu Timer 5sec 10sec [Default] Off [Default] Auto Source HDMI or HDMI1* HDMI2* Input Source VGA or VGA1* [(*) for Type 2 (12 IO) only] VGA2* Video...
  • Page 34 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Network Status (read only) MAC Address (read only) Off [Default] DHCP IP Address 192.168.0.100 [Default] Subnet Mask 255.255.255.0 [Default] Gateway 192.168.0.254 [Default] 192.168.0.51 [Default] Reset Crestron On [Default]...
  • Page 35 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Brightness Mode System Info FW Version (Type 2 (12 IO) only) Notee: The available menu options vary depending on the model type. English...

  • Page 36: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Presentation: This mode is suitable for showing PowerPoint presentations when the projector is connected to the PC. ‡...
  • Page 37 USING THE PROJECTOR Color Settings Configure the color settings. ‡ BrilliantColor : This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture. ‡ Color Temperature: Select a color temperature from Warm, Medium, or Cool. ‡...

  • Page 38: Display 3D Menu

    USING THE PROJECTOR Signal Adjust the signal options. ‡ Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings. ‡ Frequency: Change the display data frequency to match the frequency of your computer’s graphic card.

  • Page 39: Display Aspect Ratio Menu

    USING THE PROJECTOR 3D Sync Invert Use this option to enable/disable the 3D sync invert function. Display aspect ratio menu Aspect Ratio Select the aspect ratio of the displayed image between the following options: 4e:3: This format is for 4:3 input sources. ‡...
  • Page 40 USING THE PROJECTOR WXGA auto mapping rule (screen type 16e:10): Input resolution Auto/Scale Auto H-resolution V-resolution 1280 1066 1066 1024 1066 1280 1024 1066 1400 1050 1066 1600 1200 1066 1280 1280 Wide Laptop 1280 1280 1280 1280 1280 SDTV 1280 1280 1280...

  • Page 41: Display Edge Mask Menu

    USING THE PROJECTOR Input resolution Auto/Scale Auto H-resolution V-resolution 1280 1280 1280 HDTV 1920 1080 1280 XGA scaling table: Source 480i/p 576i/p 1080i/p 720p Scale to 1024x768. 16x9 Scale to 1024x576. Native mode No scaling will be made; the resolution is dependent on which input source and is then displayed.

  • Page 42: Display Keystone Menu

    USING THE PROJECTOR Display keystone menu Keystone Adjust the image distortion caused by tilting the projector. Audio menu Audio mute menu Mute Use this option to temporarily turn off the sound. ‡ One: Choose “On” to turn mute on. Off: Choose “Off” to turn mute off. ‡...

  • Page 43: Setup Projection Menu

    USING THE PROJECTOR Setup menu Setup projection menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Setup screen type menu Screen Type (for WXGA model only) Choose the screen type from 16:9 and 16:10. Setup lamp settings menu Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed.
  • Page 44 USING THE PROJECTOR Auto Power Off (min.) Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes). Sleep Timer (min.) Configure the sleep timer.

  • Page 45: Setup Security Menu

    USING THE PROJECTOR Setup security menu Security Enable this function to prompt for a password before using the projector. ‡ One: Choose “On” to use security verification when the turning on the projector. ‡ Off: Choose “Off” to be able to switch on the projector without password verification. Security Timer Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used.

  • Page 46: Setup Test Pattern Menu

    USING THE PROJECTOR Setup test pattern menu Test Pattern Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off). Setup remote settings menu IR Function Set the IR function setting. ‡ One: Choose “On”, the projector can be operated by the remote control from top IR receiver. ‡...

  • Page 47: Setup Reset Menu

    USING THE PROJECTOR Input Name Use to rename the input function for easier identification. The available options include HDMI1, HDMI2, VGA1, VGA2, and Video. Notee: The available menu options vary depending on the model type. High Altitude When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin. Display Mode Lock Choose “On”...

  • Page 48: Network Lan Menu

    USING THE PROJECTOR Network menu Notee: This menu is only applicable for Type 2 (12 I/O) model. Network LAN menu Network Status Display the network connection status (read-only). MAC Address Display the MAC address (read-only). DHCP Use this option to enable or disable the DHCP function. ‡...

  • Page 49: Network Control Menu

    USING THE PROJECTOR Making a direct connection from your computer to the projector* Turn “Off” the DHCP option on the projector. Configure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”). Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector.

  • Page 50: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 51 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). HDMI 1 HDMI AUDIO OUT AUDIO IN VGA IN 1 RJ-45 VGA IN 2 VIDEO USB POWER OUT Full 3D 5V 1.5 MIC IN VGA OUT RS232...
  • Page 52 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ±...
  • Page 53 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Information page Main page Tool page Contact IT helpdesk English...
  • Page 54 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 55: Info Menu

    USING THE PROJECTOR Info menu Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Power Mode (Standby) ‡ Lamp Hours ‡ Network Status (*) ‡...

  • Page 56: Maintenance

    MAINTENANCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
  • Page 57 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord. Unscrew the screw on the cover.

  • Page 58: Installing And Cleaning The Dust Filter

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Notee: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 59: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital compatibility B0/Established B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing Timing 720x400 @ 70Hz 1440x900 @60Hz Native timing: 640x480p @ 60Hz 720x480p @ 60Hz 640x480 @ 60Hz 1024x768 @120Hz XGA: 1024x768 @ 60Hz 720x480p @ 60Hz 1280x720p @ 60Hz 640x480 @ 67Hz 1280x800 @60Hz...
  • Page 60 If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode. ‡ Support NVIDIA 3DTV Play if there is no patent fee from Optoma. 1080i@25hz and 720p@50hz will run in 100 hz; other 3D timing will run in 120hz.

  • Page 61: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Desired Image Size Projection Desired Image Size Distance (D) Offset (Hd) Diagonal Width Height Wide Tele inch inch inch feet feet feet 0.81 0.65 25.60 0.49 19.20 1.31 0.07 2.76 1.27 1.02 40.00 0.76 30.00 1.97...
  • Page 62 ADDITIONAL INFORMATION 5.2 cm English...

  • Page 63: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 64: Ir Remote Control 1 Codes

    ADDITIONAL INFORMATION IR remote control 1 codes Key legend Description Key code Power Press to turn on / off the projector. Freeze Press to freeze the projector image. Aspect Press to change aspect ratio of a displayed image. AV mute Press to turn off/ on projector built-in speaker ‡...
  • Page 65 ADDITIONAL INFORMATION Key legend Description Key code Press to choose VGA source. Video Press to choose video source. Source Press to select an input signal. Press to automatically adjust the picture brightness to give an Brightness mode optimum contrast performance. ReSync Automatically synchronize the projector to the input source.

  • Page 66: Ir Remote Control 2 Codes

    ADDITIONAL INFORMATION IR remote control 2 codes Power Switch Freeze Enter Page- Laser Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Printing-key Description code definition Power Power on/off Press to turn on / off the projector. Switch Switch Press to switch the USB mouse on / off.
  • Page 67 ADDITIONAL INFORMATION Printing-key Description code definition Enter Enter Confirm your item selection. Enter Page - Page- Press to page down. Laser Laser Use as laser pointer. Page + Page+ Press to page up. Keystone+ Press to adjust image distortion caused by tilting the Keystone projector.

  • Page 68: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 69 ADDITIONAL INFORMATION Two images, side-by-side format ‡ Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side. Image does not display in 3D ‡ Check if the battery of 3D glasses is drained. ‡ Check if the 3D glasses is turned on.

  • Page 70: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red. ‡ "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated.
  • Page 71 ADDITIONAL INFORMATION ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

  • Page 72: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Native resolution XGA / WXGA Maximum resolution 1024x768 / 1280x800 Lens Manual focus ‡ Adjustable from 31.9” to 303.09” (Mechanical Focus range) (Diagonal) for XGA Image size (diagonal) ‡ Adjustable from 35.64” to 302.98” (Mechanical Focus range) (Diagonal) for WXGA ‡...

  • Page 73: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 47697 Westinghouse Drive, 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 74 *36.7DR01G001-A* P/N:36.7DR01G001-A www.optoma.com...

This manual is also suitable for:

W319stH117stX309st
