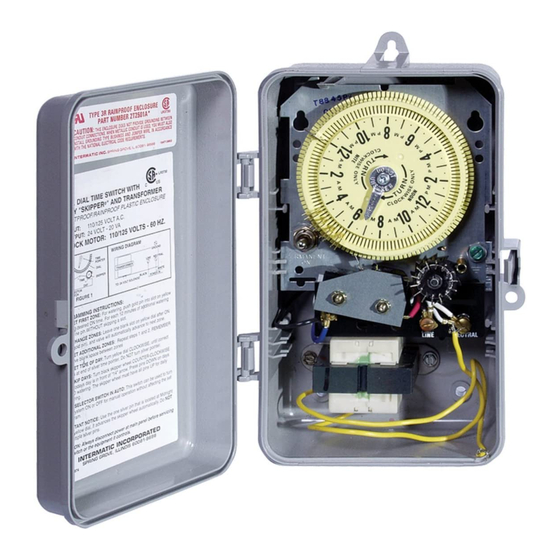

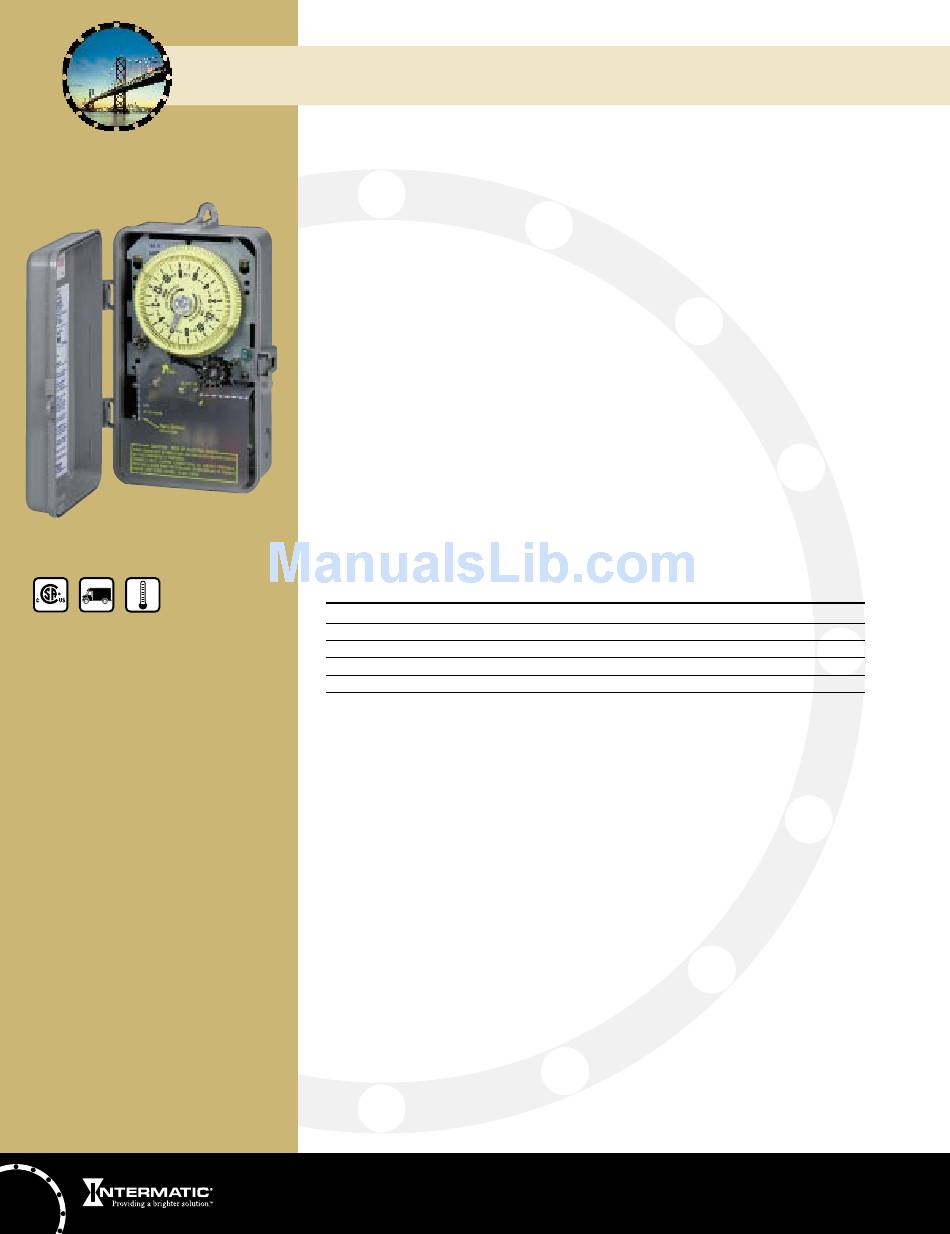

Sprinkler/Irrigation Timer with 14-Day Skipper
These irrigation timers permit 1 to 60 "ON" operations every 24 hours . This series is designed for water
metering in increments of 12 minutes to 20 hours and 45 minutes for maximum conservation of precious water
resources . The 14-day skipper feature permits irrigation to be omitted on selected day(s) and also provides
for "every other" day operation . The "ON/OFF/AUTOMATIC" switch allows shutdown during rainy days or
extended watering during dry periods without disturbing the automatic cycle set on dial .

Applications

• Multi-Station Hydro Indexing Valves
• Irrigation Control

Specifications

Case – Plastic NEMA 3R case . Cases include hanging bracket plus two mounting holes on back below switch for
mounting .
Knockouts – Combination 1/2"-3/4" nominal knockouts, one on back and each side of case, and two on bottom .
Switch Rating –
T8805P101C – 15 Amps, 125 VAC, 1/2 HP, SPST .
R8806P101C – 25 Amps, 208-277 VAC, 2 HP, DPST relay .
R8815P101C – 25 Amps, 120 VAC, 1-1/2 HP, DPST relay .
R8816P101C – 25 Amps, 208-277 VAC, 3 HP, DPST relay .
T8845PV – 125 VAC, SPST, output 24 Volts - 20VA
Model # Switch
T8805P101C SPST
R8806P101C DPST
R8815P101C* DPST
R8816P101C* DPST
T8845PV** SPST
* Includes rain sensor input terminals- rain sensor not supplied.
** Includes 24 volt - 20 VA transformer.
For additional trippers (12 per pack), order No. 156T1950A.
For additional skipper pins (14 per pack), order No. 156T1954A.
ENERGY CONTROLS
WEATHERPROOF •
• Greenhouses
• Feeders
Motor Voltage 60 Hz Output Voltage 60 Hz
125 ––
208-277 —
120 —
208-277 ––
125 24
