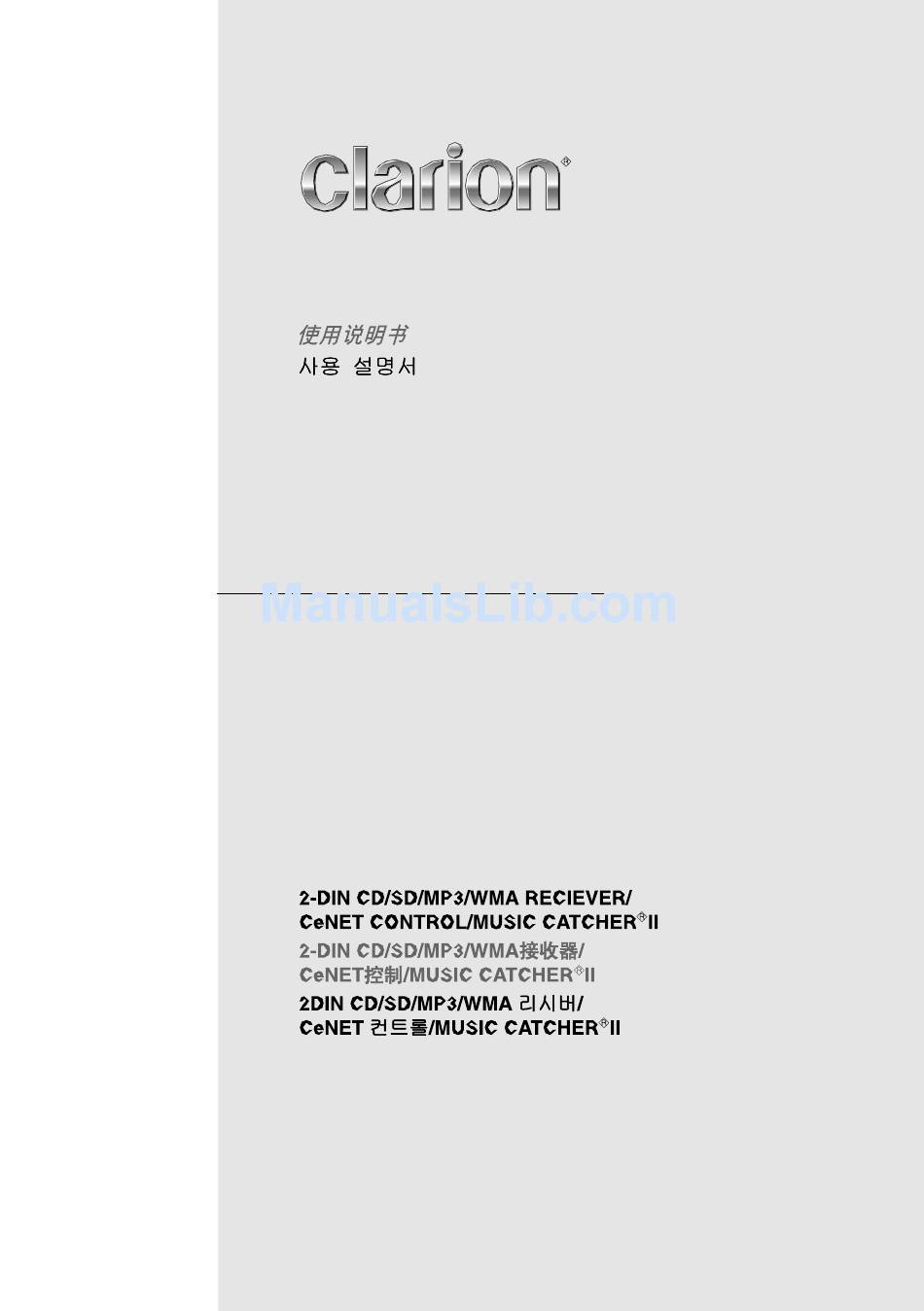

  • Page 1 Owner’s manual DFZ667MC...

  • Page 2: Table Of Contents

    Thank you for purchasing this Clarion product. * Please read this owner’s manual in its entirety before operating this equipment. * After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). * This manual includes the operating procedures of the CD changer and TV tuner connected via the CeNET cable.

  • Page 3: Precautions

    2. PRECAUTIONS 1. When the inside of the car is very cold and the player is used soon after switching on the heater moisture may form on the disc or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth.

  • Page 4: Handling Compact Discs/Sd Memory Card

    Handling Compact Discs/SD memory card Compact Discs Use only compact discs bearing the mark. Do not play heart-shaped, octagonal, or other specially shaped compact discs. Some CDs recorded in CD-R/CD-RW mode may not be usable. Handling • Compared to ordinary music CDs, CD-R and CD-RW discs are both easily affected by high temperature and humidity and some of CD-R and CD-RW discs may not be played.

  • Page 5: Controls

    3. CONTROLS / [BND] [COLOR] [SRC] IR-Receiver [RESET] [DIGITAL Z-EHCR] [SCN] [RPT] [RDM] [DIRECT] CD SLOT [A-M] [ROTARY] SD MEMORY CARD SLOT [REC] [TITLE] [ERASE] [UP] [DOWN] [DIRECT] [ISR]...

  • Page 6: Nomenclature

    4. NOMENCLATURE Notes: • Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). • MC is the abbreviation of MUSIC CATCHER II. • SD is the abbreviation of SD memory card. Names of the Buttons and their Functions CD SLOT •...
  • Page 7 Names of the Buttons and their Functions [RESET] button • Press and hold the button for 2 seconds or longer to clear frequencies of TV/radio stations, titles, etc, stored in memory. • Press and hold the button for 2 seconds or longer when Anti-theft function is out of order.

  • Page 8: Major Button Operations When External Equipment Is Connected To This Unit

    Major Button Operations When External Equipment is Connected to This Unit When the CD/DVD changer is connected * For details, see the section “CD Changer Operations” (page 27). For the DVD changer, refer to the Owner’s Manual provided with the DVD changer.

  • Page 9: Display Items

    Display Items Operation status indication : Random indication : Repeat indication : Scan indication : All indication : LPO indication : MP3 indication : WMA indication : Manual indication : Stereo indication Display Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature.

  • Page 10: Remote Control

    5. REMOTE CONTROL Inserting the Battery 1 Turn over the remote control unit and slide the cover in the direction indicated by the arrow in the illustration. 2 Insert the battery (CR2025) into the insertion guides, with the printed side (+) facing upwards.

  • Page 11: Functions Of Remote Control Unit Buttons

    Functions of Remote Control Unit Buttons Radio [SRC] Switch among radio, CD/MP3/WMA, MC, SD, CD changer, DVD changer, TV and [BND] Switch reception band [E] , [e] Increase and decrease volume (in all modes) [R] , Move preset channels up and down No function [MUTE]...

  • Page 12: Operations

    6. OPERATIONS Basic Operations CAUTION Be sure to lower the volume before switching off the unit power or the ignition key. The unit remembers its last volume setting. If you switch the power off with the volume up, when you switch the power back on, the sudden loud volume may hurt your hearing and damage the unit.
  • Page 13 Basic Operations Setting the DZE (Digital Z-Enhancer) This unit is provided with 3 types of sound tone effects stored in memory. Select the one you prefer. * The factory default setting is “DZE-OFF”. Each time you press the [DIGITAL Z-EHCR] button, the tone effect changes in the following order: “DZE-1”...

  • Page 14: Adjusting The Balance

    Basic Operations Adjusting the treble (Gain, Frequency) This adjustment can be performed when the DZE is set to “DZE-OFF”. 1. Press the [A-M] button and select “TREBLE”. 2. Turn the [ROTARY] knob clockwise to emphasize the treble; turning it counterclockwise attenuates the treble. * The factory default setting is “T<GAIN 0>”...

  • Page 15: Radio Operations

    Radio Operations Listening to the radio 1. Press the [SRC] button and select the radio mode. The frequency appears in the display. 2. Press the [BND] button and select the radio band. Each time the button is pressed, the radio reception band changes in the following order: “FM1”...
  • Page 16 Radio Operations Instant station recall (ISR) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button. The ISR function even operates with the unit in other modes. ●ISR memory 1.

  • Page 17: Cd/Mp3/Wma, Sd Memory Card, And Music Catcher Ii (Playing) Operations

    CD/MP3/WMA, SD memory card, and MUSIC CATCHER II (Playing) Operations Playing Operations You can play back CD tracks, MP3/WMA type tracks, and tracks on SD memory card or stored in MUSIC CATCHER II memory with the same operations. MP3/WMA What is MP3? MP3 is an audio compression method and classified into audio layer 3 of MPEG standards.
  • Page 18 CD/MP3/WMA, SD memory card, and MUSIC CATCHER II (Playing) Operations ●Number of files or folders • Up to 255 files can be recognized per folder. Up to 512 files can be played. • Tracks are played in the order that they were recorded onto a disc (Tracks might not always be played in the order displayed on the PC).

  • Page 19: Folder Select

    CD/MP3/WMA, SD memory card, and MUSIC CATCHER II (Playing) Operations Listening to a disc or a SD memory card already loaded in the unit 1. Press the [SRC] button to select the CD/MP3/ WMA or SD mode. When the unit enters the CD/MP3/WMA or SD mode, play starts automatically.

  • Page 20: Repeat Play

    CD/MP3/WMA, SD memory card, and MUSIC CATCHER II (Playing) Operations Scan play This function allows you to locate and play the first 10 seconds of all the tracks recorded on a CD or a SD memory card. 1. Press the [SCN] button. * Scan play starts from the next track after the track currently being played back.

  • Page 21: Music Catcher Ii (Recording/Erasing) Operations

    MUSIC CATCHER II (Recording/Erasing) Operations Notes on recording using MUSIC CATCHER II • MUSIC CATCHER II provides recording feature at 4 times speed for audio CDs or CD- • For CD-RWs, only double-speed recording is available. • Recording using MUSIC CATCHER II is available only for audio CDs (including CD-R, CD-RW).
  • Page 22 MUSIC CATCHER II (Recording/Erasing) Operations Recording operation (REC function) Recording using MUSIC CATCHER II is performed in the CD/MP3/WMA mode and the following 2 recording modes are available: • “TRACK REC”: record only one track currently being played back • “DISC REC” : record all tracks on the CD ●TRACK REC 1.

  • Page 23: Common Operations

    Common Operations CATS function (Clarion Anti- Theft System) This unit can deter theft by checking registered optional PIN (Personal Identification Number). How to register/delete PIN Refer to the subsection “How to register/delete PIN” (page 26) in the section “Adjust Mode”.

  • Page 24: Setting The Clock

    * Up to 30 characters can be entered. * The factory default setting is “Welcome to Clarion”. 1. Press and hold the [D] button for 1 second or longer to switch to the adjust mode. 2. Press the [R] or [F] button to select “MSG INPUT...

  • Page 25: Dimmer Control

    Common Operations Setting for scroll speed You can adjust scroll speed between SPEED 1 (maximum) and SPEED 6 (minimum). * The factory default setting is “SPEED 2”. 1. Press and hold the [D] button for 1second or longer to switch to the adjust mode. 2.
  • Page 26 This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car. * This function is not compatible with all cellular telephones. Contact your local authorized Clarion dealer for information on proper installation and compatibility. AUX function...

  • Page 27: Operations Of Accessories

    7. OPERATIONS OF ACCESSORIES CD Changer Operations CD changer functions When an optional CD changer is connected through the CeNET cable, this unit controls all CD changer functions. This unit can control a total of 2 changers. 1. Press the [SRC] button and select the CD changer mode to start play.
  • Page 28 CD Changer Operations Disc repeat play After all the tracks on the current disc have been played, disc repeat play automatically replays the current disc over from the first track. This function continues automatically until it is cancelled. 1. Press and hold the [RPT] button for 1 second or longer.

  • Page 29: Tv Operations

    TV Operations TV tuner functions When an optional TV tuner is connected through the CeNET cable, this unit controls all TV tuner functions. To watch TV requires a TV tuner and monitor. Watching a TV 1. Press the [SRC] button and select the TV mode.

  • Page 30: Preset Scan

    TV Operations Auto store Auto store selects 6 TV stations automatically and stores each one into preset memory. If there are not 6 stations with good reception, stations previously stored in memory remain and only the strong stations are stored into memory. 1.

  • Page 31: Ipod Operations

    iPod Operations iPod functions Connecting the iPod CeNET Controller allows you to operate your iPod from the operation panel of this unit. This unit has the iPod MENU mode which allows you to operate by the same feeling as operating on the iPod. In the iPod mode, this system considers all the tracks stored in the iPod as one album when selecting tracks or playing them back.
  • Page 32 iPod Operations Repeat play This repeat playback of the track currently played back. It corresponds to the iPod operation of selecting “Settings” ➜ “Repeat (one)” from the menu of the iPod. 1. Press the [RPT] button. 2. To cancel the repeat playback, press the [RPT] button again.

  • Page 33: Trouble Shooting

    Press and hold the [RESET] button for 2 seconds or longer with a thin rod If the situation is not improved, contact your local authorized Clarion dealer Press and hold the [CDo] button for 3 seconds or longer The foreign matter is forcibly ejected...
  • Page 34 Problem Sound is bad Water droplets may form on the directly after power internal lens when the car is is turned on parked in a humid place Wrong filename File system is not correct Play list play is not File name or extension is not performed correct Cannot record any...

  • Page 35: Error Displays

    9. ERROR DISPLAYS If an error occurs, one of the following displays is displayed. Take the measures described below to eliminate the problem. Error Display ERROR 2 A DISC is caught inside the CD deck and is not ejected ERROR 3 A DISC cannot be played due to scratches, etc ERROR 6...

  • Page 36: Specifications

    10.SPECIFICATIONS FM Tuner Frequency Range: 87.0 MHz to 108.0 MHz Usable Sensitivity: 9 dBf 50dB Quieting Sensitivity: 15 dBf Alternate Channel Selectivity: 70 dB Stereo Separation (1 kHz): 35 dB Frequency Response (±3 dB): 30 Hz to 15 kHz AM Tuner Frequency Range: 531 kHz to 1629 kHz Usable Sensitivity:...
