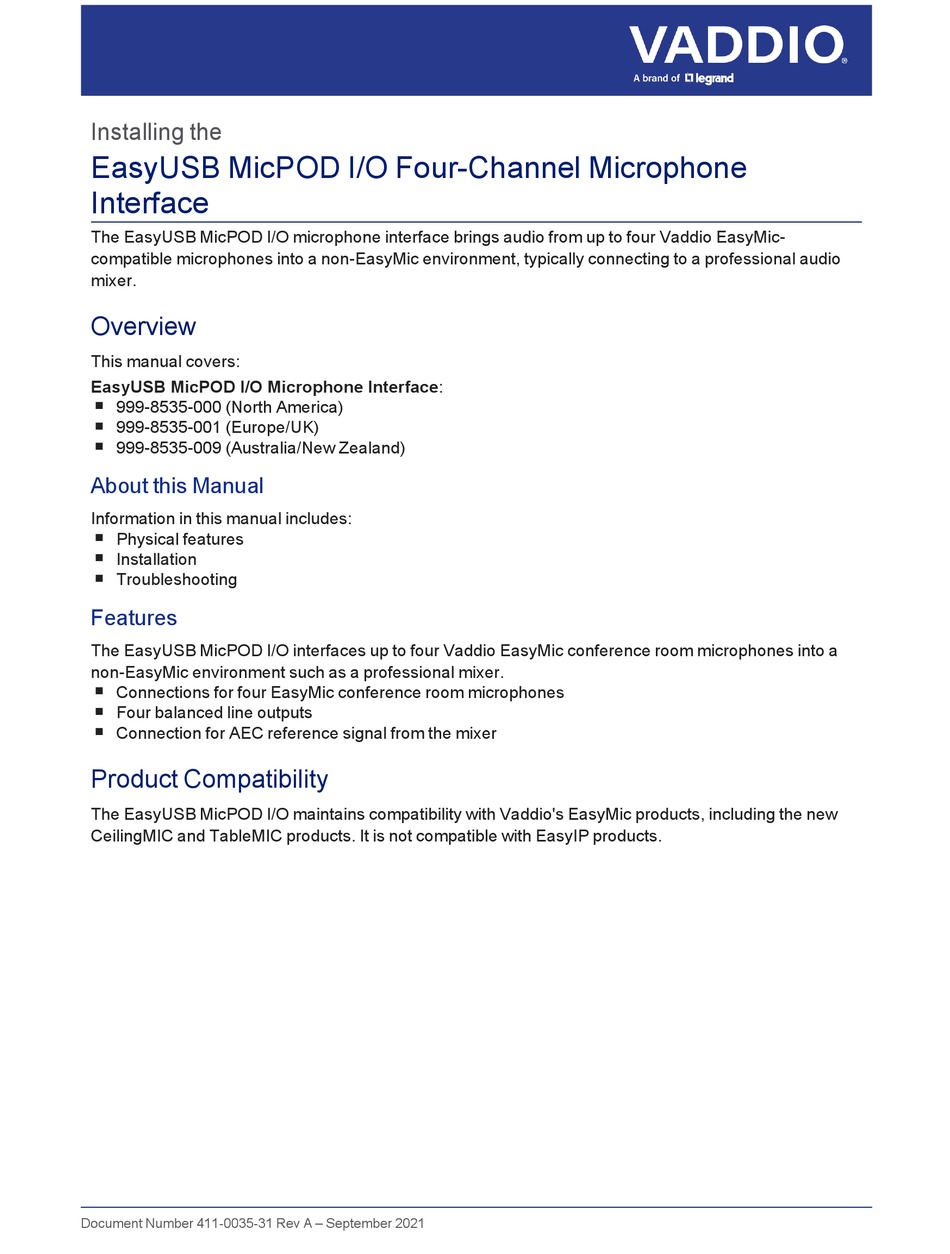

Installing the
EasyUSB MicPOD I/O Four-Channel Microphone
Interface
The EasyUSB MicPOD I/O microphone interface brings audio from up to four Vaddio EasyMic-
compatible microphones into a non-EasyMic environment, typically connecting to a professional audio
mixer.
Overview
This manual covers:
EasyUSB MicPOD I/O Microphone Interface:
999-8535-000 (North America)
n
n
999-8535-001 (Europe/UK)
n
999-8535-009 (Australia/New Zealand)
About this Manual
Information in this manual includes:
Physical features
n
Installation
n
Troubleshooting
n
Features
The EasyUSB MicPOD I/O interfaces up to four Vaddio EasyMic conference room microphones into a
non-EasyMic environment such as a professional mixer.
Connections for four EasyMic conference room microphones
n
Four balanced line outputs
n
n
Connection for AEC reference signal from the mixer
Product Compatibility
The EasyUSB MicPOD I/O maintains compatibility with Vaddio's EasyMic products, including the new
CeilingMIC and TableMIC products. It is not compatible with EasyIP products.
Document Number 411-0035-31 Rev A – September 2021
