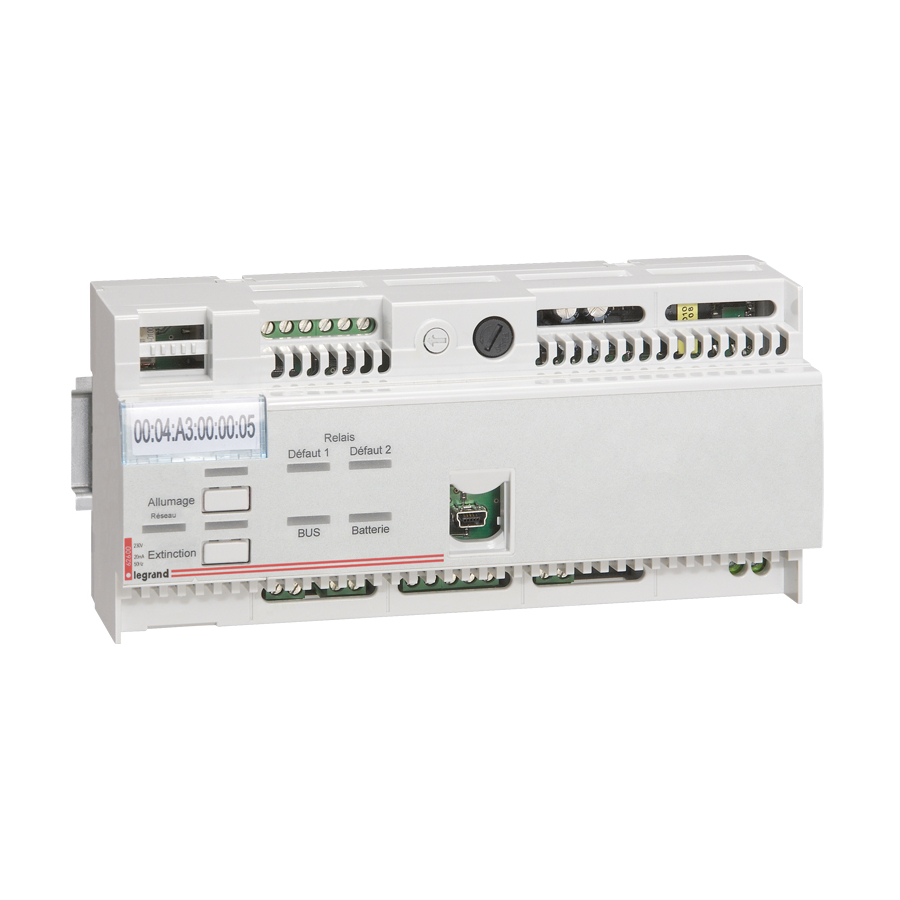

LEGRAND 0 626 00 Quick Start Manual

Interface + configuration software
0 626 00
Important:
According to the European directive 91/157/EEC dated 18 March 1991, the batteries in this interface, which contain cadmium, may be dangerous for
the environment.
To use this interface, you must first configure it with the configuration programme delivered on the USB-stick and using guide LE05022XX.

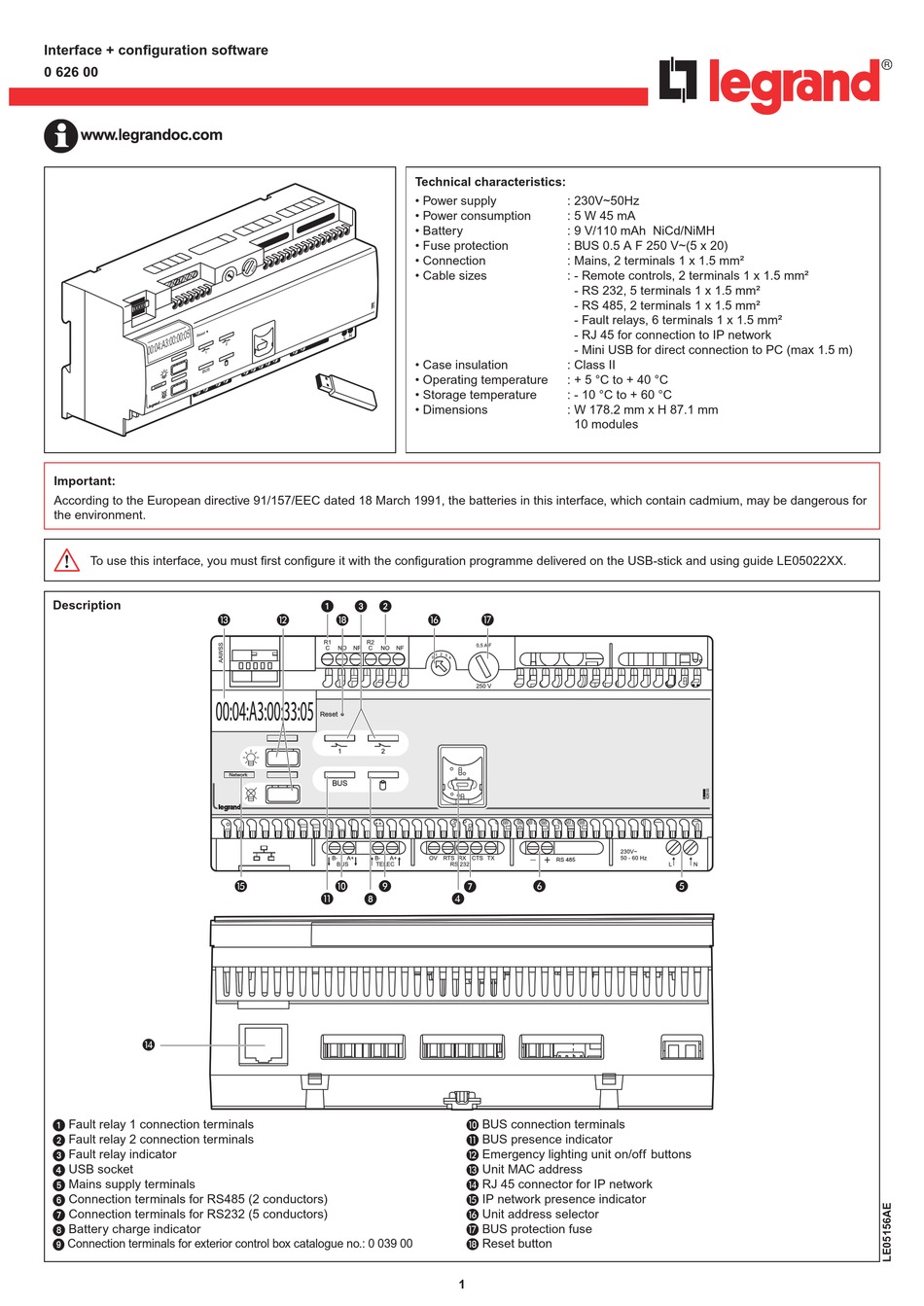

Description


1 Fault relay 1 connection terminals
2 Fault relay 2 connection terminals
3 Fault relay indicator
4 USB socket
5 Mains supply terminals
6 Connection terminals for RS485 (2 conductors)
 Connection terminals for RS232 (5 conductors)
 Battery charge indicator
9 Connection terminals for exterior control box catalogue no.: 0 039 00
1 3 2
 
Reset
1 2
Network
BUS
  
 
Technical characteristics:
• Power supply : 230V~50Hz
• Power consumption : 5 W 45 mA
• Battery : 9 V/110 mAh NiCd/NiMH
• Fuse protection : BUS 0.5 A F 250 V~(5 x 20)
• Connection : Mains, 2 terminals 1 x 1.5 mm²
• Cable sizes : - Remote controls, 2 terminals 1 x 1.5 mm²
- RS 232, 5 terminals 1 x 1.5 mm²
- RS 485, 2 terminals 1 x 1.5 mm²
- Fault relays, 6 terminals 1 x 1.5 mm²
- RJ 45 for connection to IP network
- Mini USB for direct connection to PC (max 1.5 m)
• Case insulation : Class II
• Operating temperature : + 5 °C to + 40 °C
• Storage temperature : - 10 °C to + 60 °C
• Dimensions : W 178.2 mm x H 87.1 mm
10 modules
 
RS 485
 

 BUS connection terminals
 BUS presence indicator
 Emergency lighting unit on/off buttons
 Unit MAC address
 RJ 45 connector for IP network
 IP network presence indicator
 Unit address selector
 BUS protection fuse
 Reset button
