by Stevens Industries, Inc.
704 West Main St.
Teutopolis, IL 62467
P: 800.350.3270
P: 217-857-7100 • F: 217-857-7101
www.totmate.com
TM2185R

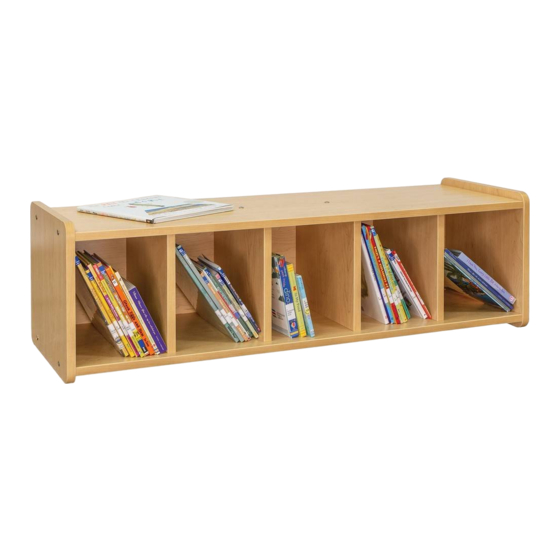

Book Bench Cubbie
Be sure to keep all parts supported
during assembly to avoid damage.
Do not over-tighten screws or it will
damage the pre-drilled holes;
snug fit is adequate.
HARDWARE / TOOLS INCLUDED
Confirmat Bolt (5)
(Screw Conn HxDc Ni 7mmx50mm)
Hex Wrench
3594.TM2185.9/25/18
Please unpack and assemble in an area away from children's activities. Remove all tools
and excess materials from work area after assembly of unit is complete. Dispose of pallet
and packaging materials in an environmentally friendly manner. If any parts are missing
or damaged, please call Stevens for immediate parts replacement (1-800-350-3270).
TM2185R
edgebanding
seam
Due to continuing product development, Stevens reserves the right to change specifications without notice.
ATTENTION
When ordering parts, give the Model Number and Color of the unit.
CAUTION – CHOKING HAZARD
Adult assembly required due to presence
of small parts and sharp edges.
channel
©2018 Stevens Industries, Inc.
channel
raw
edge
1
#0964-3130
Advertisement
Table of Contents
Related Manuals for Stevens ToT mate TM2185R
Summary of Contents for Stevens ToT mate TM2185R
- Page 1 fit is adequate. channel edgebanding seam edge HARDWARE / TOOLS INCLUDED Confirmat Bolt (5) (Screw Conn HxDc Ni 7mmx50mm) channel Hex Wrench ©2018 Stevens Industries, Inc. 3594.TM2185.9/25/18 #0964-3130 Due to continuing product development, Stevens reserves the right to change specifications without notice.
- Page 2 Top-Bottom (1). Align holes on Top- Bottom (1) with dowels on Dividers (4). Press firmly into place. channels ©2018 Stevens Industries, Inc. #0964-3130 3594.TM2185.9/25/18 Due to continuing product development, Stevens reserves the right to change specifications without notice.
- Page 3 Ends (2) must be facing same direction. Press firmly into place. Repeat Step 9 to secure End (2) to Top-Bottoms STEP (1). ©2018 Stevens Industries, Inc. 3594.TM2185.9/25/18 #0964-3130 Due to continuing product development, Stevens reserves the right to change specifications without notice.
- Page 4 Ends (2) are on bottom of unit. edgebanding seam Ensure that all joints and bolts are tight. STEP This completes the assembly. ©2018 Stevens Industries, Inc. #0964-3130 3594.TM2185.9/25/18 Due to continuing product development, Stevens reserves the right to change specifications without notice.
