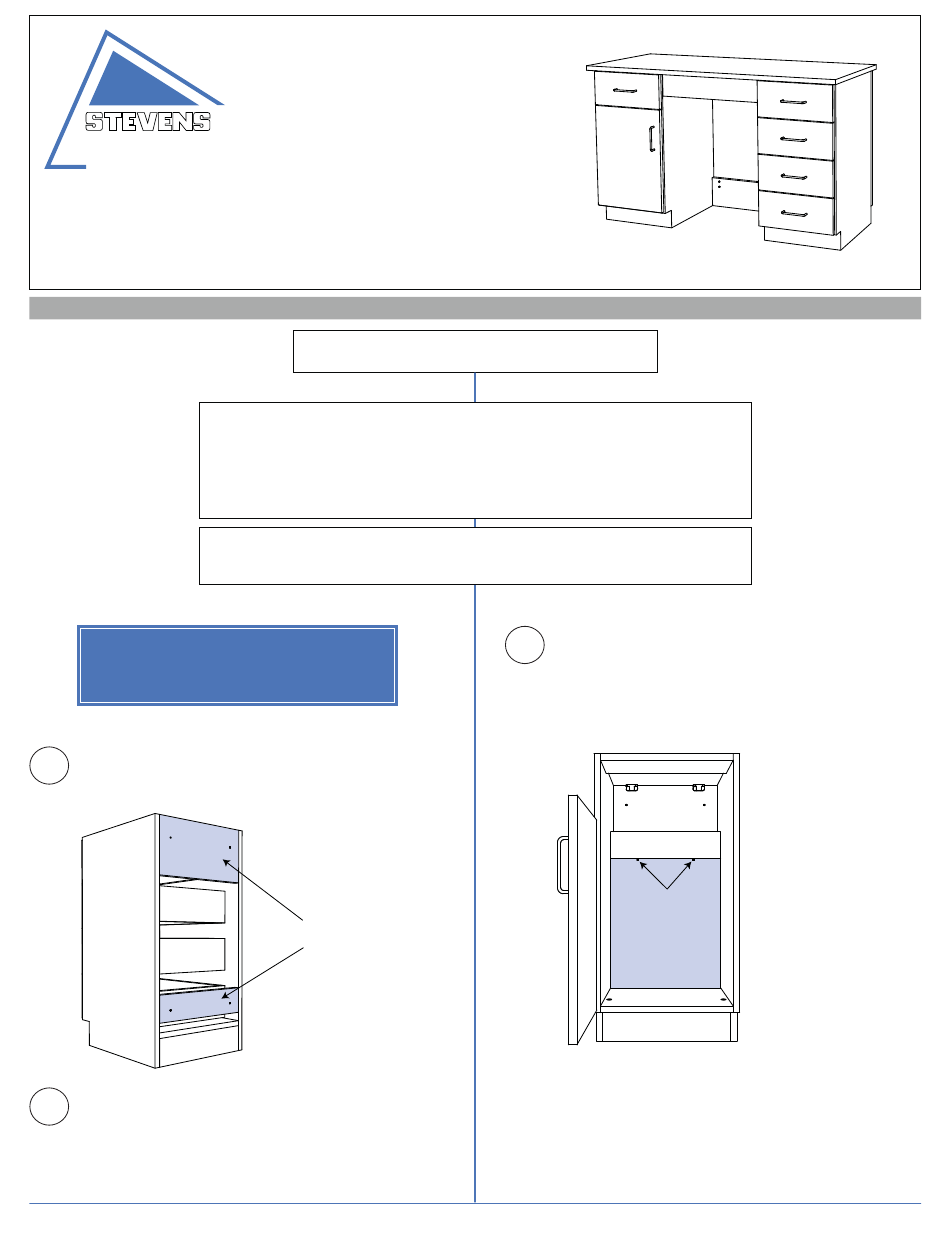

Stevens 84152 Step-By-Step Instructions

I.D.SYSTEMS
84152/84158
COMPACT ISLAND DESKS
Illustrations are general in nature and
do not depict components and details
unrelated to the assembly process.
1
Note that there are two (2) Mounting Rails on
back side of Base Cabinets.
2
Remove at least top and bottom drawers from
Base Cabinets, to provide access during later
steps. Be sure to note their location, as they must
go back in same location when installation is
complete.
3249.IDS-84152/84158.7/26/12
Stevens I.D.SYSTEMS
800.350.3270
TM
www.IDSystemsStorage.com
STEP-BY-STEP INSTALLATION
Please unpack and assemble in an area away from children's activities. Remove all tools
and excess materials from work area after assembly of unit is complete. Dispose of pallet
and packaging materials in an environmentally friendly manner. If any parts are missing or
damaged, please call Stevens for immediate parts replacement (1-800-350-3270). When
ordering parts, give the Model Number and Color of the unit.
Pulls are preinstalled on the inside of fronts and must be reinstalled on the outside.
However, they are shown in their final mounting position on installation drawings.
Mounting
Rails
(back view)
©2012 Stevens Industries, Inc. Due to continuing product development, Stevens reserves the right to change specifications without notice.
™
ATTENTION
NOTE:
3
For the Drawer-over-Door Cabinet, also remove
1/4" Back Panel. To do this, remove two (2)
screws at top of Panel, then slide Panel over to
one side to allow removal from side and bottom
grooves. This Panel will be reinstalled later.
Screws
1/4" Back
Panel
#0964-2938
1
