MODEL: GM8
GREENHOUSE SIZE: 10' 8 3/8"L x 8' 7/8"W x 7' 5"H
EXTENSION SIZE: 5' 3"L x 8' 7/8"W x 7' 5"H
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
Item No.
Model No.
2533050
GM8
GM8 ext
Assembly Instructions
326cm L x 246cm W x 226cm H
160cm L x 246cm W x 226cm H
AL No.1
1CTN
Packing List
AL No.2
AL No.3
1CTN
1CTN
Customer Support
Support@ACFgreenhouses.com
1-888-888-9050
PC No.1
PC No.2
1CTN
2CTNS
1CTN

Advertisement

loading
Need help?

Need help?

Do you have a question about the GM8 and is the answer not in the manual?

Questions and answers

Summary of Contents for ACF Greenhouses GM8

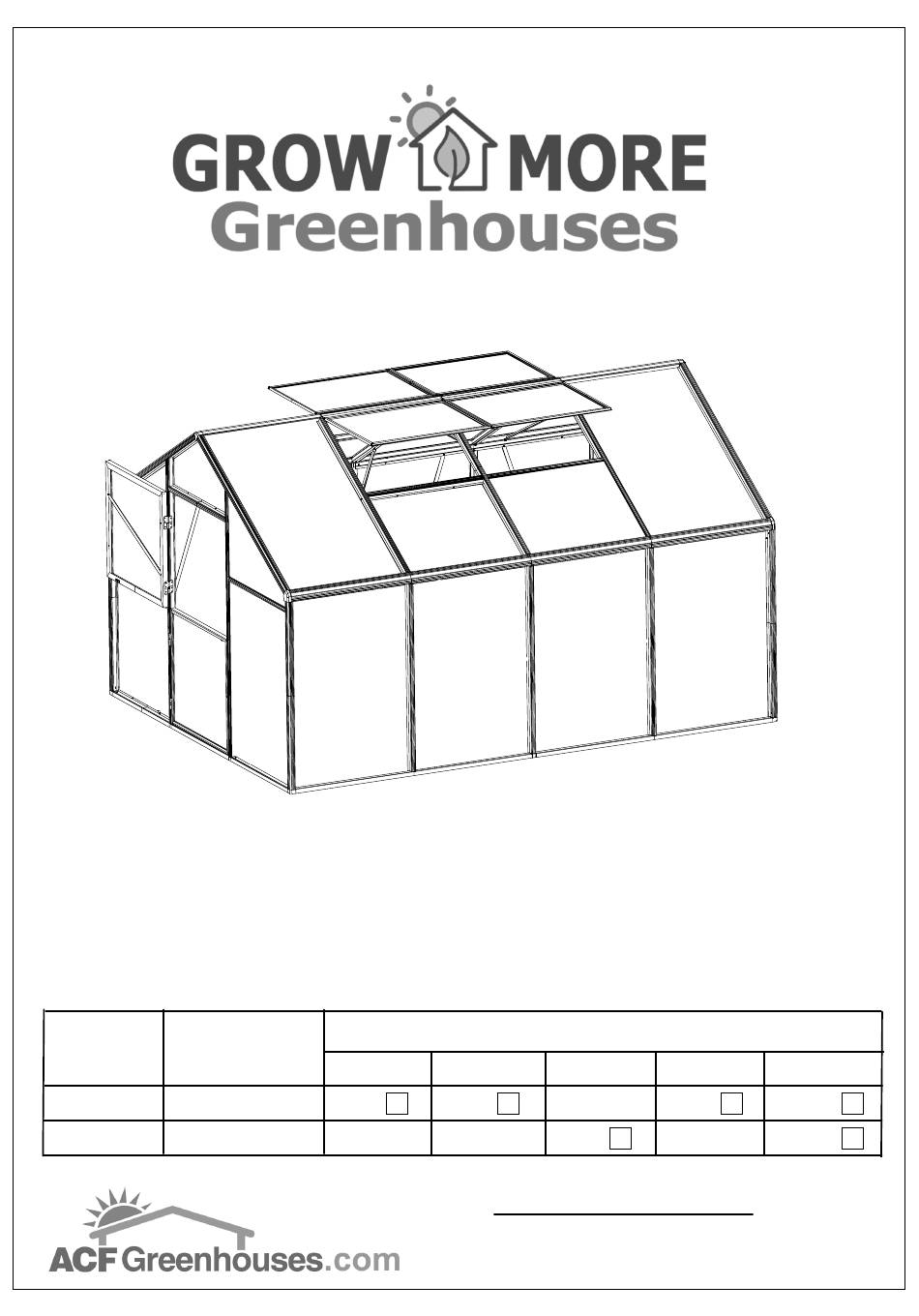

  • Page 1 Assembly Instructions MODEL: GM8 GREENHOUSE SIZE: 10' 8 3/8"L x 8' 7/8"W x 7' 5"H 326cm L x 246cm W x 226cm H EXTENSION SIZE: 5' 3"L x 8' 7/8"W x 7' 5"H 160cm L x 246cm W x 226cm H...
  • Page 2 CONTENTS 1. Assembly Advice ..............Page 1 2. Product Features ..............Page 3 - 4 3. Parts List ................Page 5 - 8 5. Base Assembly ..............Page 9 - 12 6. Door Assembly ..............Page 13 - 14 7. Roof Vent Assembly ............Page 15 8.
  • Page 3 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that the product will be assembled by at least two people. 2. Some parts have sharp edges. Please be careful when handling components. Always wear gloves, shoes and safety goggles during assembly. 3.
  • Page 4 5. A steel base is not required as the aluminium base frame is fixed to the necessary concrete footings with the expansion bolts provided, alternatively you can easily secure it to a timber base with timber screws(not provided). Expansion screw / Concrete ground 6.
  • Page 5 GM8 ALU BOX NO.1 PART PART PART QTY. QTY. QTY. L01A J01R/L L01D L01B L01C J06R/L L03E L03F L03C L03D L04A L04B M6X12 L08A L18A M8X60 L18B Ø4X16D L18C Ø5X15 L16A L16B L16C L05G L05A L05B...
  • Page 6 GM8 ALU BOX NO.2 PART PART PART QTY. QTY. QTY. L02A L02B L05B L05C L05D L08B M6X12 M8X60 L15A M6X20 Ø4X16D Ø4X8 L04E Ø5X30 L03A L03B L05E L05F...
  • Page 7 GM8-2EXT. ALU BOX NO.3 PART PART PART QTY. QTY. QTY. L02A L02B L05B L05C L05D L08B M6X12 M8X60 L15A M6X20 Ø4X16D Ø4X8 L04E Ø5X30 L03A L03B L05E L05F...
  • Page 8 PC Box No. 1 Door Assembly Back Assembly Front Assembly PART PART PART QTY. QTY. QTY. No.1 PC Box No. 2 1X2 Sections Assembly PART QTY. PC Box No.2...
  • Page 9 Expansion screw / Concrete ground * It is crucial the a + b dimensions are the same to ensure the base is square. Support at the corners only is not adequate.
  • Page 10 Back Assembly Front Assemby 4 Section Assemby Dim/Model GM8+Ext(1 ) GM8+Ext(2 ) GM8+Ext(3 ) GM8+Ext(4 ) etc. 2458.8 2458.8 2458.8 2458.8 2458.8 (mm) 3259.8 4861.8 6463.8 8065.8 9667.8 (mm) (mm) 4083.1 5448.2 6915.7 8432.3 9975.6 a1=b1 (mm) 3961.6 5331.7 6803.9 8324.1...
  • Page 11 GM8 + Ext(1) Rear Front 2 Section 2 Section 2 Section Assembly Assembly Assembly Middle Middle Section Section GM8ext GM 8 * The basic model,GM8,can be easily extended by adding a`2 Section Assembly'each time for a longer size...
  • Page 12 Front Rear GM8 + Ext(1) * This shows a layout for W05's positions where it is placed in the middle of PC panel for each section. * All measurements in above diagram are in mm.
  • Page 13 PART QTY. Door 1 Assembly L18A L18B L18C L18C L16A L16B L16C L18A L05G L16C M6X12 L05G L05G Ø5X15 L18B L18C L18C L16C L18A L16C L18A L18B L18B...
  • Page 14 Door 2 Assembly L18B L18A L16A L05G L05G L16B L18B L18B L16A L18A L16A L18A L16B L16B...
  • Page 15 PART QTY. Roof Vent Assembly L15A L15A M6X20 Ø4X16D Ø4X8...
  • Page 16 PART QTY. L08A L08B L08A L08A J01R/L L08A L08B L08B L08B L08B L08A L08A L08A J01R/L L08A&B L08B L08A L08A L08B L08A&B J01R/L L08B L08A J01R/L L08A L08B L08B L08B J01R/L Assemble all D07 followed by previous Page 16 after each base profile is connected.
  • Page 17 PART QTY. L01A L03A L03C L03C L03D L03D L01A L01A L03A L03A Ensure orientation of the L07 profile is correct as per detail. CORRECT WRONG L01A L03C L03D L01A A09&A10 L03A L01A L03A...
  • Page 18 PART QTY. L04B L05A L05B M6X12 Slide 2xS05 into each L04B and tighten them at each end. L04B L04B L04B 2*S05 L04B L04B L05A L05B L05A L04B L05B L05A L03C L05A L08A L04B L04B...
  • Page 19 PART QTY. L02A L03B L05B L05C L03B L03B M6X12 L05C L05B L05C L05B L02A L02A S05x3pcs L02A L02A L08B L03A L05C L05C L05B L05B L08B L05B...
  • Page 20 PART QTY. L01A L01D L02A L05B L05C L05E L05F L05E L05F L05F M6X12 L05E L05F L03K L05F L05F L05E L05F...
  • Page 21 CORRECT WRONG Ensure orientation of the L07 profile is correct as L01D per detail. L01A L03B L01D&A A06&A07 A09&A10 L01D&A L03A L05B L05C L05B L02A L05C L02A S05x3pcs L02A L03A L05C L02A L05B L05B L08B L08B...
  • Page 22 PART QTY. L03E L03F L03F L03E L03E L03F...
  • Page 23 PART QTY. L04A L04B M6X12 L04A L04B L04B Slide 2xS05 into each L04A & B and tighten them at each end. L03E&F L04A 2*S05 L04A L03E&F L04B L04B 2*S05 L04B L03A&D...
  • Page 24 PART QTY. L05A L05A M6X12 L05A L05A L05A...
  • Page 25 PART QTY. L01B L01C Note: please insert upper roof supports but do not lock in place until you have aligned the polycarbonate inserts. L01B L01C L01C L01B L01B L01C L01B L01C...
  • Page 26 PART QTY. L01C L01B...
  • Page 27 PART QTY. L02B L02B M6X12 L02B L02B L02B Slide 4xS05 into each L02B and tighten them at each end. L02B L02B 4*S05 L02B L02B...
  • Page 28 PART QTY. Roof Vent Assembly L05D L04E L04E L05D L04E L05D L05D L04E L04E L05D M6X12 M6X20 Pay attention to the cut edge of L04E which should be fixed, facing up. L04E L04E S05x6pcs L04E L04E L05D L05D...
  • Page 29 Roof Vent Assembly x 4PCS L 15A L15A L15A L15A S11/M03 L04E L04E L04E S05/M03 S34/M05 S34/M05...
  • Page 30 PART QTY. Insert all Y7 & Y9 panels into each roof of greenhouse. Note: If it is difficult sliding any panels in the channels, using soapy water or olive oil in the channels can reduce the friction. Insert all Y6 panels into each side of greenhouse.
  • Page 31 PART QTY. J06R/L Ø5X30 Ø4X16D When installing the J07 and the second section of gutter, it can help if you have 2 people, one guiding the gutter into the J07 and the other gently tapping the end of the gutter with a rubber mallet. It can help to install the J07 into one end of the gutter before hand.
  • Page 32 Once the L09 is in place. A small bead of silicon suitable for polycarbonate can assist in preventing leaks. To install the doors, simply slide the hinge pins on the doors into the corresponding hinge sleeves on the greenhouse. The latch shown in image 1 joins the two sections of the doors together. To make minor height adjustments you can remove or add the spacers provided on the pin section of the hinge.
