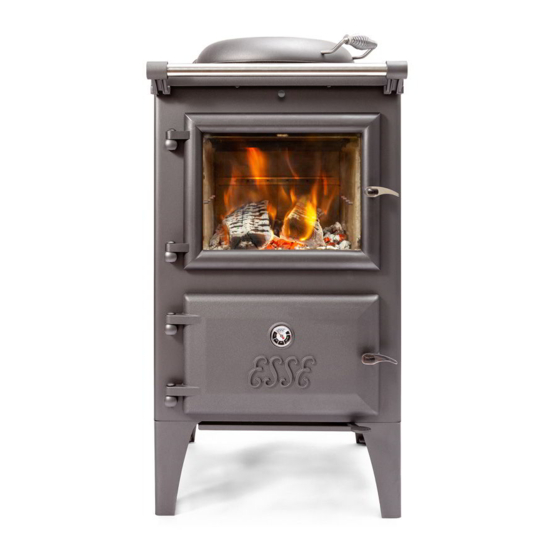

Bakeheart &
Warmheart
Wood Fired Cooking Stoves
THIS APPLIANCE MUST BE INSTALLED & COMMISSIONED
BY A REGISTERED INSTALLER OR PLUMBER
THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bakeheart and is the answer not in the manual?

Questions and answers

Related Manuals for Esse Bakeheart

Summary of Contents for Esse Bakeheart

  • Page 1 Bakeheart & Warmheart Wood Fired Cooking Stoves THIS APPLIANCE MUST BE INSTALLED & COMMISSIONED BY A REGISTERED INSTALLER OR PLUMBER THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY...

  • Page 2: Table Of Contents

    Table of Contents INSTALLATION INSTRUCTIONS ................3 DATA LABELS ....................3 DIMENSIONS AND CLEARANCES ..............4 CLEARANCES ....................5 TECHNICAL INFORMATION................7 CHIMNEY AND FLUE INFORMATION .............. 8 HOT WATER ....................9 HOT WATER SYSTEM ..................10 HOT WATER OPTIONS .................. 11 INSTALLING THE APPLIANCE ................

  • Page 3: Installation Instructions

    Bakeheart & Warmheart INSTALLATION INSTRUCTIONS DATA LABELS Figure 1 Bakeheart Data Label Figure 2 Warmheart Data Label Page 3...

  • Page 4: Dimensions And Clearances

    DIMENSIONS AND CLEARANCES Figure 3 Bakeheart Cooking Stove Figure 4 Warmheart Cooking Stove Page 4...

  • Page 5: Clearances

    CLEARANCES Clearances from combustible materials, when installed with flue heat shield - Rear 150mm - Side 130mm if bench is level or below hob height - Or 500mm if bench/wall is above hob height - Corner 175mm Clearances from combustible materials, when installed with no flue heat shield - Rear 225mm Side 130mm if bench is level or below hob height - Or 500mm if bench/wall is above hob height...
  • Page 6 Clearances from Non-combustible materials, when installed with no flue heat shield - Rear 25mm - Side 10mm - Corner 25mm Figure 5 Bakeheart Minimum Clearance to Combustibles Page 6...

  • Page 7: Technical Information

    Minimum chimney Nominal heat output 5.0kW 12Pa draught Combustion air Mean flue requirements gas temperature Weight of appliance Bakeheart: 192 kg Flue gas mass flow 10g/s Warmheart: 154 kg Hot water 2.8kW Heat to room 780m > 100 m Average oven temp 180°C Max oven temp...

  • Page 8: Chimney And Flue Information

    CHIMNEY AND FLUE INFORMATION The successful operation of the cooking appliance relies on the adequate performance of the chimney to which it is connected. The following chimney guidelines must be followed: o A 150mm (6’’) diameter flue is required to connect to the cooking stove. o Do not use Decromesh –...

  • Page 9: Hot Water

    - Punch out appropriate pipe outlets in panel - Replace panels NOTE If Bakeheart has a hot water jacket installed, it must be connected to an appropriate hot water service before use. Lighting your stove prior to this will void your warranty and damage your stove.

  • Page 10: Hot Water System

    HOT WATER SYSTEM A. If a boiler is fitted to this system it must be connected to a heating system otherwise the warranty is void. B. There are two connections, both 1” Fi BSP Female on the left hand side. Follow general notes below.

  • Page 11: Hot Water Options

    HOT WATER OPTIONS Page 11...
  • Page 12 Flue Draught The chimney can be checked before the appliance is installed with a smoke match. If the flue doesn’t pull the smoke, it may suggest the flue needs attention. This test is only a guide as an apparently poor flue may improve once the appliance is installed, lit and the flue is warmed.
  • Page 13 Flue clearances Page 13...
  • Page 14 Room sealed insulation flue kit – Standard ceiling Page 14...

  • Page 15: Installing The Appliance

    Figure 7 Chimney Location and Flue Performance INSTALLING THE APPLIANCE Flue Connection The flue pipe used to connect the appliance to the chimney is 6’’ (150mm) in diameter. (The flue connection is on the top of the appliance, in the centre at the back.) Page 15...
  • Page 16 Important Installation Notes o The installation must allow access for adequate chimney sweeping and flue cleaning. o Avoid using bends greater than 45° to the vertical. All flue pipe sections should be as close to the vertical as possible. o All joints in the flue system must be effectively sealed. o All flue sockets must face upwards.

  • Page 17: Commissioning The Appliance

    COMMISSIONING THE APPLIANCE o Ensure the flue draught is compliant with AS/NZS 2918:2018. o Check ventilation. o Ensure fire bricks, baffles, and the after burner are in the correct position. o Check that all doors fit and seal correctly. o If applicable check plumbing circuit. o Check no extractor fan, other appliance or other flue interferes.
  • Page 18 Table 1 Firebrick Part Numbers Item No. Part Number Description Qty. 990-009B Base Brick I-WH-200-101 Side Front Brick 500-IH-235 Top Front Brick 990-004 Top Back Brick 990-009 Rear Brick 500-IH-226 Rear Side Brick I-WH-200-102 Baffle Support I-IH-200-108 Shelf Support Pin M6X35 CTSK M6X35 CTSK Screw M6 MKV PH Locknut...

  • Page 19: Commissioning Checklist

    COMMISSIONING CHECKLIST To assist with any potential guarantee claim please complete the following information:- To be completed by the installer. Dealer the appliance was purchased from: Name: Address: Telephone No: ESSENTIAL information: Date Installed Model Description: Serial No: Installation Engineer: Company Name: Address: Telephone No:...

  • Page 20: Operating Instructions

    Bakeheart & Warmheart OPERATING INSTRUCTIONS INTRODUCTION Thank you for choosing an ESSE cooking stove. Please read these instructions carefully to ensure your safety and enjoyment whilst using this product. Correctly installed and operated, your ESSE cooking stove will provide faithful service indefinitely.
  • Page 21 Included inside your cooking stove is a multi-purpose Operating Tool – for adjusting the air supply and operating the door. A glove is also provided to protect the user’s hand. (Figure 3) WARNING Do not place towels on the handrail, keep pets and children away and ensure that any curtains near the appliance cannot ignite even when displaced.

  • Page 22: Lighting And Controlling The Fire

    LIGHTING AND CONTROLLING THE FIRE Before lighting the fire ensure that all vermiculite bricks are in the correct position. Ensure the air control is in the open position by moving the control to the right hand position. Figure 10 Air Control in Open Position Open the fire door and place a firelighter in the centre of the firebox.

  • Page 23: Notes On Woodburning

    The burning rate of the stove can now be regulated by the rate at which fuel is added and use of the air control. The maximum amount of fuel to be loaded during normal operation is 2kg per hour in order to achieve nominal heat output. NOTE This appliance is not an incinerator and only dry well seasoned wood should be used.

  • Page 24: Long Term Shutdown

    Overheated Flue Heat will be wasted up the chimney. Excess heat may damage the cooking stove or ignite an existing accumulation of tar resulting in a chimney fire. In the event of a fire, close the air controls on the appliance and call the fire brigade for assistance.

  • Page 25: Extended Woodburning

    The shelf in the Bakeheart oven has anti-pull out stops on the ends to prevent it from being pulled out inadvertently; to remove a shelf, pull forward until the stop is reached, then lift at the front and pull out of the oven.
  • Page 26 Your ESSE Bakeheart has a gradual hotplate temperature variation. By simply moving your pan across the top, you can change to the desired temperature. Graduated hotplate temperature ranging from 190°C – 300°C 2. Char Grill Cook directly on your hotplate / and close the bolster lid over your food for ESSE’s unique Char Grill experience.
  • Page 27 Add a little water to create steam, close the lid to trap the heat and you get a unique Char Grill. 3. BBQ Your ESSE Bakeheart is supplied with a BBQ grill for BBQ directly over your fire. Page 27...
  • Page 28 Slide in BBQ shelf inside your fire box, on the supports, and BBQ away. You can create charcoal chicken, the best BBQ steaks, even traditional wood fire pizzas directly over your fire in your Bakeheart. 4. Oven ESSE’s Bakeheart oven offers 24ltrs capacity of baking.
  • Page 29 In order to avoid adverse combustion conditions it is a good idea to increase the temperature of the cooking stove before loading more wood by further opening the air control. Load the wood (3kg+ for long extended burning) and leave the air control open until the moisture is driven out of the wood and the cooking stove is up to an efficient operating temperature (approximately 20 minutes).

  • Page 30: Cleaning And Maintainance

    CLEANING AND MAINTAINANCE The successful operation of your range cooker is entirely dependent on the adequate performance (pull) of the chimney or flue to which it is connected. The following maintenance guidelines will be pointless unless the flue is also maintained and cleaned regularly.

  • Page 31: Warranty

    Figure 11 Under the Hotplate To clean the flue way of the cook stove the hotplate must be removed. To avoid rust forming on the hotplate pans should not be stored on top of the cooker when not in use. Cleaning the Flue It is recommended that the flue is cleaned at least every 12 months to maintain a suitable flue draught and prevent poor performance of the cooking stove.

  • Page 32: Exclusions

    Your ESSE is guaranteed against defects arising from faulty manufacture for 2 years when supplied by an ESSE Specialist. Proof of purchase is required. The appliance must be only used for normal domestic purposes and in accordance with our instructions, be correctly installed and serviced.

  • Page 33: Customer Care

    ESSE our website, pivotonline.com.au Should you have cause for dissatisfaction with your cooker, you should contact your ESSE dealer, who will, in most instances, be able to offer you immediate assistance. You will be required to give the following details.

  • Page 34: Servicing

    SERVICING It is recommended that the cook stove is serviced annually by a qualified person. These services can be recorded below. Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date:...
  • Page 35 Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Page 35...
  • Page 36 Australia Distributed in partnership with Pivot Stoves 234-238 Moorabool Street Geelong, VIC 3220 Phone(03) 5221 4485 Website and On-line Storewww.pivotstove.com.au BH WH (AUS) R6 220712...
