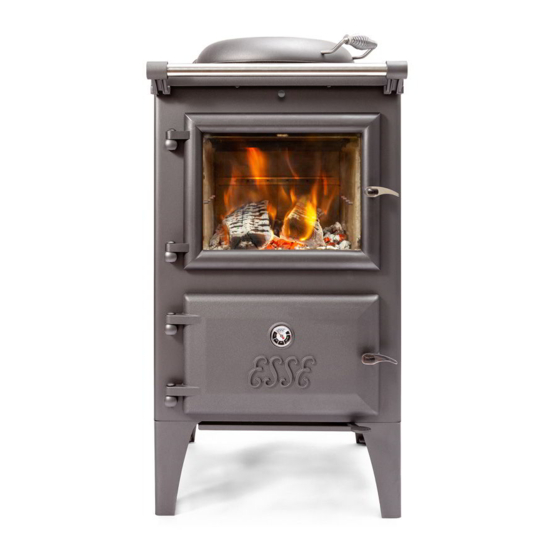

Esse Bakeheart Manual

Wood fired cooking stoves
Hide thumbs Also See for Bakeheart:
Table of Contents

Advertisement

Quick Links

Bakeheart &
Warmheart
Wood Fired Cooking Stoves
THIS APPLIANCE MUST BE COMMISSIONED BY A REGISTERED INSTALLER OR PLUMBER
THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bakeheart and is the answer not in the manual?

Questions and answers

Related Manuals for Esse Bakeheart

Summary of Contents for Esse Bakeheart

  • Page 1 Bakeheart & Warmheart Wood Fired Cooking Stoves THIS APPLIANCE MUST BE COMMISSIONED BY A REGISTERED INSTALLER OR PLUMBER THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY...

  • Page 2: Safety Notes

    SAFETY NOTES o Properly installed, operated and maintained, this appliance will not emit fumes into the dwelling. However, occasional fumes from de-ashing and re-fuelling may occur. o Persistent fume emission is potentially dangerous and must not be tolerated. If fume emission does persist, open doors and windows to ventilate the room.

  • Page 3: Table Of Contents

    Table of Contents SAFETY NOTES ................... 2 INSTALLATION INSTRUCTIONS ................ 4 DATA LABELS ..................... 4 GENERAL SAFETY INFORMATION ..............5 DIMENSIONS AND CLEARANCES ..............6 TECHNICAL INFORMATION ................. 7 CHIMNEY AND FLUE INFORMATION............8 INSTALLING THE APPLIANCE ..............13 HOT WATER SYSTEM ................14 COMMISSIONING THE APPLIANCE ............

  • Page 4: Installation Instructions

    Bakeheart & Warmheart INSTALLATION INSTRUCTIONS DATA LABELS Figure 1 Bakeheart Data Label Figure 2 Warmheart Data Label Page 4 IH500AUS-I02-180219...

  • Page 5: General Safety Information

    GENERAL SAFETY INFORMATION Clearances from combustible materials are 130 mm from the sides and 225 mm from the rear for the Bakeheart, and 350mm from the sides and 125mm from the rear for the Warmheart. Clearances from non-combustible materials are 25mm from the rear of the cook stove and 10mm from the side fro both the Bakeheart and the Warmheart.

  • Page 6: Dimensions And Clearances

    DIMENSIONS AND CLEARANCES Figure 3 Bakeheart Cooking Stove Figure 4 Warmheart Cooking Stove Page 6 IH500AUS-I02-180219...

  • Page 7: Technical Information

    Figure 5 Bakeheart Minimum Clearance to Combustibles TECHNICAL INFORMATION Cut your logs to the approximate size shown in Figure 6 to minimise the need for refuelling. Figure 6 Approximate Size of Logs Page 7 IH500AUS-I02-180219...

  • Page 8: Chimney And Flue Information

    Nominal heat output 5.0kW Minimum chimney draught 12Pa Combustion air /h Mean flue gas temperature requirements Weight of appliance Bakeheart: 192 kg Flue gas mass flow 10g/s Warmheart: 154 kg CHIMNEY AND FLUE INFORMATION The successful operation of the cooking appliance relies on the adequate performance of the chimney to which it is connected.
  • Page 9 o It is recommended that an inspection hatch is fitted to the chimney as this will make future cleaning easier. o A single wall starter length with a single to twin wall adapter will be needed to use twin wall insulated flue. The stove will need to be moved away from the wall to accommodate use of twin wall flue.
  • Page 10 to light and smoke coming into the room. High flue draught symptoms: fuel burns away very quickly, overfiring which may damage the appliance & invalidate the warranty. A flue stabiliser can be fitted to reduce the draught through the appliance if the draught may exceed 25Pa.
  • Page 11 Page 11 IH500AUS-I02-180219...
  • Page 12 Table 1 Flue Draught Trouble Shoothing Guide Low flue draught symptoms: difficult to light and smoke coming into room CAUSE REMEDY Cold chimney Line the Chimney Chimney too short Extend the chimney Relocate/extend chimney terminal. Fit an Down draught anti-down draught cowl Chimney diameter too large Line the chimney Chimney obstruction...

  • Page 13: Installing The Appliance

    INSTALLING THE APPLIANCE Flue Connection The flue pipe used to connect the appliance to the chimney is 6’’ (150mm) in diameter. (The flue connection is on the top of the appliance, in the centre at the back.) Important Installation Notes o The installation must allow access for adequate chimney sweeping and flue cleaning.

  • Page 14: Hot Water System

    HOT WATER SYSTEM A. If a boiler is fitted to this system it must be connected to a heating system otherwise the warranty is void. B. There are two connections, both 1” BSP Female on the left hand side. Follow general notes below. C.
  • Page 15 Figure 8 DHW Gravity Heating System Page 15 IH500AUS-I02-180219...

  • Page 16: Commissioning The Appliance

    Check that all doors fit and seal correctly o If applicable check plumbing circuit o Check no extractor fan, other appliance or other flue interferes o Complete commissioning card and return to ESSE to validate warranty REPLACEMENT PARTS Figure 9 Firebrick Layout...
  • Page 17 Table 2 Firebrick Part Numbers Item No. Part Number Description Qty. 990-009 Rear Brick 500-IH-226 Side Rear Brick 500-IH-227 Side Front Brick 990-004 Top Back Brick 500-IH-235 Top Front Brick 990-009B Base Brick 990-009C Front Brick Fire Door Glass Combustor WCKCU-012 Side Brick 500-IH-226...

  • Page 18: Commissioning Checklist

    COMMISSIONING CHECKLIST To assist with any potential guarantee claim please complete the following information:- To be completed by the installer. Dealer the appliance was purchased from: Name: Address: Telephone No: ESSENTIAL information: Date Installed Model Description: Serial No: Installation Engineer: Company Name: Address: Telephone No:...

  • Page 19: Operational Instructions

    Bakeheart & Warmheart OPERATIONAL INSTRUCTIONS INTRODUCTION Thank you for choosing an ESSE cooking stove. Please read these instructions carefully to ensure your safety and enjoyment whilst using this product. Correctly installed and operated, your ESSE cooking stove will provide faithful service indefinitely.

  • Page 20: Your Cooking Stove

    YOUR COOKING STOVE Figure 10 Bakeheart Cooking Stove Figure 11 Warmheart Cooking Stove Figure 10 and Figure 11 show the cooking stoves and their controls. The fire is loaded, refuelled, and emptied through the large glass fire door. Page 20...
  • Page 21 Included inside your cooking stove is a multi-purpose Operating Tool – for adjusting the air supply and operating the door. A glove is also provided to protect the user’s hand. (Figure 3) WARNING Do not place towels on the handrail, keep pets and children away and ensure that any curtains near the appliance cannot ignite even when displaced.

  • Page 22: Lighting And Controlling The Fire

    LIGHTING AND CONTROLLING THE FIRE Before lighting the fire ensure that all vermiculite bricks are in the correct position. Ensure the air control is in the open position by moving the control to the right hand position. Figure 13 Air Control in Open Position Open the fire door and place a firelighter in the centre of the firebox.

  • Page 23: Notes On Woodburning

    The burning rate of the stove can now be regulated by the rate at which fuel is added and use of the air control. The maximum amount of fuel to be loaded during normal operation is 2kg per hour in order to achieve nominal heat output. NOTE This appliance is not an incinerator and only dry well seasoned wood should be used.

  • Page 24: Long Term Shutdown

    When the flue is at the correct temperature there will be rolling flames visible above the logs, any residue on the fire door glass will burn away. Overheated Flue Heat will be wasted up the chimney. Excess heat may damage the cooking stove or ignite an existing accumulation of tar resulting in a chimney fire.
  • Page 25 for a season or so, while it dries, but there are things you can do to speed up seasoning by cutting the wood now rather than just before you use it. Wood is composed of bundles of microscopic tubes that were used to transport water from the roots of the tree to the leaves.
  • Page 26 hardwood costs more than the same size trailer full of softwood, the more expensive option may well be the most economical.) The other advantage of good hard firewoods are that the cooker does not need to be fed as often and the charcoal-beds made by the glowing wood may burn more easily overnight.

  • Page 27: Cooking With The Cook Stove

    Alternatively you can add some fast burning softwood logs to the slower hardwood logs to instantly revive a fire, which has been neglected. All firewood should have the bark removed before burning and should not be painted or treated as these can cause excessive smoke and tarring of the stove as well as releaseing hazardous fumes when burnt.

  • Page 28: Extended Woodburning

    The shelf in the Bakeheart oven has anti-pull out stops on the ends to prevent it from being pulled out inadvertently; to remove a shelf, pull forward until the stop is reached, then lift at the front and pull out of the oven.

  • Page 29: Cleaning And Maintainance

    too low to combust, resulting in a lot of smoke which will cover the inside of the cooking stove, including the glass, with soot. In order to avoid adverse combustion conditions it is a good idea to increase the temperature of the cooking stove before loading more wood by further opening the air control.
  • Page 30 If any of the chromed components become blue due to excess heat they can be restored using a chrome cleaner. When de-ashing the cooking stove only remove small amounts of ash leaving ideally 30mm depth of ash in the bottom for best performance. Figure 16 Under the Hotplate To clean the flue way of the cook stove the hotplate must be removed.

  • Page 31: Conditions Of Guarantee

    Your ESSE is guaranteed against defects arising from faulty manufacture for 2 years when supplied by an ESSE Specialist. Upon registration of the warranty, ESSE will extend the guarantee period to 5 years from purchase. Your details must be registered with us by either returning the completed warranty card or by completing registration on-line at www.esse.com.

  • Page 32: Customer Care

    Should you have cause for dissatisfaction with your cooker, you should contact your ESSE dealer, who will, in most instances, be able to offer you immediate assistance. You will be required to give the following details. o Your name, address and postcode.

  • Page 33: Servicing

    Servicing It is recommended that the cook stove is serviced annually by a qualified person. These services can be recorded below. Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date:...
  • Page 34 Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Service Date: Carried Out By: Comments: Page 34 IH500AUS-I02-180219...
  • Page 35 Page 35 IH500AUS-I02-180219...
  • Page 36 Australia Distributed in partenership with Pivot Stoves 234-238 Moora bool Street Geel ong, VIC 3220 Phone (03) 5221 4485 Website and On-line Store www.pi vots tove.com.a u...
