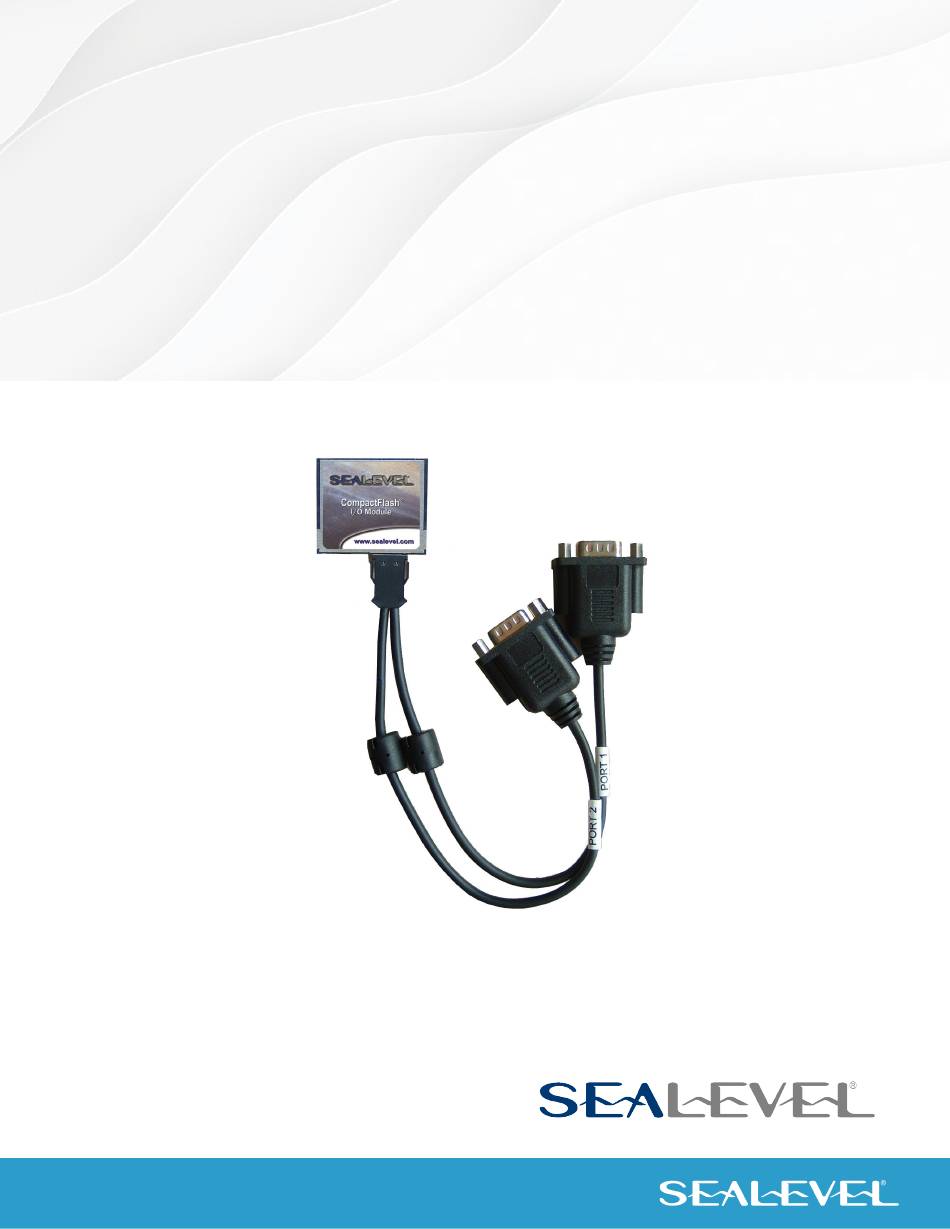

- Page 1 ISO-232+2.CF User Manual | 3201 © Sealevel Systems, Inc. 3201 Manual | SL9159 9/2022...
-
Page 2: Table Of Contents
CONTENTS ................................2 OVERVIEW ................................3 INTRODUCTION ..............................4 BEFORE YOU GET STARTED ..........................5 INSTALLATION THE ISO-232+2.CF ........................6 HARDWARE SPECIFICATION ..........................8 APPENDIX A – TROUBLESHOOTING........................ 11 APPENDIX B – HOW TO GET ASSISTANCE ..................... 12 WARRANTY ................................ 13 ©... -
Page 3: Overview
Overview The ISO-232+2.CF card is an isolated dual-port RS-232 CompactFlash serial card with the following features: • Type II CompactFlash form factor for CF+ equipped PDAs, Handheld PCs, laptops, etc. • Software support provided for Windows and PocketPC • Drivers not required for Windows CE and PocketPC •... -
Page 4: Introduction
Introduction The ISO-232+2.CF card is an isolated dual-port RS-232 serial card designed using a 16C550 compatible UART. The serial data and control lines are buffered using isolated RS-232 drivers that allow the RS-232 interfaces to be isolated up to +/-50 VDC relative to local host ground. -
Page 5: Before You Get Started
Before You Get Started What’s Included The ISO-232+2.CF is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. ISO-232+2.CF - An isolated dual-port RS-232 CompactFlash serial card • 12” Y-cable that terminates with two DB-9M connectors with female jackscrews •... -
Page 6: Installation The Iso-232+2.Cf
You will first need to install SeaCOM prior to using the ISO-232+2.CF. Installing SeaCOM software that is available Sealevel’s website (www.sealevel.com) will copy the necessary files into the proper Windows folders. - Page 7 For additional information on connecting your PocketPC or if you are using older versions of Windows, such as Windows 95/98/ME/NT/2000, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 AM to 5:00 PM Eastern Time Monday through Friday. For email support contact support@sealevel.com.
-
Page 8: Hardware Specification
Hardware Specification 4.1 Pinout The ISO-232+2.CF is supplied with a 12” Y-cable that terminates with two DB-9M connectors with female jackscrews (to match the port at the back of a PC). The pinout below applies to the DB-9M connectors on the supplied cable. - Page 9 Please terminate any control signals that are not going to be used. The most common way to do this is connect RTS to CTS. Terminating these pins, if not used, will help insure you get the best performance from your adapter. © Sealevel Systems, Inc. 3201 Manual | SL9159 9/2022...
- Page 10 4.4 Mechanical MASS: 15g typical (0.352 oz.) FORM FACTOR: 36.4mm x 42.8mm x 5.0 mm overall (1.43” x 1.68” x 0.13”) 4.5 Environmental HUMIDITY: <80% R.H. (non-condensing) TEMP: 0-50°C ambient (32-122°F) © Sealevel Systems, Inc. 3201 Manual | SL9159 9/2022...
-
Page 11: Appendix A - Troubleshooting
No two adapters can occupy the same I/O space. 3. Try the Sealevel Systems adapter with a unique IRQ. While the Sealevel Systems adapter does allow the sharing of IRQs, many other adapters (i.e., SCSI adapters & on-board serial ports) do not. -
Page 12: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides a FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.htm... -
Page 13: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
