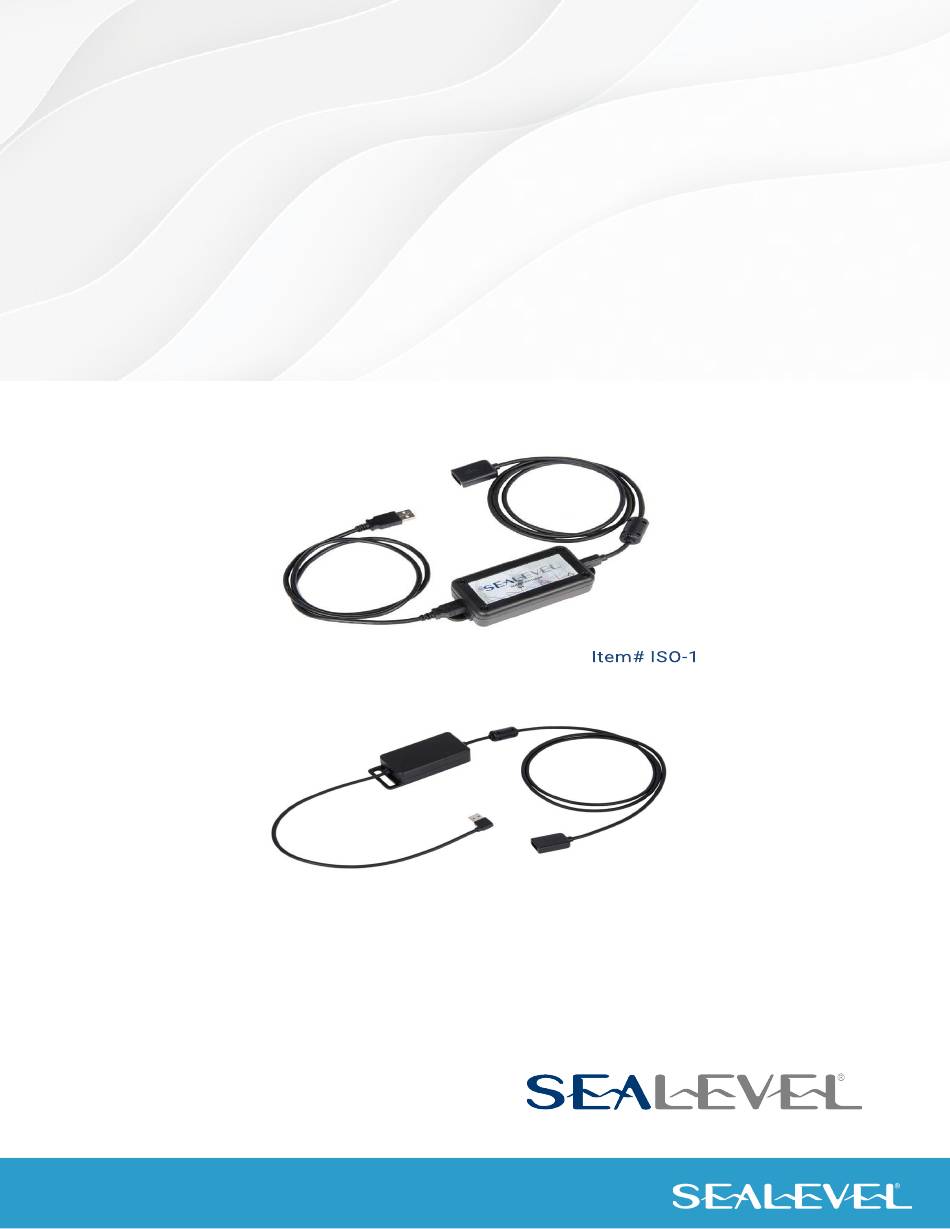

- Page 1 SeaISO USB Isolator ™ User Manual | ISO-1 and ISO-1R Item# ISO-1R © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023...
-
Page 2: Table Of Contents
BEFORE YOU GET STARTED ..........................4 SPECIFICATIONS ..............................7 APPENDIX A – DRAWINGS ..........................8 APPENDIX B – HOW TO GET ASSISTANCE ..................... 10 APPENDIX C – COMPLIANCE NOTICES ......................11 WARRANTY ................................ 12 © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023... -
Page 3: Introduction
No software required – appears in the system as a 1-port hub Low speed only devices such as keyboards and mice must be connected through an intervening USB hub. © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023... -
Page 4: Before You Get Started
There are no user-serviceable parts in the SeaISO USB Isolator. Do not disassemble. • Contact the manufacturer if service or repair is required. • Do not operate the system if it has visible damage. Contact the manufacturer for a replacement. • © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023... - Page 5 What’s Included ISO-1 The SeaISO ISO-1 USB Isolator is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • SeaISO USB Isolator (model # ISO-1) • USB cable extension (CA-536) •...
- Page 6 USB device is ready to use ISO-1R The SeaISO ISO-1R Ruggedized Isolator is shipped as an overmolded cable with the isolation electronics contained in a “bump” in the cable. © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023...
-
Page 7: Specifications
10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc. -
Page 8: Appendix A - Drawings
Appendix A – Drawings ISO-1 CA-536 All dimensions in millimeters © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023... - Page 9 CA-539 ISO-1R © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023...
-
Page 10: Appendix B - How To Get Assistance
When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 11: Appendix C - Compliance Notices
Always use the cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023... -
Page 12: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
