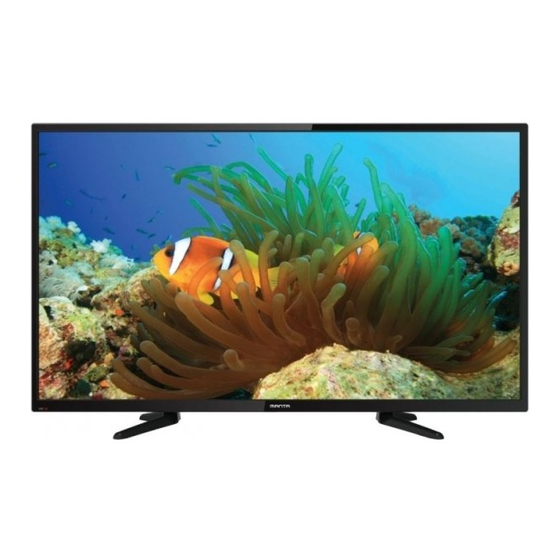

Led tv 39”

Advertisement

Available languages

Available languages

Quick Links

LED TV 39"
LED3905
Instrukcja Obsługi
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED3905 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manta LED3905

  • Page 1 LED TV 39” LED3905 Instrukcja Obsługi User’s Manual...
  • Page 2 LED3905 Instalacja 1. Umieść telewizor w pokoju tak, aby światło nie padało bezpośrednio na monitor. Całkowita ciemność lub odbijające się światło może powodować przemęczenie oczu. Dla komfortu oglądającego zalecane jest delikatne, niebezpośrednie oświetlenie. 2. Ustaw odbiornik w odległości od ściany tak, aby umożliwić wentylację.
  • Page 4 LED3905 Uwaga Urządzenie wymaga zastosowania źródła wysokiego napięcia. Nie zdejmuj obudowy produktu. W przypadku konieczności naprawy, zwróć się do wykwalifikowanego serwisanta. Uwaga Aby zapobiec pożarowi lub niebezpieczeństwu porażenia prądem, nie wystawiaj telewizora na deszcz, a także nie umieszczaj go w wilgotnych miejscach.
  • Page 5 LED3905 Uwaga Nie stawaj, nie opieraj się i nie popychaj urządzenia ani jego stojaka. Zwracaj szczególną uwagę na dzieci. Uwaga Nie stawiaj telewizora na niestabilnych stojakach, półkach lub stołach. Osoba, na którą spadnie telewizor może doznać poważnych obrażeń, a telewizor może ulec uszkodzeniu.
  • Page 6 LED3905 Przyciski panelu sterowania i ich funkcje VOL+ : Pogłaśnianie. VOL- : Ściszanie. CH+: Kolejny kanał telewizyjny. CH- : Poprzedni kanał telewizyjny. MENU: Przejdź do menu głównego. SOURCE: Wybierz sygnał na wejściu. POWER: Włącz i wyłącz telewizor. Podłączenie do portów 1.Wyjście na słuchawki.
  • Page 9 LED3905 SUBTITLE: Włączanie i wyłączanie napisów. (Opcja dostępna jedynie w modelach z systemem telewizji cyfrowej). T.SHIFT: Zatrzymanie bieżącego programu w telewizji cyfrowej i rozpoczynanie nagrywanie w tle. (Opcja dostępna jedynie w modelach z systemem telewizji cyfrowej). HOLD: Zatrzymanie kilkustronicowego fragmentu na ekranie w trybie telegazety.
  • Page 11 LED3905 K anały Naciśnij przycisk „Menu”, aby wyświetlić menu główne. Naciśnij przycisk ◄ / ► a by wybrać kanał w głównym menu. 1. Automatyczne skanowanie Naciśnij przycisk •/‚ by wybrać automatyczne skanowanie. Naciśnij przycisk •/‚ by wybrać państwo i naciśnij przycisk •/‚ by wybrać tryb.
  • Page 14 LED3905 D zwięk Możesz wybrać typ dźwięku według własnych upodobań. Naciśnij przycisk „Menu”, aby wejść do menu ekranowego. Następnie naciśnij przycisk / , aby wybrać menu „Sound” (dźwięk). 1. Naciśnij przycisk •/‚ , aby wybrać „Sound Mode” (tryb dźwięku) i naciśnij przycisk ƒ/„ , by wybrać...
  • Page 15 LED3905 BLOKADY Naciśnij przycisk „Menu”, aby wejść do menu ekranowego. Następnie naciśnij przycisk ƒ/„ , aby wybrać „Lock System” (system blokowania). Domyślne hasło to „0000”. Uwaga: Hasło administratora to „8899’’. 1. Naciśnij przycisk •/‚ , aby wybrać „Enable” (zezwól) i przycisk ƒ/„ , aby wybrać „On”, aby włączyć...
  • Page 18 LED3905 Lista ulubionych W systemie telewizji cyfrowej, użytkownicy mogą wejść w Listę ulubionych po naciśnięciu przycisku „FAV”. Informacje o programie W systemie telewizji cyfrowej, możesz nacisnąć przycisk „display” (wyświetl), aby wyświetlić informacje o kanale. Okno z informacjami o programie wygląda następująco: Audio W systemie telewizji cyfrowej, użytkownicy mogą...
  • Page 19 LED3905 ELEKTRONICZNY PRZEWODNIK UŻYTKOWNIKA (EPG) ELEKTRONICZNY PRZEWODNIK UŻYTKOWNIKA (EPG) dostarcza informacje o programach transmitowanych w danej chwili lub w przyszłości. System wyświetli okno „EPG” po naciśnięciu przycisku „EPG”. Informacje o dacie i godzinie są wyświetlane po prawej stronie okna. Lewa strona wyświetla wszystkie kanały.
  • Page 20 LED3905 USB F unkcje Naciśnij przycisk „SOURCE” (źródło), aby zmienić źródło „MEDIÓW”. Zdjęcia , aby wejść w opcję „PHOTO” (zdjęcia), a następnie naciśnij 1.Naciśnij przycisk przycisk „Enter”, aby przejść do menu tej funkcji. 2.Naciśnij przycisk , aby wybrać dysk, który chcesz oglądać, a następnie naciśnij przycisk „Enter”, aby wejść...
  • Page 21 LED3905 Muzyka 1.Naciśnij przycisk ,aby wybrać „Music” (muzyka) w menu głównym. Następnie naciśnij przycisk „Enter”, aby przejść do menu tej funkcji. 2.Naciśnij przycisk , aby wybrać dysk, który chcesz oglądać, a następnie naciśnij przycisk „Enter”, aby wejść do menu tej funkcji.
  • Page 22 LED3905 Text 1.Naciśnij przycisk , aby wybrać „Text” (tekst) w menu głównym. Następnie naciśnij przycisk „Enter”, aby przejść do menu tej funkcji. 2.Naciśnij przycisk aby wybrać dysk, który chcesz oglądać, a następnie naciśnij przycisk „Enter”, aby wejść do menu tej funkcji.
  • Page 23 LED3905 Nagrywanie W systemie telewizji cyfrowej, naciśnij przycisk „Menu”, aby wejść do menu ekranowego. Następnie naciśnij przycisk , aby wybrać menu „Setup” (ustawienia). 1.Naciśnij przycisk , aby wybrać „PVR Settings” (ustawienia nagrywania) i naciśnij przycisk „Enter” lub , aby przejść do podmenu.
  • Page 24 LED3905 b) Naciśnij przycisk ◄ / ► , aby wybrać „Device List” (listę urządzeń) i naciśnij przycisk „Enter”, aby przejść do podmenu. c) Naciśnij przycisk ◄ / ► , aby wybrać „Scheduled Record” (zaplanowane nagrywanie) i naciśnij przycisk „Enter”, aby przejść do ustawień.
  • Page 25 LED3905 S pecyfikacja Wejście RGB Tryb Rozdzielczość Częstotliwość pozioma Częstotliwość pionowa (KHz) (HZ) 720x400 31,5 640x480 31,5 SVGA 800x600 37,9 1024x768 48,4 WXGA 1360x768 47,7 Wejście HDMI Tryb Rozdzielczość Częstotliwość pozioma Częstotliwość pionowa (KHz) (HZ) 640 x 480 31,47 59,94...
  • Page 26 K K K A A A R R R T T T A A A P P P R R R O O O D D D U U U K K K T T T U U U L L L E E E D D D 3 3 3 9 9 9 0 0 0 5 5 5 Producent: Manta S.A. Model: LED3905 Klasa energetyczna: A Przekątna ekranu: 39”;...
  • Page 27: Installation

    LED3905 INSTALLATION ① Locate the room where direct light does not strike the screen. TV in a Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. ② Allow enough space between the receiver and the wall to permit ventilation.
  • Page 28 LED3905 Warnings CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.
  • Page 29 LED3905 Caution High voltages are used in the operation of this product. Do not open the product's casing. Refer servicing to qualified service personnel . Caution To prevent fire or electrical shock hazard, do not expose the main unit to do not place objects rain or moisture,...
  • Page 30 LED3905 Caution Never stand on, lean on, push suddenly the product or its stand. You should Pay special attention to children. Caution Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.
  • Page 31: Control Panel Button Function

    LED3905 Control Panel Button Function VOL+ : Volume up. VOL - : Volume down. CH+: TV channel up. CH- : TV channel down. MENU : Press to select the main menu. SOURCE : Select the input signal. POWER : Turn the TV on or off.
  • Page 32 LED3905 Optional Configuration as below: Connect the USB to the USB jack on the set. NOTE ● It is only 500 mA MAX of DC current output when you connect with USB jack ● To ensure the Mobile HD works well, you should use other power supply for the Mobile HD.
  • Page 33: Remote Control

    LED3905 Remote control : Press this button to Turn the TV on or off. Press this button to mute or restore sound. NICAM/A2: In the TV condition, press this key to select the stereo mode. ASPECT: Press to adjust picture ratio.
  • Page 34 LED3905 :Press to play backward (Used for models with MEDIA function only) SIZE: Display the top, bottom or all of page to read easily in Teletext mode. : Press to play forward. (Used for models with MEDIA function only) INDEX: Press this button to go to the index page in Teletext.
  • Page 35 LED3905 Installation Guide If this is the first time you are turning on the TV and there are no programs in the TV memory, the installation Guide menu will appear on the screen. 1. Press the “///” button to select the local language.
  • Page 36 LED3905 Channel Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu 1.Auto Scan Press “/” button to select “Auto Scan” Press “/” button to select country and press the“/” button to select mode.
  • Page 37 LED3905 2.Analog Manual Scan Press “/” button to select “Manual scan” and press the “” button to Analog manual scan. Press “MENU” button to return the previous menu. Press “EXIT” button to exit the menu. .Digital Manual Tuning Press “/” button to select “Diigital Manual Scan”...
  • Page 38 LED3905 PICTURE You can select the type of picture, which best corresponds to your viewing. Press the “MENU” button to enter the OSD menu. Then press “/” button to select the “PICTURE” menu. Press “/” button to select “Picture Mode” and press the “/” button to select.
  • Page 39 LED3905 SOUND You can select the type of sound, which best corresponds to your listening. Press the “MENU” button to enter the OSD menu. Then press “/” button to select the “SOUND” menu. Press “/” button to select “Sound Mode” and press the “/” button to select mode.
  • Page 40: Lock System

    LED3905 LOCK SYSTEM Press the “MENU” button to enter the OSD menu. Then press “/” button to select the “Lock System” menu. The default password is “0000”. Note: The administrator password is “8899’’. 1. Press “/” button to select “Enable’’and then press “/” button to select “On” or “Off”...
  • Page 41 LED3905 SETUP Press the “MENU” button to enter the OSD menu. Then press“/” button to select the “SETUP” menu. 1. Press “/” button to select “OSD Language” and press the “/” button to select the OSD language which you desire.
  • Page 42 LED3905 Press the “MENU” button to enter the OSD menu. Then press “/’’ button to select the “PC Setting” menu. (Only available in PC mode). 1. Press “/” button to select “Auto Adjust” menu and press the “”button to auto adjustment.
  • Page 43 LED3905 Favorite List When the source is selected as DTV, users can enter Favorite List by pressing “FAV” button. The “Favorite List” window is illustrated as follows: press the “/” button to select the favorite list number You can Program Information When the source is selected as DTV, you can press “display”...
  • Page 44 LED3905 Electronic Program Guide(EPG) Electronic Program Guide (EPG) provides program information which will be broadcasted now or in the future. The system will display EPG window by pressing “EPG” button. DATE and TIME information is displayed on the right of the window. The left side shows all channels. The right side shows the programs in the channel.
  • Page 45: Usb Features

    LED3905 USB Features Press the “SOURCE” button to change to the “MEDIA” source. Photo 1. Press the “◄ / ►” button enter the “PHOTO” option, and press enter button to enter 2.Press ◄ / ► button to select drive disk you want to watch, then press enter button to enter.
  • Page 46 LED3905 Music 1. Press ◄ / ► button to select MUSIC in the main menu, then press enter button to enter 2. Press ◄ / ► button to select drive disk you want to watch, then press enter button to enter 3.
  • Page 47 LED3905 Text 1. Press ◄ / ► button to select TEXT in the main menu, then press enter button to enter. / 2. Press button to select drive disk you want to watch, then press enter button to enter 3. Press “BLUE” button to enter the sub menu to set.
  • Page 48: Operation

    LED3905 Operation In DTV source, press the “MENU” button to enter the OSD menu. Then press“◄ / ►” button to select the “Setup” menu. 1. Press “/” button to select “PVR Settings” and press the “ENTER”or “►” button to enter.
  • Page 49 LED3905 b) Press “◄ / ►” button to select “Device List” and press the “ENTER” button to the sub menu. c ) Press “/” button to select “Scheduled Record” and press the “ENTER” button to set. Note: 1. The U disk will be formatted when in format, please do not store important files in the U disk.
  • Page 50: Specifications

    LED3905 SPECIFICATIONS RGB INPUT Horizontal Vertical Mode Resolution Frequency Frequency (KHz) (HZ) 720x400 31.5 640x480 31.5 SVGA 800x600 37.9 1024x768 48.4 WXGA 1360x768 47.7 HDMI INPUT Horizontal Vertical Mode Resolution Frequency Frequency (KHz) (HZ) 640 x 480 31.47 59.94 480i 720 x480i 15.73...
  • Page 51: Troubleshooting

    LED3905 Trouble Shooting Before consulting service personnel, check the following chart for possible solutions. PROBLEM SOLUTION ●Make sure the power cord is plugged in. ●The batteries in the remote control may be TV will not turn on Exhausted; replace the batteries.
  • Page 52: Product Fiche

    LED3905 Product fiche LED3905 • Supplier’s name: Manta S.A. • Supplier’s model: LED3905 • Energy efficiency class: A • Visible screen diagonal in centimetres and in inches: 99 cm; 39” • On-mode power consumption: 59 W • Annual energy consumption: 86 kWh/year •...
  • Page 53 LED3905 INFOLINIA SERWISOWA tel: +48 22 332 34 63 lub e-mail: serwis@manta.com.pl od poniedziałku do piątku w godz. 9.00-17.00 Producent zastrzega sobie możliwość wprowadzenia zmian w specyfikację produktu bez uprzedzenia. Strona główna www.manta.com.pl Strona wsparcia technicznego www.manta.info.pl SERVICE INFOLINE tel: +48 22 332 34 63 or e-mail: serwis@manta.com.pl from Monday to Friday.
