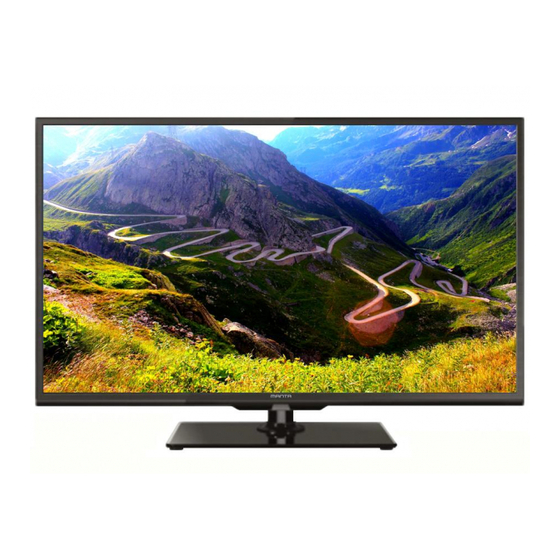

Manta LED5002 Manual

Manta LED5002 Manual

32"-50" tv
Hide thumbs Also See for LED5002:

Advertisement

Quick Links

Safety Warning and Notice

Indicate the behaviors that must be
prohibited
Under Following Conditions
Power failure or unstable voltage.
Abnormal sound or smell from the device.
AC power cord is damaged.
TV set is damaged due to falling off, knock or impact.
Any liquid or foreign matters enter into the TV set.
● If coal gas or other flammable gases leak, do not unplug the power cord of the TV set or other electric
appliances; instead, close the valve of the gas immediately and open the doors and windows.
Only use
100-
240VAC 60/50Hz power supply.
This TV must be connected to a three pin socket outlet for safety.
All cables can be connected or pull out only after power supply is turned off.
Do not fix the TV set on instable position, or else it may cause falling off, damage, or even
fire.
Do not put the TV set in the environment:
1. With direct sunshine, moisture, overheating, undercooling or heavy dust;
2. With flammable or explosive substance;
3. With flammable or corrosive gas;
4. In bathroom, kitchen, etc.
Do not use damaged or improper power socket, and ensure that the plug and socket are
connected properly.
Keep the power plug and socket free of dust and metal pieces.
Do not damage the power cord:
1. It is prohibited to refit the power cord;
2. Do not put heavy object on the power cord;
3. Keep the power cord away from heat source;
4. Do not drag the power cord when unplugging.
Do not connect too many appliances to one power strip, or else it may cause fire due to high
power consumption.
Do not let open flame (e.g. lit candle) approach the TV set, or else it may cause electric shock
or fire.
Do not put the container filled with water on the TV set, to avoid electric shock or fire caused
by water drop of splashing.
Do not penetrate any sharp object, metal or liquid into the signal connector or air vents, to
avoid short circuit and product damage as well as electric shock.
The slots on the case is designed to release heat so as to assure that all inside components
will not reach an extra high temperature and can work normally for a long time. Please do not
cover the holes while place it.
Do not touch the plug with wet hands, or else it may cause electric shock.
Indicate the operations that must be
performed
Turn off the TV set immediately,
unplug the power cord from the
power outlet, and contact
authorized maintenance
personnel.
Warning
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED5002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manta LED5002

  • Page 1: Safety Warning And Notice

    Safety Warning and Notice Indicate the behaviors that must be Indicate the operations that must be prohibited performed Under Following Conditions Turn off the TV set immediately, ● Power failure or unstable voltage. unplug the power cord from the ● Abnormal sound or smell from the device.
  • Page 2: Mounting And Connecting

    Safety Warning and Notice Warning Do not turn on the TV set in thunderstorm weather; instead, unplug the power plug and antenna connector to avoid lightning strike. Do not disassemble the TV set by yourself, or else it may cause electric shock or fire. Contact qualified personnel for maintenance.
  • Page 3: Mounting The Tv Set

    Mounting and Connecting Mounting the TV set Fasten the base supporting cover to the back cover of machine (It needn't to operate this step when base support cover had been installed.), and then Insert base assembly to supporting shield hole of complete machine back cover as illustrated direction of arrow, to make supporting shield and supporting hole center in the same line, finally fasten the screw.
  • Page 4: Connecting Peripheral Equipment

    Mounting and Connecting Connecting peripheral equipment You can connect various devices to the TV set and view high quality images. If the video device has HDMI, YPbPr/YCbCr, AV, PC, SCART and other video output/input ports. You can select one of them and connect to corresponding input or output ports of the TV set.
  • Page 5 Mounting and Connecting VGA input connection PC audio cable VGA cable Y Yellow (VIDEO signal cable) W White(AUDIO-L signal cable) R Red (AUDIO-R signal cables) Antenna connection Connect to the devices with AV output Connect to the devices with AV interface (e.g.
  • Page 6: Panel Control Keys

    Panel Control Keys 1) Power LED indicator and remote receiving window. 2) SOURCE: Press this key to enter the menu of signal source and choose signal source. 3) CH+/CH-: Press these two keys to select the channel. In OSD menu, press the two keys to adjust the items, which have the same functions as ▲/▼...
  • Page 7 Remote Control Remote Control Key Instruction POWER ( Switch the receiver in and out of standby mode. WIDE (16:9) Switch picture ratio: Auto, 4:3, 16:9, Zoom1, Zoom2. Panorama, MUTE ( Switch off sound when viewing a program. Numerical Input number. Press ▲/▼/t CURSOR KEY key to select menu item or press t...
  • Page 8: Basic Operations

    Remote Control Hold: Press this key to Toggle hold on or off for current display pages. If the page is not held, it will become held, thus preventing it from being updated. If the page is currently held, the hold will be removed thus allowing the page to update.
  • Page 9: Signal Source Selection

    Basic Operations Signal source selection Input Source Press "SOURCE" key either on the remote control or on the panel, and the menu of "Input Source" will be displayed on the screen (Fig.4). Press "▲ /▼ " key on remote control or "CH+/CH-" key on the panel to select the signal source. Press SCART ''OK"...
  • Page 10 Basic Operations DTV Manual Tuning DTV Manual Tuning Press "MENU" key, CHANNEL menu shows on the screen. Press "▲ /▼ " UHF CH 21 key to select DTV Manual Tuning. Press "OK" key to enter into DTV Manual Tuning menu (Fig.6). Press "t "...
  • Page 11 Basic Operations Software Update(USB) Update software by U disk. PICTURE Press "MENU" key, CHANNEL menu shows on the Picture Mode Standard Color Temperature Standard screen. Press "t " key to select PICTURE (Fig.9), Aspect Ratio 16:9 Noise Reduction Middle then press "▲/▼" key to choose the item you'd like to PICTURE PC Setting adjust or set.
  • Page 12 Basic Operations SOUND Press "MENU" key, CHANNEL menu shows on the screen. Press "t " key to select SOUND (Fig.10), Sound Mode Standard Auto Volume then press "▲/▼" key to select the item you'd like to Surround Sound AD Switch adjust or set, Press "OK"...
  • Page 13 Basic Operations PVR File System: Press "OK" key to enter into PVR File System Select Disk submenu(Fig.12). Choosing storage disk in "select disk" submenu , Press Check PVR File System Start "▲ /▼ " key to select "Check PVR File System", then the machine start USB Disk check by pressing "OK"...
  • Page 14: Rec Option

    Basic Operations Set Password: Press "OK" key, then a dialogue box of "Set Password" appears on the screen. Press the numerical key to input old password, and input new password twice to complete the password change and return to last menu. Note: Please make sure you remember your new password after changing. Otherwise, system will lock forever when system lock is on .
  • Page 15: Epg Option

    Basic Operations Icon Description Indicates that program is in the suspended state. Indicates the time when the program suspended.. Indicates the longest cache time that Udisk can provide. Indicates the Current program time. Play: Select this icon, press "OK" key to Play the video or set A-B repeat.
  • Page 16 Basic Operations ★ Remote Control Shortcut Keys The "INDEX", "ZOOM", "REVEAL", "TTX", "HOLD", "LIST", "LANGUAGE", "RADIO" keys on the remote control are used for USB operation. Press "t " key to select the adjustment sort menu, which includes 4 sorts: PHOTO, MUSIC, MOVIE, TEXT. Press "t "...
  • Page 17: Troubleshooting

    Basic Operations Set A: Press "t " key to select this function, press "OK" key to set A and B, the film will circulating play in the time of A to B. SF: Press "t " key to select this function, press "OK" key to slow down play speed. Press "PLAY" key to play normally.
  • Page 18: Technical Specifications

    Technical Specifications Master unit Panel size 32" (HD) 32" (FHD) Max. Resolution 1366×768 1920×1080 Best Resolution 1360×768@60Hz 1920×1080@60Hz Pixel Pitch 0.51075mm×0.51075mm 0.36375mm×0.36375mm Active Area 697.685mm×392.256mm 698.40mm×392.85mm Power Supply 100-240VAC 60/50Hz Power Consumption of Speaker 8W+8W Excluding base Unpacking: 738×451×47(mm ) Unpacking: 738×492×47(mm ) Net Weight: 8.5kg Dimension (L×H×W) and Weight...
  • Page 19 Technical Specifications Panel size 50" Max. Resolution 1920×1080 Best Resolution 1920×1080@60Hz Pixel Pitch 0.5708mm×0.5708mm Active Area 1095.84mm×616.41mm Power Supply 100-240VAC 60/50Hz Power Consumption of Speaker 8W+8W Unpacking: 1134×660×47(mm ) Net Weight: 16.5kg Excluding base Dimension (L×H×W) and Weight Packing: 1250×782×150(mm ) Gross Weight: 20kg Including base Unpacking: 1134×717×47(mm )
