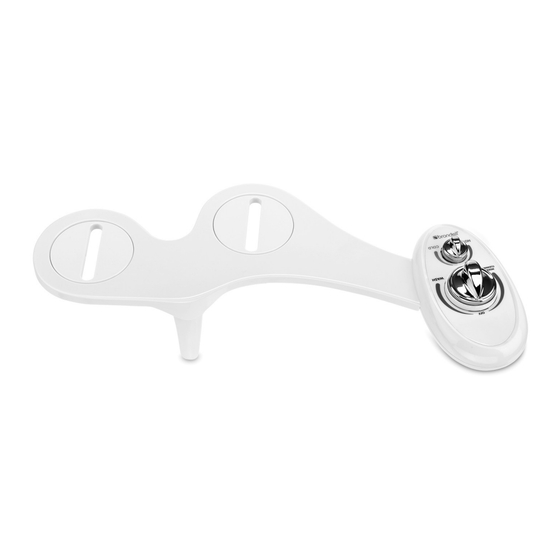

brondell SouthSpa LH-20 Owner's Manual

Bidet attachment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
LH-20 Bidet Attachment
Dual-Temperature / Single Nozzle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SouthSpa LH-20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for brondell SouthSpa LH-20

Summary of Contents for brondell SouthSpa LH-20

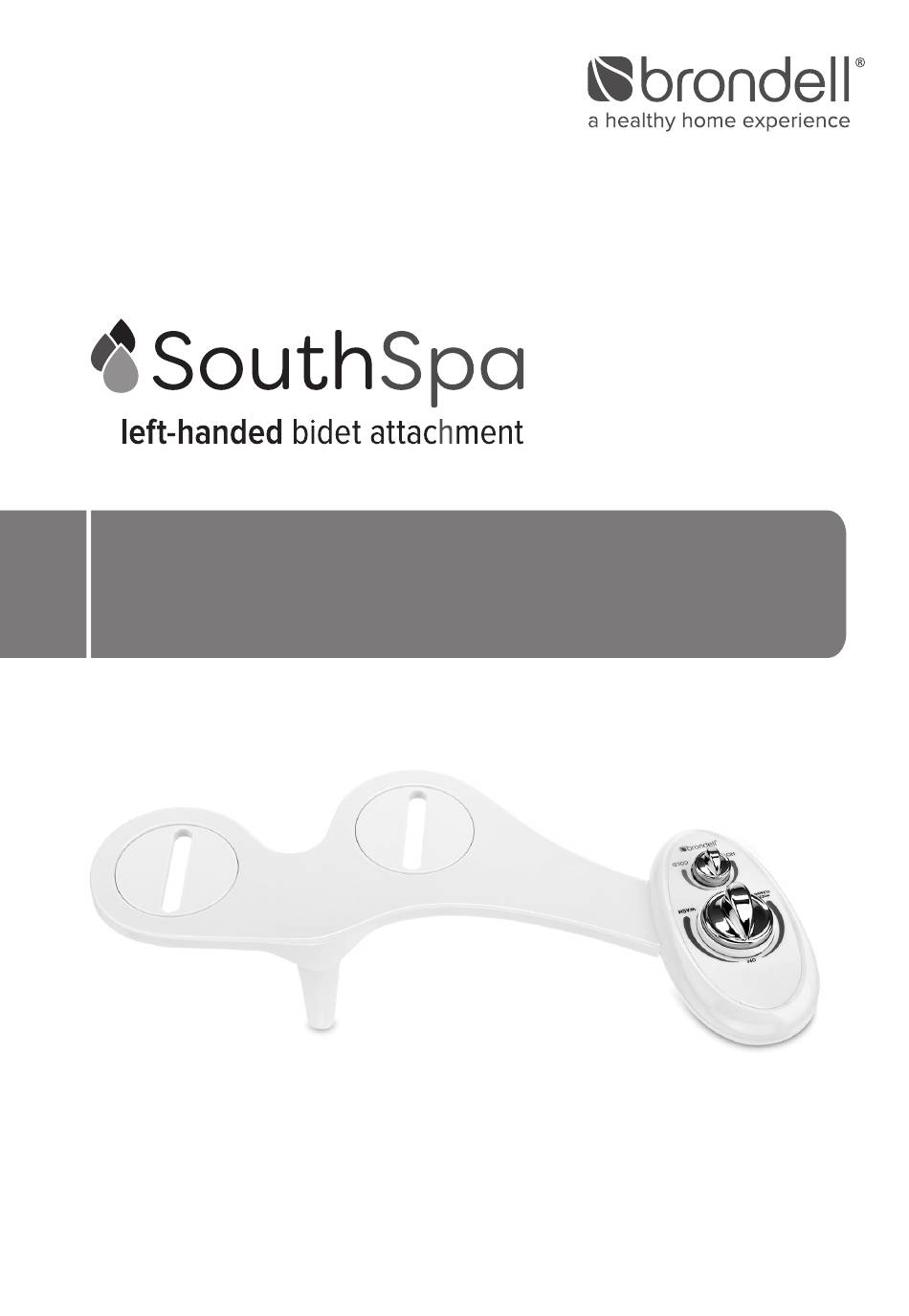

  • Page 1 OWNER'S MANUAL LH-20 Bidet Attachment Dual-Temperature / Single Nozzle...
  • Page 2 Attach Proof of Purchase to This Page Adjunte prueba de compra a esta página Joindre une preuve d’achat à cette page...

  • Page 3: Table Of Contents

    CONTENTS PRODUCT INFORMATION Product Features . . . . . . . . . . . . . . . . . . . . Page 2 Parts List .

  • Page 4: Product Information

    PRODUCT INFORMATION PRODUCT FEATURES • High-quality ABS material with full body panel • Hygienic retractable nozzle • Self-cleaning nozzle feature • Adjustable temperature for ambient and warm water washes • Positionable nozzle • Adjustable water pressure • Ceramic core internal valve with patented uni-body construction for safety •...

  • Page 5: Parts List

    PARTS LIST Bidet attachment with turn-dial control and adjustable brackets Cold water 7/8" 25” braided metal Large rubber washer (2) T-valve Connector bidet hose Hot water T-Valve with 1/4" Hot water flex tubing Small rubber washer (2) 1/ 4 " Pressure Connector &...

  • Page 6: Product Dimensions

    PRODUCT INFORMATION (cont.) PRODUCT DIMENSIONS 3 . 7 " 1 . 6 " at deepest point on control panel 6 .5" 10 . 6 " 5 .5" 2 . 7 " 0 .4" at deepest point on body 3 .5" 8 .

  • Page 7: Product Installation

    . If you do not have access to the Fill Valve under the toilet tank, contact Brondell Customer Service at We may be able to guide you through the process . Check the size of the hot water supply connection (most likely under the sink/wash basin) .

  • Page 8: Connecting The Cold Water Supply

    PRODUCT INSTALLATION (cont.) CONNECTING THE COLD WATER SUPPLY 1 . Remove existing toilet seat a . Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts . Alternatively, you may need to loosen mounting bolts underneath the seat . b .
  • Page 9 CONNECTING THE COLD WATER SUPPLY (cont.) 4 . Connect Bidet Hose to T-Valve a . Connect one end of the braided metal bidet hose to the remaining open side of the installed T-valve . Step 4a IMPORTANT If you are only connecting the cold water supply, you must install the Hot Water Supply Cap (provided - see Page 3) over the hot water connection on your SouthSpa (see diagram) .

  • Page 10: Connecting The Hot Water Supply

    PRODUCT INSTALLATION (cont.) CONNECTING THE HOT WATER SUPPLY 1 . Connect the hot water supply a . Locate the hot water supply line in your bathroom under your sink/washbasin and turn the water supply valve all the way off . b .
  • Page 11 CONNECTING THE HOT WATER SUPPLY (cont.) 4 . If it hasn't been removed already, unscrew the Pressure Cap covering the Pressure Connector . a . Slide the Pressure Cap over the open end of the of Hot Water Flex Tubing with the inside threads facing towards the open end .

  • Page 12: Installing The Bidet Attachment

    PRODUCT INSTALLATION (cont.) INSTALLING THE BIDET ATTACHMENT 1 . Install Bidet Attachment on Toilet a . Place bidet attachment on the toilet so the nozzle is as close to the back of the toilet bowl as it will go . This will vary by toilet . b .
  • Page 13 INSTALLING THE BIDET ATTACHMENT (cont.) 3 . Connect Hot Water Supply to Bidet Attachment a . Slide the Pressure Cap over the open end of the of Hot Water Flex Tubing with the inside threads facing towards the open end . b .

  • Page 14: Product Operation

    Be sure to set the water temperature for your hot water heater at or below 120°F (49°C) and use extreme caution when mixing hot and cold water during use . Brondell is not liable for any misuse of product or failure to use caution when connecting to hot water .

  • Page 15: Maintenance

    MAINTENANCE CLEANING THE SOUTHSPA To clean the nozzle, gently pull down on the head of the nozzle, and use a toothbrush or soft cloth and mild detergent (such as dish soap) . You may also unscrew the nozzle tip cap for a more thorough cleaning or use a toothpick if any nozzle holes are plugged with hard water buildup .

  • Page 16: Warranty

    . BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect . BRONDELL will not charge for labor or parts in connection with warranty repairs for the first three years from date of purchase on all products except those that may be subject to commercial use limitations .
