OPERATION
Both green indicator lights will be ON when power is present and the IG1240RC
is operating properly. If one of the indicator lights is OFF, check the breakers to
make sure that both are on and not tripped. If one or both of the green indicators
are OFF, and the red indicator is on, the IG1240RC is no longer protecting.
Replace the unit.
FIVE YEAR PRODUCT WARRANTY
SURGE PROTECTION DEVICES
If within five (5) years from the date of purchase, this surge protection device fails
due to defect in material or workmanship, Intermatic Incorporated will repair or
replace it free of charge. The warranty does not apply to: (a) damage caused by
accident, abuse, mishandling, dropping; (b) units which have been subject to
unauthorized repair, opened, taken apart; (c) units not used in accordance with
directions; (d) damages exceeding the cost of the product. Some states do not
allow a limitation of damages, so the foregoing limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. This warranty service is available by either (a)
returning the product to the dealer from whom the unit was purchased, or
(b) by contacting Intermatic at 1-800-270-7227.
For complete information regarding the Warranty on this product, refer to the
enclosed form, "FIVE YEAR LIMITED PRODUCT and CONNECTED
EQUIPMENT WARRANTY for INTERMATIC Panel Guard Residential SURGE
PROTECTION DEVICE".
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
HTTP: WWW.INTERMATIC.COM
158IG11162
MODEL IG1240RC
INSTALLATION INSTRUCTIONS

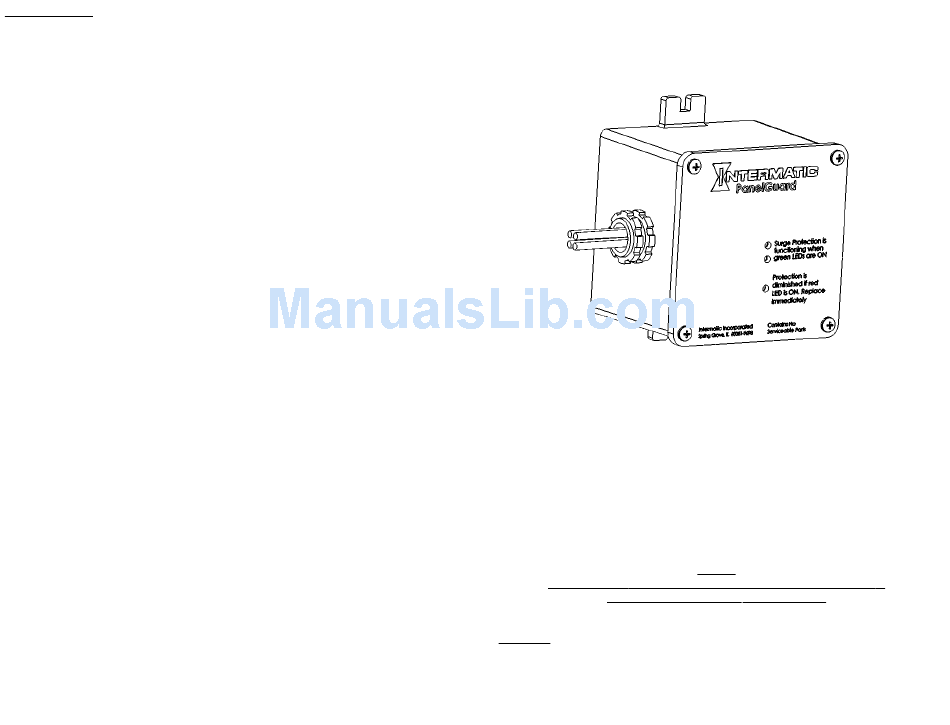

(FIG.1)
Electricity is dangerous; follow safety rules. Never work on equipment with the
electricity turned "ON". Be absolutely certain the power is turned "OFF" to the
circuit or device you are installing. Be sure you read and understand all of these
installation steps before you begin to install this Surge Protection Device. For
your protection, check and follow your local electrical codes. Do not touch
electric circuits or devices when you are wet or standing on a wet surface. Use
a circuit tester or AC voltmeter to be sure the electricity is "OFF" before you
touch wires or devices. This device is suitable for use on a circuit capable of
delivering not more than 25,000 rms symmetrical ampers, 240 volts maximum.
ELECTRICAL GROUND IS REQUIRED FOR THIS UNIT TO
FUNCTION PROPERLY AND SAFELY!
STEP 1
Select a mounting location for the Surge Protection Device (SPD) which will
allow convenient connection to the panel while keeping the lead wires as
short as possible. Use an AC voltmeter or circuit tester across two breaker
outputs to confirm that there is 240 volts between them. If the voltage is 0,
select a different breaker of equal amperage.
CAUTION
NOTE:
Advertisement
Related Manuals for Intermatic IG1240RC
Summary of Contents for Intermatic IG1240RC
- Page 1 OPERATION Both green indicator lights will be ON when power is present and the IG1240RC is operating properly. If one of the indicator lights is OFF, check the breakers to make sure that both are on and not tripped. If one or both of the green indicators are OFF, and the red indicator is on, the IG1240RC is no longer protecting.
- Page 2 STEP 2 Check all parts to be sure none are missing. You should have: QUANTITY DESCRIPTION IG1240RC Panel Protector with a threaded connector and locking nut. Conduit Nut STEP 3 Select the mounting for the protector at the panel. If you have a panel that is not like the diagram (Fig.
Need help?
Do you have a question about the IG1240RC and is the answer not in the manual?
Questions and answers

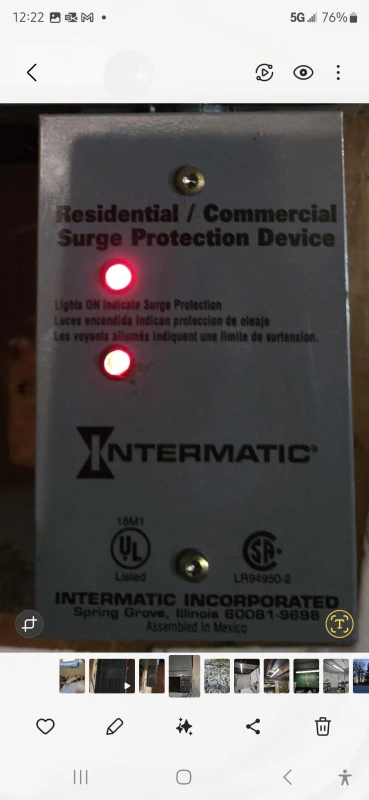

I.have an old surge protector IG1240R it has 2 red lights is this normal or does it need replaced?
