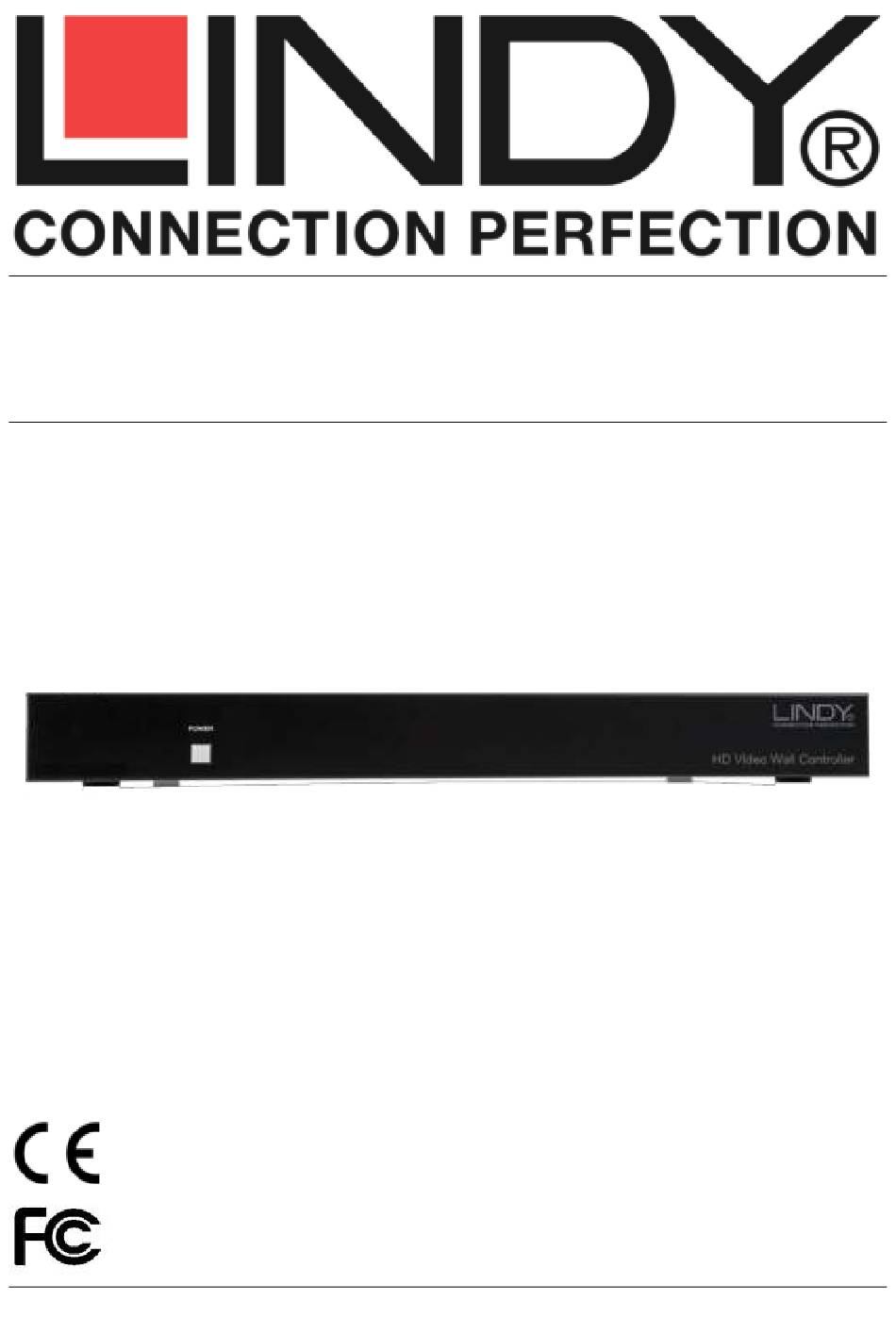

- Page 1 HDMI 1:4 Video Wall Controller Scaler User Manual Eng li sh No. 38134 www.lindy.com Tested to Comply with FCC Standards For Home and Office Use! © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (March 2016)
- Page 3 English Introduction Thank you for purchasing the LINDY HDMI Video Wall Controller Scaler. The HDMI Video Wall Controller Scaler allows an HDMI input source to be freely arranged on 4 displays (TV or monitor) and or cascaded using multiple units to extend the HDMI signal to even larger arrays.
- Page 4 User Manual English Overview Front Panel MATRIX/ OUTPUT DUAL/WALL LOCK 720P POWER MENU INPUT SAVE RECALL Power Switch the Scaler On/Off Press and hold for 3-5 seconds with the Scaler already switched off to reset to Factory Default Rear Panel HDMI IN HDMI OUT CONTROL...
- Page 5 This cascading can be repeated up to 75 layers allowing a maximum of 225 displays to be connected. Configuration To begin the configuration process please download the software application from www.lindy.com, alternatively you can configure the Scaler using RS-232 or Telnet as described later in this section.
- Page 6 User Manual English System Configuration Connect Interface 1. Click Connect to connect to the Scaler, at this point the settings will refresh (other than Image Adjust which is handled separately. If you are using multiple Scalers, select the Scaler you want to connect to using the MAC dropdown box and then press connect.
- Page 7 User Manual English Video Wall Configuration TV Wall (1) 1. Bezel Correction can be switched ON or OFF here according to your requirement 2. If you are using multiple Scalers ensure that you select ALL IP before setting Bezel Correction to ON/OFF 3.
- Page 8 User Manual English TV Wall (3) 1. Output H&V Value setup allows you to adjust individual outputs A – D to a specific position and from horizontal and vertical position of 0 – 255. This setting is used to fine tune your TV wall array in case of issues with the default set up.
- Page 9 User Manual English I/O Setup 1. All settings under I/O Setup can be amended for a single TV Wall Scaler or multiple TV Wall Scalers. If using multiple Scalers click on ALL IP for each setting which you want to use with all Scalers. Parameters and default value are as stated in RS-232 command section.
-
Page 10: Rs-232 &Telnet Control
User Manual English RS-232 &Telnet Control RS-232 Protocols TV Wall Scaler Remote Control Assignment Assignment Baud Rate 115200bps Data Bit None Parity None Flow Control Stop Bit RS-232 & Telnet Commands Commands will be not executed unless followed with a carriage return (0x0D) and commands are case-sensitive. - Page 11 User Manual English Item Command Parameter Description Request OSD Display Timeout setting ROSDT 0~50 (50) Set OSD Display Timeout in Second SOSDT 2~50 Request OSD Gain Correction ROSDG 0~10 (2) Set OSD Gain SOSDG 0~10 Correction Set OSD Information ON/OFF Status SOSDI OSD reset to factory...
- Page 12 User Manual English Item Command Parameter Description 0~255 0=OFF, 1=10min, Request Ethernet RETIME 2=20min, 3=30min, Timeout 4=40min, 5=50min, SETIME 0~6 Set Ethernet Timeout 6=60min IP000~255 Ethernet (continued) IP010~255 IP020~255 IP030~255 MA000~255 MA010~255 RLINK Read Link MA020~255 MA030~255 GA000~255 GA010~255 GA020~255 GA030~255 RMUTE 0=UNMUTE, 1=MUTE...
- Page 13 User Manual English Item Command Parameter Description 6=2x3, 7=3x2, 8=3x4, 9=4x2, 10=4x3, 11=4x5, 12=1x2, 13=2x1, 14=1x3, 15=3x1, 16=1x4, 17=4x1, 18=2x4, 19=3x5, 20=5x4, 21=5x3, 22=6x2, 23=6x3 SFAVE 1~5 Save Favorite Setting Recall Favorite RFAVE 1~5 Setting TV Wall (continued) Request Bypass 0=non Bypass, Setting 1=Bypass...
- Page 15 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 16: Recycling Information
EU ha tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No 38134 Edition, March 2016 www.lindy.com...
