- Page 1 HDMI 4x1 PiP Video Processor User Manual Eng lis h No. 38130 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group - FOURTH EDITION (October 2019)
- Page 3 User Manual English Safety Instructions ! WARNING ! Please read the following safety information carefully and always keep this document with the product. Failure to follow these precautions can result in serious injuries or death from electric shock, fire or damage to the product. Touching the internal components or a damaged cable may cause electric shock, which may result in death.
- Page 4 English Introduction Thank you for purchasing the Lindy HDMI 4x1 PiP Video Processor. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

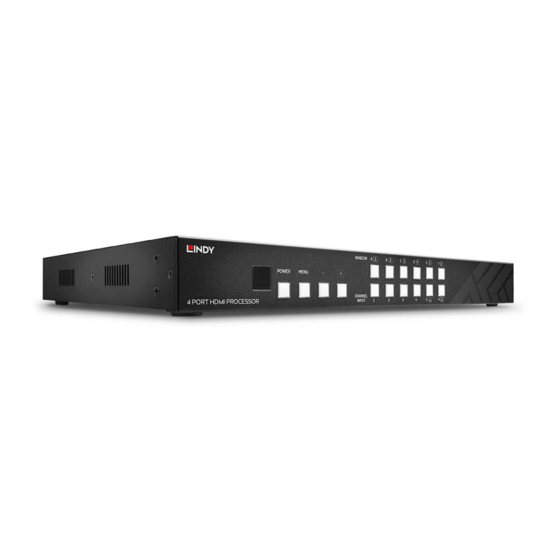

- Page 5 User Manual English Overview & Operation Front Panel 1. IR Window: Receives IR commands from the included IR remote. Power button: Switch on and off the device. Menu: Press to launch the OSD menu & make selections in the OSD. + / - Buttons: Use these buttons to move up and down in the OSD.
- Page 6 User Manual English Remote Control 1. Power: Press to power the unit on or place it in stand-by mode. Press to show the unit’s firmware 2. Info: version. 3. Ch 1 – 4: Press to sequentially switch through the available inputs for each associated window channel (1 –...
- Page 7 User Manual English Connection Diagram Video Output Modes Window A – The input selected for channel 1 will be displayed. Window B – The input selected for channel 2 will be displayed. Window C – The input selected for channel 3 will be displayed. Window D –...
- Page 8 User Manual English Window G – The input selected under channel 1 will be displayed full screen, with the inputs selected under channels 2 – 4 will show (Picture in Picture) across the bottom of the screen. Window H – The inputs selected under channel 1 – 4 will be displayed in a 4x1 grid.
- Page 9 User Manual English When adjusting the position of a channel, the horizontal position is from left to right of the display, starting from the left edge of the channel. The vertical position is from top to bottom of the display, starting at the top edge of the channel.
- Page 10 User Manual English RS-232 & Telnet Commands Use TCP / IP (Port 23) for Telnet communication. All commands are case-sensitive and will not be executed unless followed with a carriage return. Telnet Control Before attempting to use telnet control, please ensure that both the Video Processor (via the ‘CONTROL’ port) and the control console are connected to the same active network.
- Page 11 User Manual English The above command prompt entry will open the Telnet interface for the Video Processor. Type ‘?’ to list all the available command, please refer to the RS-232 & Telnet commands section of this manual on page # for a description of each command. Type ‘IPCONFIG’...
- Page 12 User Manual English On-Screen Display Menu (OSD)
- Page 13 User Manual English...
- Page 14 User Manual English...
- Page 15 CE/FCC Statement CE Certification LINDY declares that this equipment complies with the European CE requirements relating to EMC and RoHS. CE Konformitätserklärung LINDY erklärt, dass dieses Equipment den europäischen CE-Anforderungen in Bezug auf EMV und RoHS entspricht. FCC Certification This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 16: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
