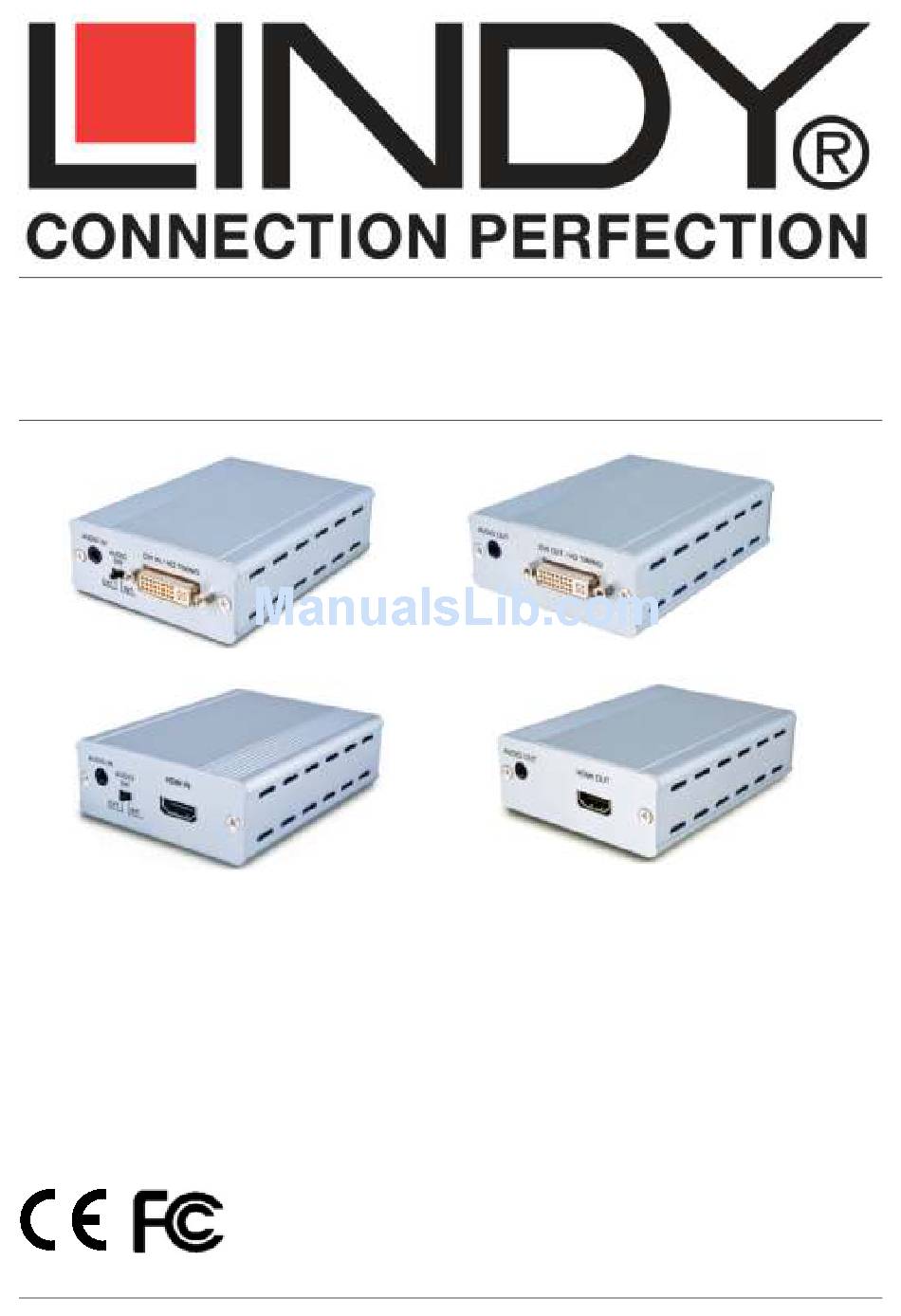

- Page 1 No. 38196 - 3G SDI to DVI-D No. 38197 - DVI-D to 3G SDI No. 38198 - 3G SDI to HDMI No. 38199 - HDMI to 3G SDI www.LINDY.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (July 2012)
- Page 3 Note – No support for High-Bandwidth Digital Content Protection (HDCP) Package Contents 38196 – SDI to DVI-D Converter / 38197 – DVI-D to SDI Converter / 38198 – DVI-D to HDMI • Converter / 38199 – HDMI to DVI-D Converter Multi-country DC 5V 2.6A power adapter with locking connector –...

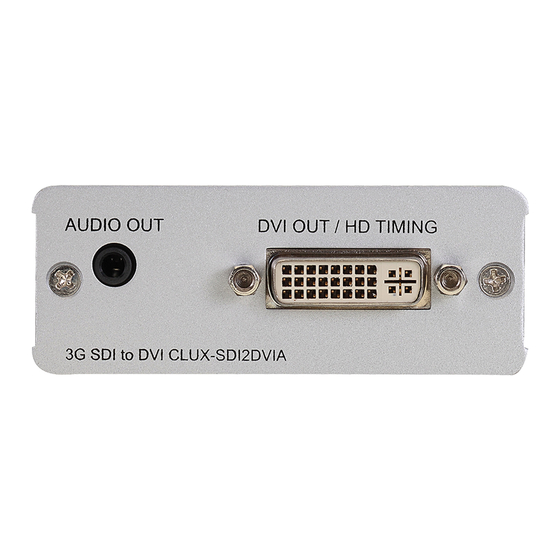

- Page 4 English User Manual Specifications 38196 - SDI to DVI Converter BNC input for SDI signals • DVI-D Single Link output • 3.5mm stereo audio output • SDI input formats - 480i, 576i, 720p at 50/59.94/60fps, 1080i at 50/59.94/60fps, 1080p at •...
- Page 5 4. SDI IN/OUT - connects to the SDI input/output with BNC connector – use this connection for Extender setup DVI-D/HDMI connections 38196 – SDI to DVI-D Converter 38197 – DVI-D to SDI Converter 38198 – SDI to HDMI Converter 38199 – HDMI to SDI Converter 1.
- Page 6 English User Manual Installation Before connecting any devices, please ensure everything is powered off. Connect the 5V DC power supply • Converting video signals Connect the video source to the selected Converter using an appropriate cable • Connect the output device to the Converter using an appropriate cable •...
- Page 7 English User Manual Connection Diagrams - Converters 38196 - SDI to DVI Converter HD-SDI Source e.g. SDI Camera Coaxial cable with BNC connector Power Supply 38196 SDI to DVI Converter DVI Cable 3.5mm Audio Cable Amplifier TV/Display/Monitor Recording Device...
- Page 8 English User Manual 38197- DVI to SDI Converter Laptop/Netbook Alternative Audio 3.5mm Audio Cable DVI Cable 38197 DVI to SDI Power Supply Converter Coaxial cable with BNC connector SDI Monitor...
- Page 9 English User Manual 38198 - SDI to HDMI Converter HD-SDI Camera Coaxial cable with BNC connector Power Supply 38198 SDI to HDMI Converter HDMI Cable Amplifier Recording Device HDMI TV / Monitor...
- Page 10 English User Manual 38199 – HDMI to SDI Converter HDMI Camera Laptop/Netbook Alternative Audio Source HDMI Cable 38199 Power Supply HDMI to SDI Converter Coaxial cable with BNC connector SDI Monitor...
- Page 11 User Manual Connection Diagrams– Extenders Provide power to both sender and receiver using the 5V DC power adapter DVI-D HDMI Source Source 38199 38197 Extension via coaxial cable with BNC connectors up to 100m 38196 38198 DVI-D HDMI Output Output...
- Page 12 LINDY gewährt für dieses Produkt über die geset etzliche Regelung in Deutschland hinaus eine zweijährige Hers rstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden n Sie auf der LINDY Website aufgelistet bei den AGBs. WEEE (Waste of Electrical and E Electronic Equipment), Recycling of Electronic Products...
