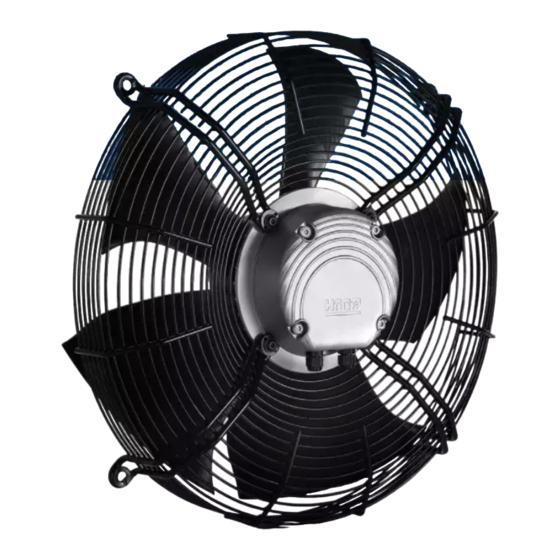

HIDRIA R10R-63LPS-ES50B-03C11 User Manual

Fan with electronically commutated external-rotor motor

Hide thumbs

Table of Contents

Quick Links

FAN WITH ELECTRONICALLY COMMUTATED EXTERNAL-ROTOR MOTOR

& Note :

Be sure to familiarize yourself with these instructions before working on this unit. Not paying attention to these

warnings and instructions may lead to malfunctions and failures or may seriously endanger human life.

Need help?

Do you have a question about the R10R-63LPS-ES50B-03C11 and is the answer not in the manual?

Questions and answers

Summary of Contents for HIDRIA R10R-63LPS-ES50B-03C11

Page 1 FAN WITH ELECTRONICALLY COMMUTATED EXTERNAL-ROTOR MOTOR Fan Code: 0310-4-0139 Fan type : R10R-63LPS-ES50B-03C11 & Note : Be sure to familiarize yourself with these instructions before working on this unit. Not paying attention to these warnings and instructions may lead to malfunctions and failures or may seriously endanger human life.
Page 2 The risk of pulling into rotating part. Do not wear any loose clothing (e.g. tie) or jewellery. Long hair must be protected with a cap. Risk of injury! 2 / 8 © Copyright HIDRIA d.o.o., All rights reserved. Document is subject to change without prior notification.
Page 3 External sensor power supply 10VDC (max 30mA). Maintenance free ball-bearings and other components through the expected life-time. The device is compatible with Modbus protocol RTU. Please read additional instructions about Hidria EC Modbus parameters and additional information for general purpose using MODBUS (www.modbus.org) .
Page 4 - IEC 60034-1 - Data on the nameplate established at a point of nominal load according to standard for Rotational electrical machines. 4 / 8 © Copyright HIDRIA d.o.o., All rights reserved. Document is subject to change without prior notification.
Page 5 3. Push the cable end into terminal. 4. Release the spring - screwdriver. Dimensions: See Appendix - technical drawing : VENTILATOR 0310-4-0139 5 / 8 © Copyright HIDRIA d.o.o., All rights reserved. Document is subject to change without prior notification.
Page 6 - Linear voltage input (0-10V) or PWM input (PWM duty cycle 0-100%). - MODBUS RTU protocol (Additional information are in documentation "Hidria EC Modbus parameters" and on www.modbus.org. Linear voltage input is the most common and it is described below. The current input is also widely used, where long cables are necessary. PWM input is used for electromagnetic noisy environments.
Page 7 In the event of fan failure is detected (short/open circuit of electronics, windings ...), never try to repair the fan, but replace it with a new one or return it to the manufacturer for repair or replacement. 7 / 8 © Copyright HIDRIA d.o.o., All rights reserved. Document is subject to change without prior notification.
Page 8 Please refer to the homepage at www.hidria.com for a list of our subsidiaries worldwide. Hidria reserves the right to change any specifications or data without notice. 8 / 8 © Copyright HIDRIA d.o.o., All rights reserved. Document is subject to change without prior notification.

This manual is also suitable for:

0310-4-0139
