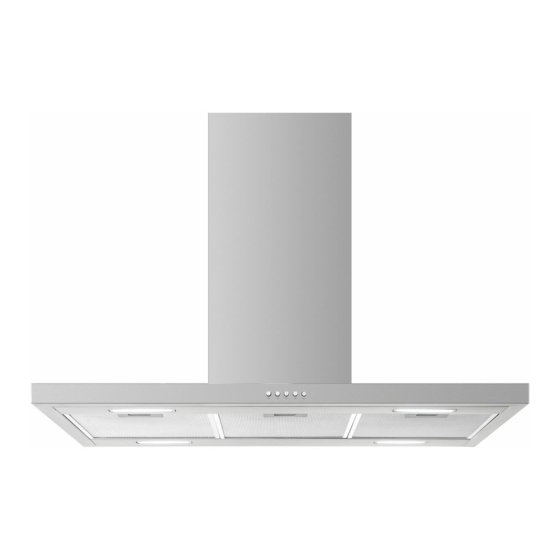

Summary of Contents for Fisher & Paykel HI90BLX1

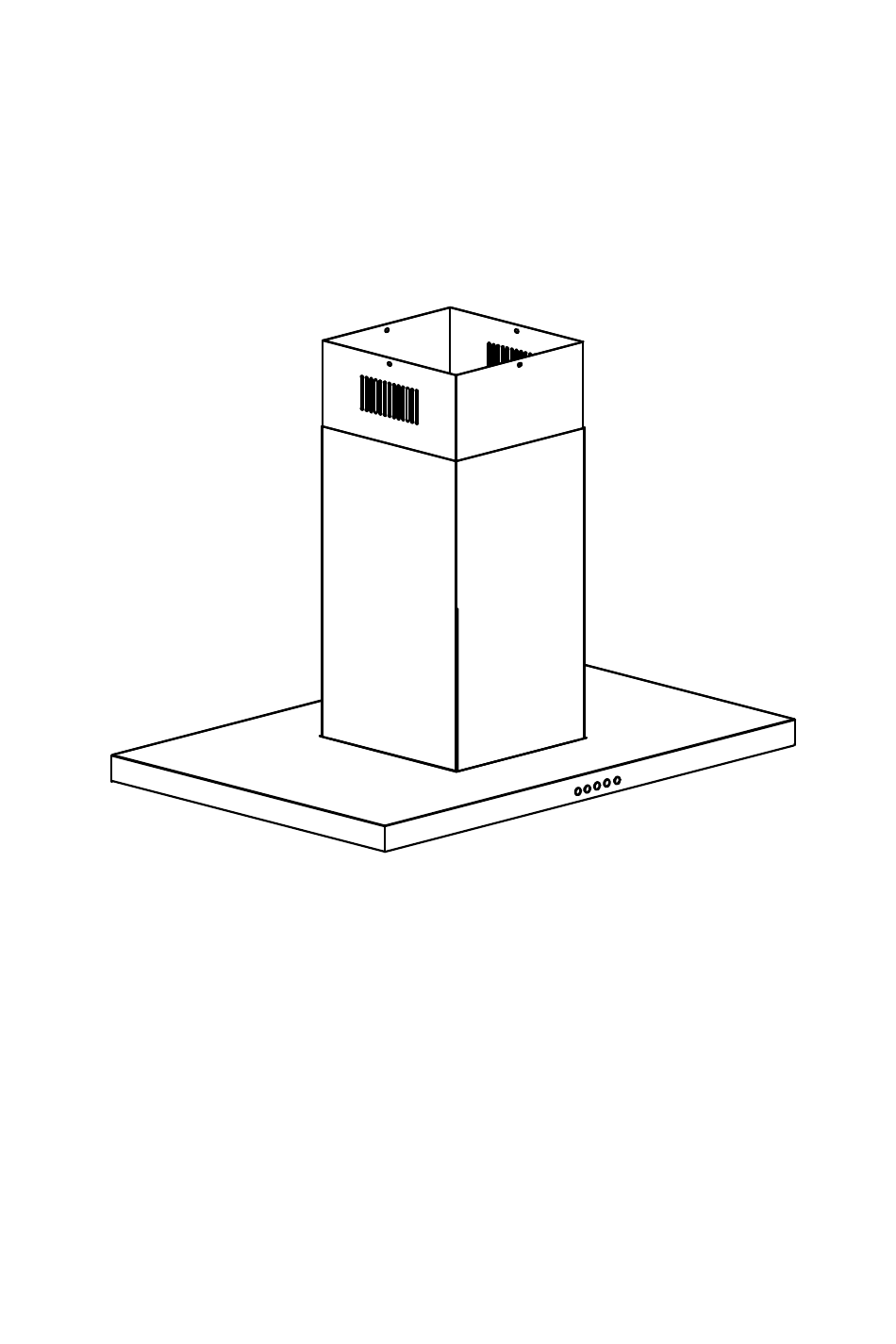

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE ISLAND RANGEHOOD, BOX CHIMNEY HI90BLX1 NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Installation instructions Operating instructions Cleaning and maintenance Parts and accessories Manufacturer’s Warranty Customer Care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible. not be available in all markets and are subject to change at any time. -
Page 5: Safety And Warnings
The rangehood is heavy. Please ensure adequate care is taken when installing the rangehood to prevent personal injury. The rangehood must be installed onto a solid wall, stud, beam or truss. Weight of the HI90BLX1 s i 7kg. 27kg HI90... - Page 6 SAFETY AND WARNINGS Exhaus t air must not be dischar ged into an existing flue that is used for exhausting ● fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Contents of packaging Outside chimney (1) Inside chimney (1) Hook (1) Cooker Hood (1) Hanging board Angle iron (8) S crew Wall plug (12) ST4 × 8mm) (4) V-flap (150) (1 pair) Washer M4 screw nut (26) Screw ø ... - Page 8 INSTALLATION INSTRUCTIONS Optional Recirculation Accessories (when ducting externally not possible) T-shape Recirculation Outlet Kit Screw ST4*30mm (2) Wall plug (2) Screw ST3*12mm (2) Bracket 1 (1) Screw ST4*8mm (4) Bracket 2 (1) T-shaped plastic outlet Recirculation Carbon filters Carbon filter Not Included –...
- Page 9 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Product dimensions Ø HI90BLX1 PRODUCT DIMENSIONS Overall height of product - max 11 Depth of chimney Overall depth of product Diameter of ducting outlet Distance from centre of ducting outlet to side of chimney Distance from centre of ducting outlet to back of product...
- Page 10 INSTALLATION INSTRUCTIONS Height of rangehood INSTALLATION DIMENSIONS Installation height - max 11 Ducted - max 11 Recirculation Height top of cooktop to base of product min. 600 – max. 750 Electric cooktop Gas cooktop min. 650 – max. 750 Rangehood installation height above the cooktop is the user’s preference. Lower installation heights will improve the efficiency of capturing cooking odours, grease, and smoke.
- Page 11 INSTALLATION INSTRUCTIONS Venting options Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid ducting is used.
- Page 12 INSTALLATION INSTRUCTIONS WARNING! This product is heavy and requires two persons for installation. ● ● Installation work and electrical wiring must be done by qualified person(s) ● ● in accordance with all applicable codes and standards. Failure to install the screws or fixing device in accordance with these instructions ●...
- Page 13 INSTALLATION INSTRUCTIONS INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.
- Page 14 INSTALLATION INSTRUCTIONS Ducting hanging board Pic 2 Pic 3 Pic 4 Use 4pcs ST4*8 screws to connect the inside chimney onto the hanging board . 10. Slide the outside chimney over the inside chimney and secure it in a raised location with the supplied hook, see pic 5. Install the v-flap to the outlet.
- Page 15 INSTALLATION INSTRUCTIONS 12. Fix the expansion pipe to the outlet with a cable tie See 8. Connect the power supply. 13. Check that hood is secure. Lift the outside chimney off the hook and slide it down over the hood. See pic 9. Pic 8 Pic 7 Pic 9...
- Page 16 INSTRUCTIONS INSTALLATION INSTRUCTIONS INST A LL A TION bracket1 bracket2 Pic 10 Pic 11 adiusted pipe Pic 12 Pic 13 Pic 14 Pic 15 Pic 16...
-
Page 17: Operating Instructions
OPERATING INSTRUCTIONS Start Using Your Cooker Hood Push button Push the “0” button, and the motor will stop. Push the “1” button, and the motor will run at low speed. Push the “2” button, and the motor will run at mid speed. Push the “3”... -
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING! Unplug or disconnect the appliance from the power supply before servicing or cleaning. IMPORTANT! Never use abrasive or oil based cleaners. ● Wear gloves to protect against sharp edges. ● Maintenance The rangehood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. - Page 19 CLEANING AND MAINTENANCE Carbon filters – for use in recirculation mode Active carbon filters are disposable items designed to remove grease and odours from cooking vapours before the air is channelled back into the kitchen. The active carbon filters must be replaced periodically to work properly, at least every three months, depending on the frequency with which the rangehood is used.
-
Page 20: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER H0530061789 light H0530061771 Recirculation carbon filter H0530062211 T-shape recirculation outlet kit H0530061772 Aluminium filter Chimney Extension 900mm... -
Page 21: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. - Page 22 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
-
Page 23: Customer Care
CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Authorised Service Centre, Customer Care, or contact us through our website www.fisherpaykel.com. - Page 24 CUSTOMER CARE Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
- Page 25 © Fisher & Paykel Appliances 2015. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
