SnowWolf Flex Plow Operation & Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

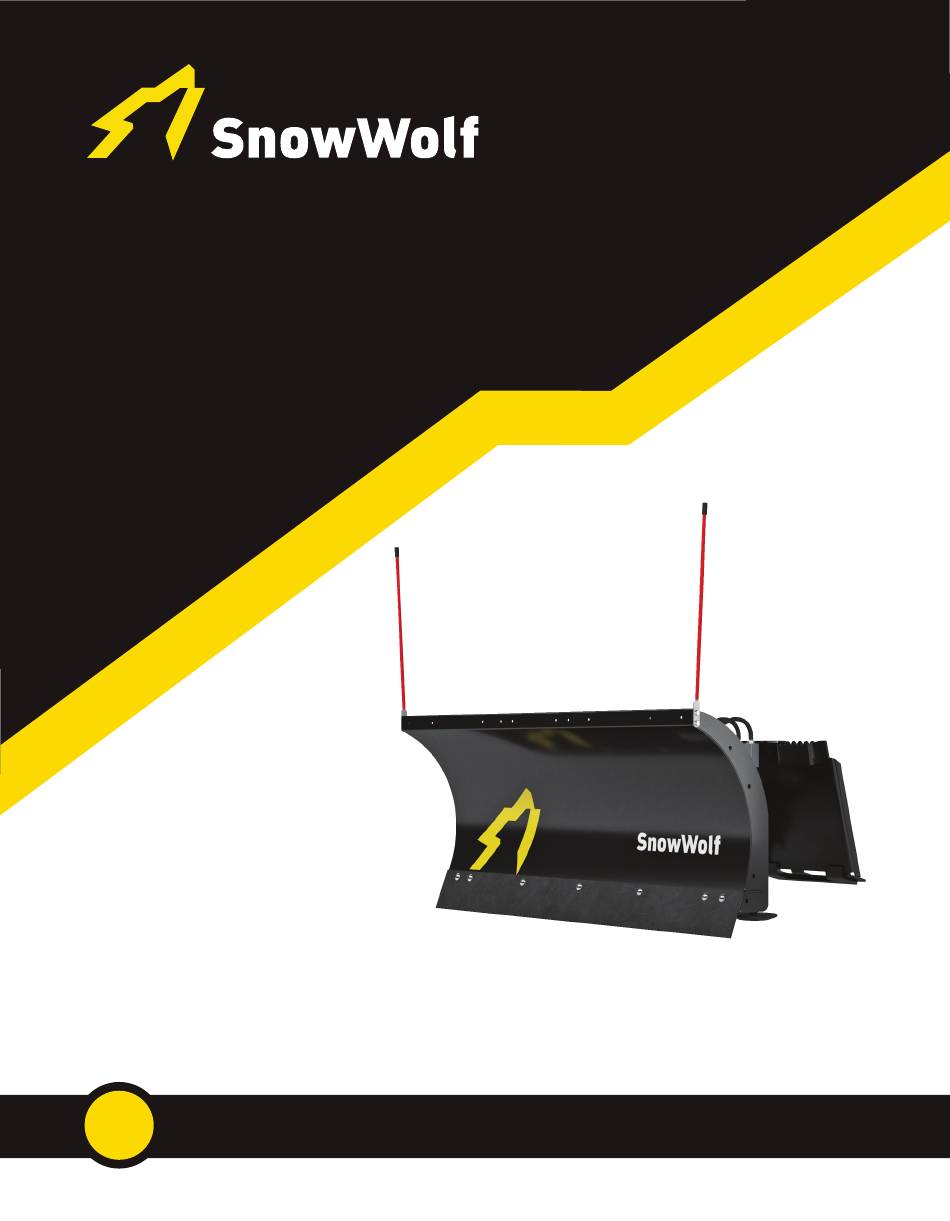

Operation & Maintenance Manual
Flex Plow
™
!
REMEMBER:
Register your product! No claims for warranty shall be considered unless your product
registration card is completed online within 30 days of purchase. Go to: snowwolfplows.com/registration.
08-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flex Plow and is the answer not in the manual?

Questions and answers

Related Manuals for SnowWolf Flex Plow

Summary of Contents for SnowWolf Flex Plow

  • Page 1 Operation & Maintenance Manual Flex Plow ™ REMEMBER: Register your product! No claims for warranty shall be considered unless your product registration card is completed online within 30 days of purchase. Go to: snowwolfplows.com/registration. 08-2021...
  • Page 2 SNOWWOLF. SNOWWOLF'S liability for any defect with respect to accepted goods shall be limited to repairing the goods at a SNOWWOLF designated location or at an authorized dealer location, or replacing them as SNOWWOLF shall elect.

  • Page 3: Table Of Contents

    ............. .31 Flex Plow Operation and Maintenance Manual...
  • Page 4 ............47 Flex Plow Operation and Maintenance Manual...

  • Page 5: Introduction

    ............... .7 Flex Plow Operation and Maintenance Manual...
  • Page 6 Flex Plow Operation and Maintenance Manual...

  • Page 7: Owner Information

    Date of Purchase: local, state, and federal codes, regulations and / or laws. Follow all on-product labeling and Always use the serial number of the Flex Plow instructions. when requesting service information or when Make sure that all personnel have read this ordering parts.

  • Page 8: Attachment Identification

    Introduction Attachment Identification FX-8.0 SHOWN BLADE MARKER GUIDE MOLDBOARD RELIEF VALVE TRIP SPRINGS CUTTING EDGE ANGLE CYLINDER MOUNTING FRAME WEAR SHOE Flex Plow Operation and Maintenance Manual...

  • Page 9: Standard Models

    Universal Skid Steer Compatible • Trip Springs (Two Standard) • Cutting Edge Options • SoftTouch™ Cutting Edge • Trip Spring, Upgrade • Oscillation Lock-Out • Crossover Relief Valve • Wear Shoes • Avant / Multione Mount Flex Plow Operation and Maintenance Manual...
  • Page 10 Flex Plow Operation and Maintenance Manual...

  • Page 11: Safety

    ............12 Flex Plow Operation and Maintenance Manual...
  • Page 12 Flex Plow Operation and Maintenance Manual...

  • Page 13: Safety Information

    It may also be used to alert against unsafe practices. The signal word IMPORTANT identifies procedures which must be followed to avoid damage to the machine. Flex Plow Operation and Maintenance Manual...

  • Page 14: Importance Of Safety

    • Keep shields and guards in place. Replace if • The Flex Plow attachment is intended for use damaged. in snow removal. Use of this equipment in any other manner is considered to be contrary to •...
  • Page 15 • Always disconnect hydraulic connections Fire Prevention Safety between the machine and the Flex Plow before performing maintenance to the Flex Plow. • Flammable debris (leaves, grass, etc.) must be removed regularly. If flammable debris is • Always clean fluid spills. Do not use gasoline or allowed to accumulate, it can cause a fire diesel fuel for cleaning parts.
  • Page 16 Flex Plow Operation and Maintenance Manual...

  • Page 17: Operation

    .............23 Flex Plow Operation and Maintenance Manual...
  • Page 18 Flex Plow Operation and Maintenance Manual...

  • Page 19: General Information

    Operation General Information Pre-Operation Inspection Before operating the Flex Plow for the first time and each time thereafter, use the following list as a guideline during equipment inspection. Leaking fluids under pressure can enter the skin and cause serious injury or death.

  • Page 20: Attachment Inspection

    Operation Attachment Inspection Monthly Inspection • Inspect the Flex Plow for cracks, bends, or Daily Inspection excessive wear. • Check wear plates (if equipped) for wear. NOTE: Inspect the attachment by performing a walk around daily before and after use.

  • Page 21: Attachment Installation

    Plow mounting frame. FOR ADDITIONAL INFORMATION. Slowly raise and tilt the machine’s mounting plate back until the Flex Plow is slightly off the ground Park the machine / attachment on a flat level and attachment mounting frame fully contacts the surface.

  • Page 22: Hydraulic Couplers

    Operator’s Position” on page 19. quickly damage the hydraulic system. Engage machine’s locking levers / wedges to securely fasten the Flex Plow to the machine’s mounting frame. (See the machine’s Operation Manual for the correct procedure.) Visually inspect that the wedge pins are securely fastened into the Flex Plow mounting frame.

  • Page 23: Checking Flex Plow Operation

    Engage the machine’s auxiliary hydraulics. (See the machine’s Operation Manual for correct procedure). Raise the engine RPM. Check the controls of the Flex Plow for proper operation. Install the Flex Plow male coupler (Item 1) [Figure Exit the machine. (See “Leaving The Operator’s 1] into the female coupler.

  • Page 24: Operating The Attachment

    Operation equipped) to follow the contours of the ground. Stacking Snow The Flex Plow has been designed to stack snow if AVOID INJURY OR DEATH desired. While operating the machine: • Always keep seat belt fastened. •...

  • Page 25: Attachment Removal

    Park the machine and attachment on a flat level hydraulic hoses. surface. Lower the lift arms and put the Flex Plow flat on Enter the machine. (See “Entering The Operator’s the ground. Position” on page 19.) Stop the engine and engage the parking brake.
  • Page 26 Flex Plow Operation and Maintenance Manual...

  • Page 27: Maintenance

    ............. .32 Flex Plow Operation and Maintenance Manual...
  • Page 28 Flex Plow Operation and Maintenance Manual...

  • Page 29: Maintenance Safety

    Flex Plow. • Always disconnect hydraulic connections between the machine and the Flex Plow before performing maintenance. • Before working or doing maintenance on this machine, shut off the engine and remove the key. Make sure the machine’s wheels are blocked.

  • Page 30: General Maintenance

    Safety signs and reflectors for damage. Replace any missing or damaged decals. • Cutting edge for wear or damage. • Hydraulic hoses and fittings for wear, damage or leaks. NOTE: Repair or replace any damaged parts. Flex Plow Operation and Maintenance Manual...

  • Page 31: Flex Plow Maintenance

    (if equipped), wait for all moving parts to come to a stop and relieve all pressure in the hydraulic lines. 5. Block and/or support the Flex Plow with proper lifting device capable of sufficiently supporting AVOID SERIOUS INJURY OR DEATH the unit's weight.

  • Page 32: Cutting Edge Trip Spring Adjustment / Replacement

    NOTE: Adjust trip springs evenly on both sides. Wear Shoe Adjustment / Replacement (if equipped) Place blocks under the Flex Plow (both sides) to hold the wear shoe off the ground. Remove the retaining pin, spacers and remove the wear shoe.

  • Page 33: Troubleshooting

    Flex Plow does not rotate. Plugged or kinked hose Replace hose. Check machine hydraulic oil Hydraulic fluid low. level. Check machine hydraulic oil Hydraulic fluid low. Flex Plow tilt/rotate functions level. inconsistent. Faulty angle cylinder. Replace cylinder. Flex Plow Operation and Maintenance Manual...

  • Page 34: Storage And Return To Service

    Storage And Return To Service Storage Return to Service After the seasons use or when the Flex Plow will After the Flex Plow has been in storage, it is not be in use for a period of time, perform the necessary to follow a list of items to return the following steps.

  • Page 35: Parts

    ...............40 Flex Plow Operation and Maintenance Manual...
  • Page 36 Flex Plow Operation and Maintenance Manual...
  • Page 37 Parts This page left intentionally blank Flex Plow Operation and Maintenance Manual...

  • Page 38: Flex Plow Parts

    PIVOT BOLT, 1”-8 x 7.5” P60206 WASHER, FLAT, 1" SAE, YELLOW ZINC, GRADE 8 P20029 PIN, 3/4” x 4”, (INCL COTTER PIN) P20030 PIN, COTTER, 5/32” x 1-1/4” P60002 RELIEF VALVE, CROSSOVER, NO HOSES Flex Plow Operation and Maintenance Manual...
  • Page 39 CUTTING EDGE, 3/8” x 6” x 84”, TOP PUNCH, (NO HARDWARE) P20000E CUTTING EDGE, 3/8” x 6” x 96”, TOP PUNCH, (NO HARDWARE) P60221 BOLT, CARRIAGE, 1/2 x 1-1/2”, ZINC, GRADE 5 P50001 BLADE MARKER GUIDE SET Flex Plow Operation and Maintenance Manual...

  • Page 40: Hydraulics

    Hoses With Crossover Relief (FX-5.0’, 6.0’, 7.0’, 8.0’) ITEM PART # DESCRIPTION P50008-E HOSE, 3/8” x 18”, 3000 PSI, 6FJIC-6FJIC P80008 HOSE, 3/8” x 26”, 3000 PSI, 6FJIC-6FJIC P50008 HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC Flex Plow Operation and Maintenance Manual...

  • Page 41: Hydraulic Components

    FITTING, STRAIGHT, 6MJIC-6MORB RESTRICTED, .070 P60128 CROSS OVER RELIEF VALVE 2500 PSI * Parts not used if crossover relief valve option is not installed on the Flex Plow. See No Crossover Relief parts on page 40. Flex Plow Operation and Maintenance Manual...

  • Page 42: Options

    HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC P50008-D HOSE, 3/8” x 94”, 3000 PSI, 6FJIC-8FJIC P60090 NUT, HEX, NYLOCK, 5/16”-18 P60215 BOLT, HEX, 5/16 x 2”, GR 5 P60159 HOSE CLAMP HOSE CLAMP PLATE, STAUFF COVER P60160 PLATE Flex Plow Operation and Maintenance Manual...
  • Page 43 SPRING, TRIP, 6’-10’ (15” LONG) P40012 NUT, LOCK, 5/8-11, GR C P60096 WASHER, FLAT, 5/8” SAE, GR8 OSCILLATION LOCK-OUT OSCILLATION LOCK RETENTION P20044 SPRING P20047 OSCILLATION LOCKOUT, WELDMENT P60211 NUT, HEX, NYLOCK, 3/8”, GR 8 Flex Plow Operation and Maintenance Manual...
  • Page 44 Flex Plow Operation and Maintenance Manual...

  • Page 45: Specifications

    ............47 Flex Plow Operation and Maintenance Manual...
  • Page 46 Flex Plow Operation and Maintenance Manual...

  • Page 47: Specifications

    1-1/2” x 10” Angle Rams Vertical Ribs Moldboard Radius 15” 15” 15” 15” Full Trip Oscillation Std. Std. Std. Std. Universal Skid Steer Mount Std. Std. Std. Std. Trip lock-Out Std. Std. Std. Std. Flex Plow Operation and Maintenance Manual...

  • Page 48: Dimensions

    Specifications Dimensions DESCRIPTION FX-5.0 FX-6.0 FX-7.0 FX-8.0 Overall Width (A) 60” 72” 84” 96” Overall Height (B) 28.4” 28.4” 28.4” 28.4” Overall Length (C) 39.6” 39.6” 39.6” 39.6” Flex Plow Operation and Maintenance Manual...

  • Page 49: Torque Specifications

    708 ft / lb 773 ft / lb 1000 ft / lb 386 ft / lb 545 ft / lb (289 N•m) (373 N•m) (742 N•m) (960 N•m) (1048 N•m) (1356 N•m) (523 N•m) (739 N•m) Flex Plow Operation and Maintenance Manual...
  • Page 50 Flex Plow Operation and Maintenance Manual...
  • Page 52 14311 Ewing Avenue, Burnsville, MN 55306 1-800-905-2265 snowwolfplows.com © 2020 SnowWolf...
