BOXING | boxE
Boxing Stand
Keycode: 42702672

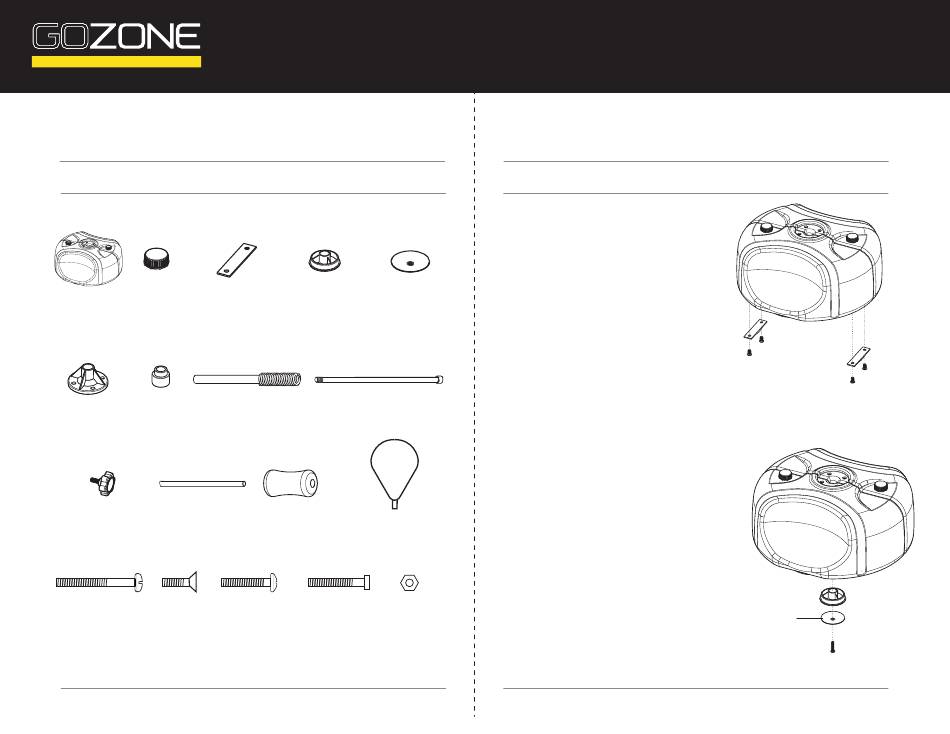

Parts List
A. Base
B. Base Cap
C. Base Support Plate
x 2
x 2
x 2
F. Base Plate
G. Spring Cover Cap
H. Lower Pole
x 1
x 1
J. Height Adjustment Knob
K. Upper Pole
x 1
x 1
N. Bolt M8 x 40mm
O. Bolt M8 x 12mm
P. Bolt M8 x 16mm
x 1
x 4
01
D. Base Plug
E. Base Plug Cover
x 1
x 1
I. Middle Pole
(With a detached plastic ring in the pack)
x 1
x 1
L. Foam Cover
M. Punch Ball
x 1
x 1
Q. Bolt M6 x 30mm
R. Nut M6
x 4
x 2
x 2
Boxing Stand
Keycode: 42702672
Assembly Instructions
Step 1
Turn the 2 x Base (A) over and connect them using 2 x Base
Support Plate (C) and 4 x Bolts M8 x 12mm (O)
Step 2
Turn Base (A) over and then place Base Plug (D) into the hole
of the Base (A), cover Base Plug (D) with Base Plug Cover (E)
and secure them into place using Bolt M6 x 40mm (N).
The concave surface is upward
REFLEX STRIKE BAG
SAC DE FRAPPE RÉFLEXE
02
A
C
o
o
o
o
A
D
E
J
