Permaban AlphaJoint Installation Guide
Using Pin & Weld Method
Installation Guide Issue V2.0
26/11/21

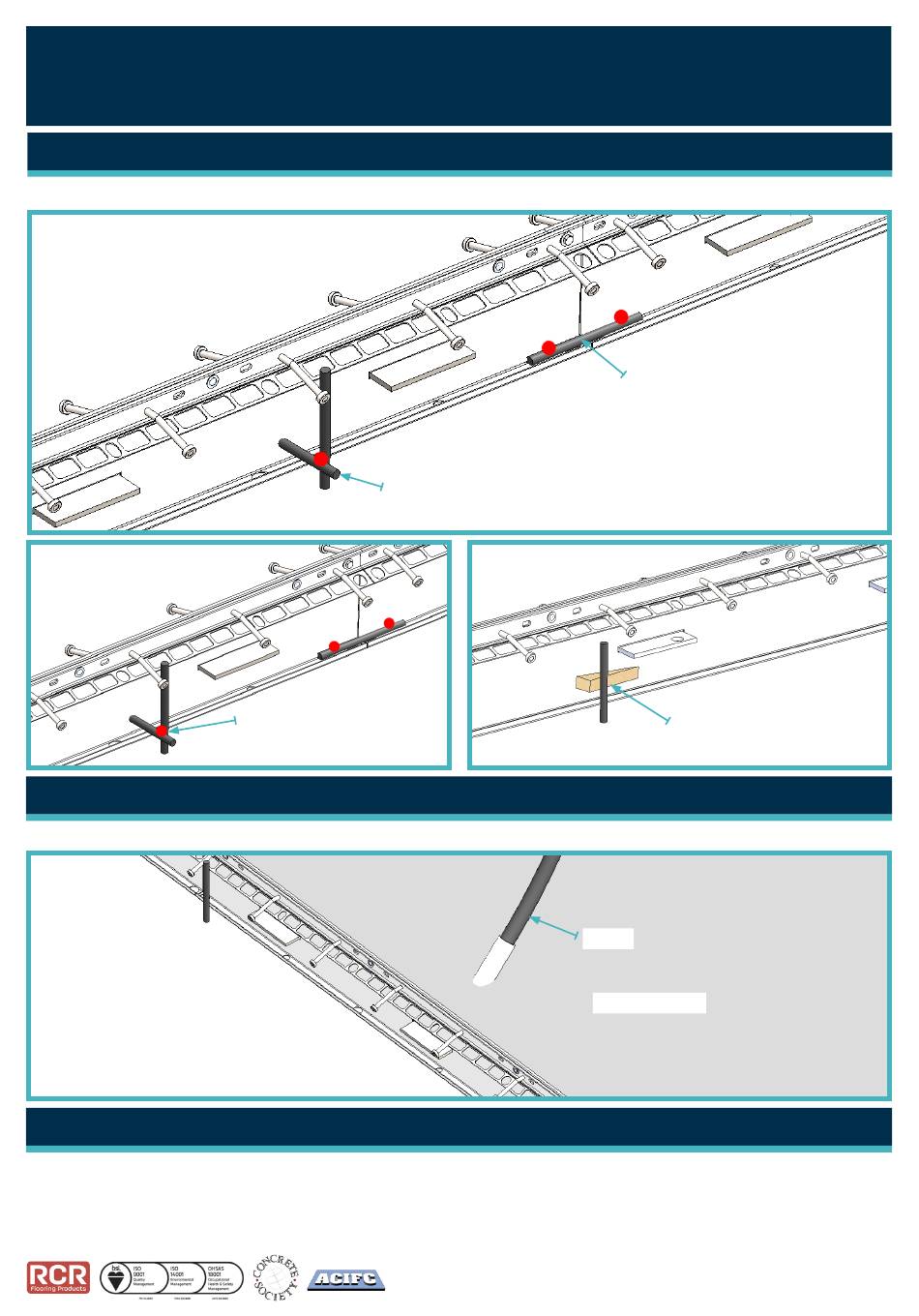

05 Support bars

This method gives good support to the Joint and helps to prevent kick.
Extended Joint support bar

06 Vibrate Concrete

Poker vibrate along length of the joint to compacted concrete.

07 Finish

Finish concrete, flush to top of the armoured joint ensuring the rail is clearly viable.
Note; Pins welded like this
provide support aganst kick.
The re-bar is to be
tack welded only.
Note; Place re-bar
between two Alpha
joints and tack weld.
Poker
Wet concrete
All content found within this installation guide is approximate. RCR Flooring Products Ltd reserves the right to
amend this installation guide at any time. For further details, please contact RCR Flooring Products Ltd.
RCR Flooring Products Ltd is registered in England & Wales - No. 02815314.
Pin and a wedge will
also fight against kicking
of the Joint.
