Permaban AlphaJoint Installation Guide
Using Pin & Weld Method
Installation Guide Issue V2.0
26/11/21

03 Adjust to Height

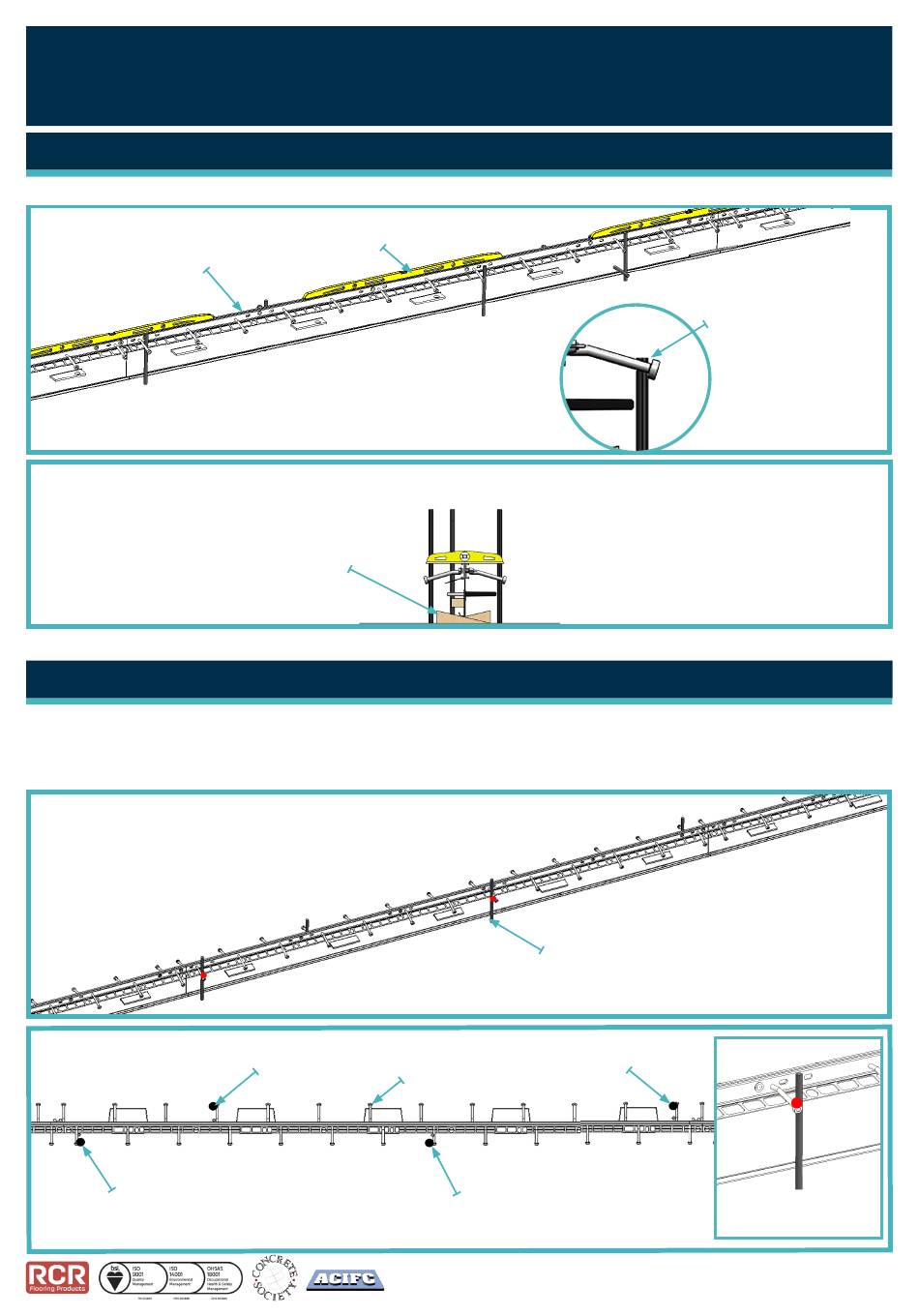

Use wedges to get the desired height required and check with a spirit level/optical level.
Top strip
Note; Joints
must be fixed
at 90°.

04 Place pins

Pins are situated towards the end of the stud, then tack welded in place. The tack weld will break
under the pressure of the concrete, this will allow the joint to open along the length of the stud with
the pin still in place.
Note: 4 pins per joint.
Pin
Level
Note; Once levels are checked
cut pins just above the tac weld.
Measure the vertical and horizontal level using the top strip.
Wedges
Note; Check the joint is level in the 3 positions above.
Pin
Edge of Stud
Pin
Pin
Pin
