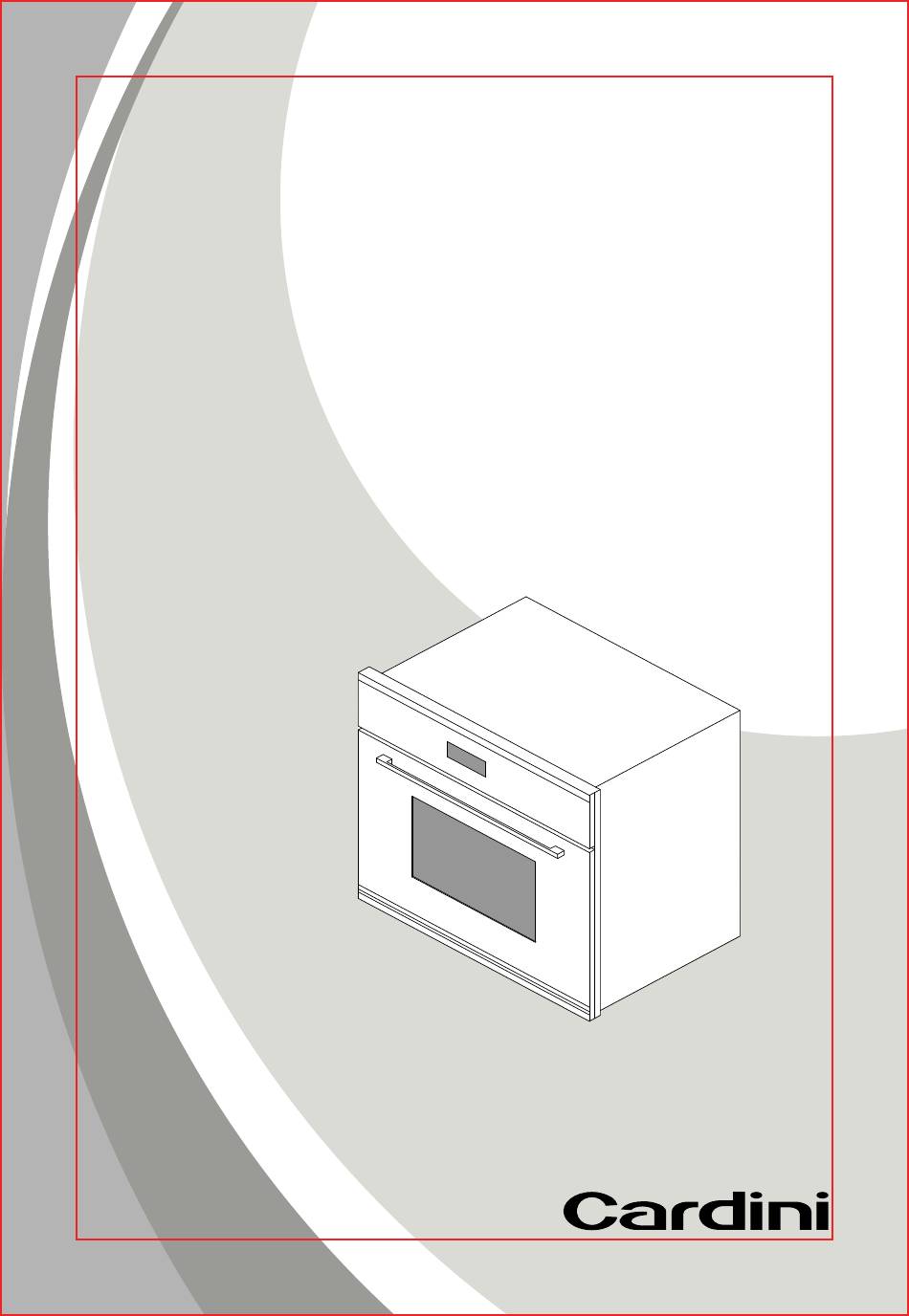

- Page 1 BUILT-IN COMBINATION MICROWAVE & OVEN INSTRUCTION MANUAL Read this manual carefully before operation Note: Pictures in this manual are for reference only. MW6200...
-
Page 2: Table Of Contents
Contents Contents ..............General Warnings ..........Installation ............. Electrical Connection..........Control Panel ............Display ..............Accessories ............Operation ............Microwave Oven Functions ......Auto Cooking ............ Care and Maintenance ........Removing the Microwave Oven Door ... Troubleshooting & Technical Data ....Warranty &... -
Page 3: General Warnings
General Warnings Read carefully all the instructions contained in this manual. It provides you with important information regarding the safe installation, use and maintenance of the appliance as well as useful advice for getting the best out of your combination microwave oven. - Page 4 If the supply cable is damaged, it must be replaced by Cardini or an approved service agent in order to avoid a hazard. Please keep this instruction manual for future reference...
- Page 5 − WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode. − Microwave heating of liquids can result in delayed eruptive boiling, therefore care has to be taken when handling the container. −...
- Page 6 ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 7: Installation
Installation IMPORTANT: ISOLATE YOUR COMBINATION MICROWAVE OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING INSTALLATION OR MAINTENANCE. Installation should be carried out according to the instructions by an electrician. The manufacturer declines all responsibility for any damage to persons, animals or materials due to incorrect installation. - Page 8 35mm minimum clear ventilation to rear Fig. 4 Fig. 5 70 x 400 cut-out for ventilation See below for full dimensional drawings of your combination microwave oven to help with installation. For a built-in microwave to work well, the cabinet must be of the right design. The panels of the adjoining cabinets should be heat resistant.
-
Page 9: Electrical Connection
Electrical Connection WARNING: THIS APPLIANCE MUST BE EARTHED Check that the power rating of the mains supply is suitable for the maximum power of the appliance as indicated on the rating label. The circuit breaker rating for this appliance is 16 amp. If the appliance is supplied with a mains lead it should be “hard wired”... -
Page 10: Control Panel
Control Panel Dismantle LED linght module ˚C / W / g AUTO 1. Power 5. Auto cooking 2. Programme 6. Up 7. Down 3. Timer 8. Select 4. Temperature °C / 9. Light / Child lock Power (watts) / 10. Start / Pause Weight (grams) Display Reinstall LED light module... -
Page 11: Accessories
Accessories WIRE SHELF (FIG. 7) The wire shelf allows you to brown or grill food. The shelf can be used for normal fan heat, conventional cooking and grilling functions only. It must not be used for any microwave function. If a microwave function is selected, ensure the wire shelf has been removed before starting any microwave functions. -
Page 12: Operation
Operation (Refer to page 10 for button locations & numbering) Press the (1) button to turn the oven on. When turned on, the display will light up and the time of day will be shown. Programme / Function To Select a function, press the PROG (2) button to toggle through the functions and press SELECT (8) once you have reached the required function. - Page 13 Alarm setting To set the Alarm/minute reminder, press the (3) button until the symbol starts to flash. Use (6,7) to adjust the time and then press SELECT (8) to confirm. If you want to cancel the alarm, set the alarm time back to '0:00' and press SELECT (8) to confirm.
-
Page 14: Microwave Oven Functions
Microwave Oven Functions Press the PROG button to select the following functions. Microwave - Default power P100 (power range P10-P100). To adjust the power, press until the correct power is reached followed by SELECT. Default time is 1 minute. To adjust the time, press the button, followed by the and SELECT to confirm. - Page 15 Microwave & Fan heat - Microwave default power P50 (power range P10-P50). Fan heat default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode and then again to enter the fan heat temperature mode. These can both then be adjusted using the keys followed by SELECT to confirm.
-
Page 16: Auto Cooking
Auto Cooking Example: SYMBOL DESCRIPTION DISPLAY Milk (Auto programme) Press the auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the weight selection. Use the to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. - Page 17 TIME DEFAULT WEIGHT SYMBOL FUNCTION ALTERNATIVES (MINUTES) WEIGHT 100g Microwave 200g 200g Microwave Bread 300g Microwave Microwave 100g Microwave 200g 300g Microwave 400g Microwave 500g Microwave 500g 600g Microwave Fish 700g Microwave 800g Microwave 900g Microwave 1000g Microwave Microwave 200g Microwave 300g 400g...
- Page 18 TIME DEFAULT WEIGHT SYMBOL FUNCTION (MINUTES) WEIGHT ALTERNATIVES 200g Microwave + Grill Microwave + Grill 400g 600g Microwave + Grill Microwave + Grill 800g 1000g Microwave + Grill 1000g Microwave + Grill 1200g Chicken 1400g Microwave + Grill Microwave + Grill 1600g 1800g Microwave + Grill...
-
Page 19: Care And Maintenance
Care and Maintenance IMPORTANT Electrically isolate your combination microwave oven before cleaning, or performing maintenance. To extend the life of your microwave oven, it must be cleaned frequently. DO NOT USE STEAM EQUIPMENT TO CLEAN THE APPLIANCE • To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance. -
Page 20: Removing The Microwave Oven Door
Removing the Microwave Oven Door To make it easier to clean the inside of your combination microwave oven, the door can be removed by proceeding as follows: • Open the door completely and lift the 2 levers “B” (Fig.11-1); • By shutting the door slightly, you can lift it out by pulling it towards you off the hooks “A”... -
Page 21: Troubleshooting & Technical Data
2550W Microwave rated output power 1000W Volume Warranty & Service For warranty information, please visit the Cardini website: www.cardini.com.au For any service issues, please email our customer care team: service@cardini.com.au Please keep this instruction manual for future reference Rev A...
