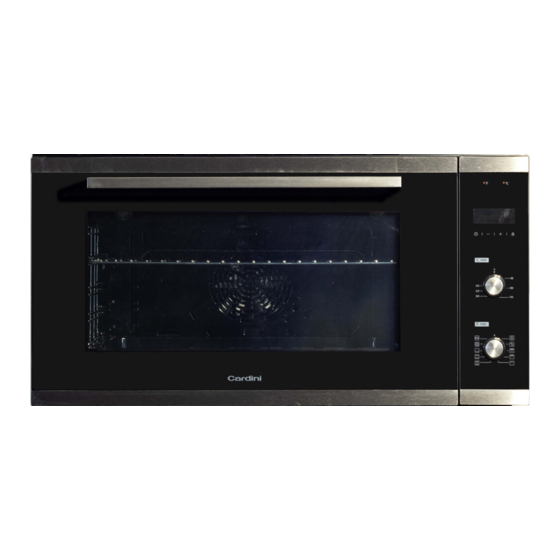

- Page 1 90cm BUILT-IN ELECTRIC OVEN INSTRUCTION MANUAL Read this manual carefully before operation Note: Pictures in this manual are for reference only. OV9150 90cm electric oven...
-
Page 2: Table Of Contents
Contents Contents..............2 Safety Instructions............3 Operation Overview..........8 Preparing for First Use..........12 Cleaning and Care..........13 Removing and Cleaning the Oven Door....15 Changing the Lightbulb...........16 Disassembly of Convection Motor......16 Troubleshooting............16 Care & maintenance..........15 Troubleshooting............16 Energy Saving............17 Installation..............17 Baking Suggestions..........19 Cooking Guide Table..........20 Warranty & service..........21... -
Page 3: Safety Instructions
WITH YOU IN MIND • Thank you for purchasing a Cardini appliance. • To make it as enjoyable to prepare meals as it is to taste them, please read these instructions for use. This will make it possible to take advantage of all the oven’s technical benefits. - Page 4 • The oven must always be used within the limits of normal household use, not for professional use, for cooking, roasting, grilling, thawing dishes, to prepare food for later storage or to dehydrate it. • No other use is permissible. •...
- Page 5 Danger of burns. • The skin of children is much more delicate than that of adults. The glass door, the control panel and the slots for hot air to come out of the appliance's cooking chamber get hot. Prevent children from touching the appliance while it is operating.
- Page 6 CAUTION ! • Use the appliance solely in a domestic environment. • Risk of injury, burns, electric shock or explosion. • Do not make any changes to the specifications of this appliance. • Ensure that the ventilation slots are not blocked. •...
- Page 7 Cleaning and care CAUTION ! • There is a risk of injury, fire or damage to the appliance. • Before carrying out any maintenance work, electrically isolate the appliance. • Check that the appliance is cold. There is a risk that the glass panels might break. •...
-
Page 8: Operation Overview
Operation Overview Control Panel Functions Selector Knob Temperature Selector Knob End-of-Cooking Timer/clock Button Temperature °C indicator / symbol / warning light F switch indicator / symbol / warning light Lamps Heating element Rack Positions Shelf support (removable) Selectors The selectors are retractable knobs. Press them to pop them out for use. - Page 9 Application Oven function Off: The appliance is switched off. Oven Lamp: To switch on the lamp without a cooking function. Defrost: To thaw eg. meat, poultry, bread and desserts. The fan causes the warm air to wrap around the food The inner heating element and the outer heating element in the top of the oven are working with the fan.
- Page 10 Set alarm • Press and the alarm icon will begin to flash which means the alarm function has been chosen “0:00” will display. Press the "+" and "-" button to set alarm time. The time can be adjusted between "0:01 ~ 23:59". Press once on plus or minus 1 and hold for 3 seconds for quick adjust. After waiting for 5 seconds to confirm setting, icon will be displayed and the alarm time will be shown on the screen.
- Page 11 Cooking Chamber • In the cooking chamber there are oven lamps that are on while the oven is working. By turning the functions selector onto the oven lamp symbol, you can light up the lamp when the oven is switched off. •...
-
Page 12: Preparing For First Use
HOOK POSITIONING AT THE REAR HOOK POSITIONING AT THE FRONT Fig. b CAUTION ! Pour some water into the dripping pan and place it on the first level whenever you wish to collect the cooking fats. (note: 1st level position is shown on accessories diagram on the previous page). Preparing for First Use CAUTION ! Refer to the chapters on safety. -
Page 13: Cleaning And Care
Cleaning and Care CAUTION ! Refer to the chapters on safety. Notes on cleaning • Clean the front of the appliance with a soft cloth moistened with warm soapy water. • To clean the metal surfaces, use a regular detergent. •... - Page 14 Cleaning Oven Door / Door Seal Clean the oven door only with a moist sponge. Dry it with a soft cloth. • Do not use steel wool, acids or abrasive products that could damage the surface of the oven. • Clean the oven control panel, taking the same precautions.
-
Page 15: Removing And Cleaning The Oven Door
Removing and Cleaning the Oven Door The oven door is equipped with three glass panels. You can remove the oven door and the internal glass panels to clean them. The oven door could close again if you try to remove the glass panels before taking off the oven door. CAUTION ! Refer to the chapters on safety. -
Page 16: Changing The Lightbulb
Changing the Lightbulb CAUTION ! WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility • of electric shock. You must wear protective gloves to change the light bulb. • To make the replacement, proceed as follows: •... -
Page 17: Energy Saving
Energy Saving This appliance is equipped with features to help you save energy during everyday cooking. General tips Ensure that the oven door is closed properly when the appliance is in operation and keep it closed • as much as possible during cooking. Use metal plates to improve energy efficiency. - Page 18 General Dimensions of Product and Cabinet Cabinetmaker notes: 1. Do not install a back behind the oven. 2. Provide a minimum clearance of 35mm clearance behind the oven. 3. Provide a 225mm x 50mm cut out in the base of the oven cabinet for ventilation 4.
-
Page 19: Baking Suggestions
EARTHING EARTH Nominal Power 2.92 kW 12.70 A 230 V ~ Supply cord: 2.5mm 2C+E The system must have an earthing wire, distinguished by the yellow-green colour Components Oven Nominal Power of the protective sleeve. All electric household appliances must oven light: 50 Watts Bottom heating element 1.50 kiloWatts... -
Page 20: Cooking Guide Table
Cooking Guide Table Dishes Weight (kg) Accessories pre-heating Rack Function Temperature Time (minutes) (minutes) (°C) minutes position from bottom Cheese Cake 1,5 – 4 kg Cookware, uncovered onto the wire rack 50-70 Roast Beef 1 – 4 kg Cookware, uncovered onto the wire rack 25-30 Meatloaf 1 –... -
Page 21: Warranty & Service
Warranty & Service For warranty information, please visit the Cardini website: www.cardini.com.au For any service issues, please email our customer care team: service@cardini.com.au Rev A...
