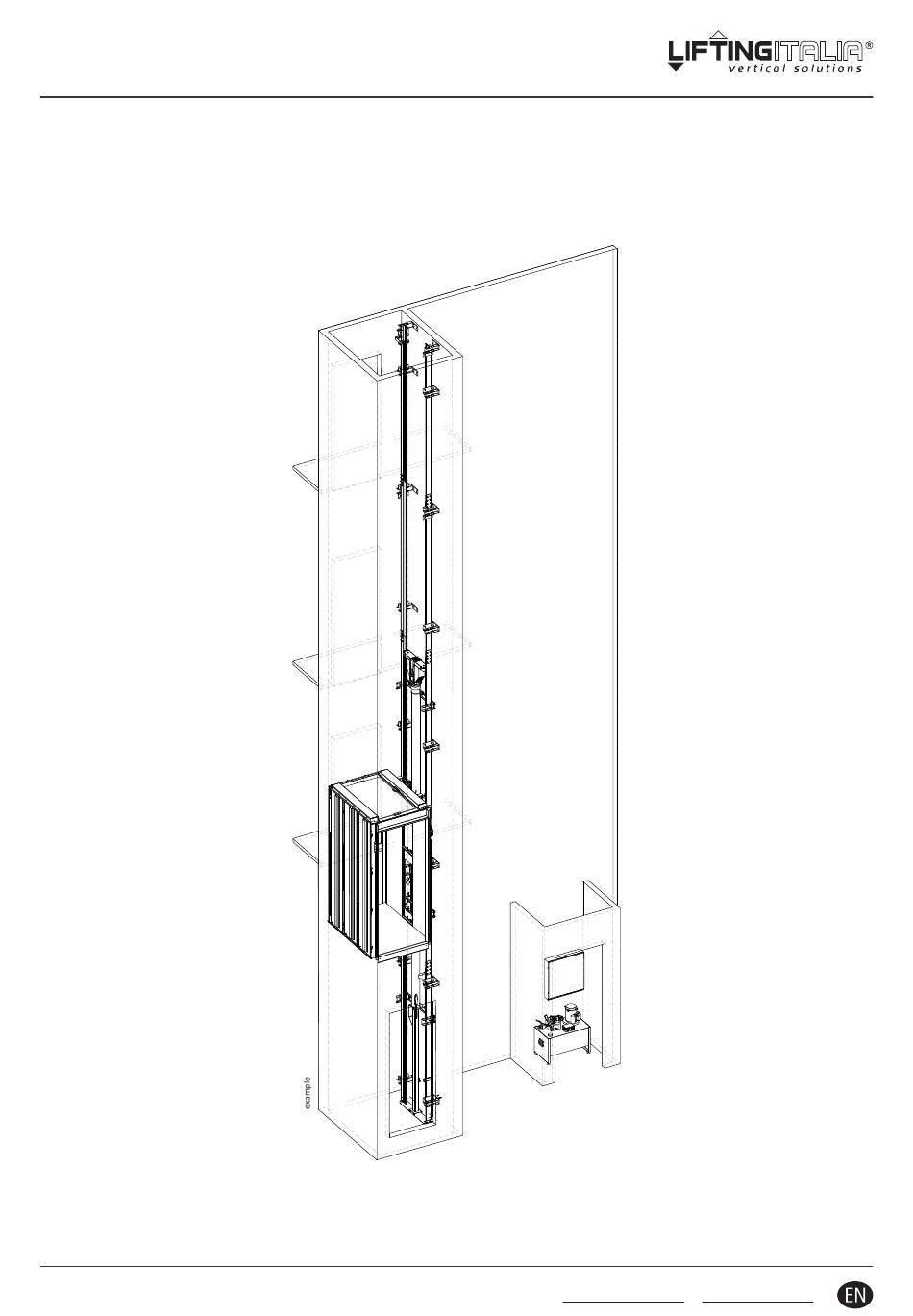

inDOMO HP
Platform lift
FINAL TESTS
1
IM.TEC.028.EN_rev.10.2
(13)
- November 2015
www.verticogroup.it - info@liftingitalia.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inDOMO HP and is the answer not in the manual?

Questions and answers

Summary of Contents for LIFTINGITALIA inDOMO HP

  • Page 1 LIFTINGITALIA S.r.l. Via Caduti del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 inDOMO HP Platform lift FINAL TESTS IM.TEC.028.EN_rev.10.2 (13) - November 2015 www.verticogroup.it - info@liftingitalia.it...
  • Page 2: Table Of Contents

    HP - Platform lift FINAL TESTS As far as the following items are concerned : general instructions, safety instructions, responsibility and warranty, material receiving and storage on site, packing, waste disposal, cleaning and maintenance, please consult the manual "SAFETY AND MATERIAL HANDLING ON SITE".
  • Page 3: Manual Reading Guide

    HP - Platform lift FINAL TESTS MANUAL READING GUIDE CHAPTER SYMBOLS General information Positioning 2:1 lift specification Box content Installation 1:1 lift specification Preliminary advice Commissioning Read carefully Electrical Wiring IMPORTANT ITEMS General safety warning Important notice Read carefully Risk of damage to mechanical Risk of bodily injury (e.g.
  • Page 4: Commissioning And Handover

    HP - Platform lift FINAL TESTS COMMISSIONING AND HANDOVER This manual contains the list of final tests needed for lift commissioning by the installer. Upon the commissioning completed, the installer will sign the protocol, indicating the exact date and the data of the installation company and special notes, if any.
  • Page 5: Control Panel Testing

    ORIGINAL MATERIALS FROM LIFTINGITALIA The lift must match the LIFTINGITALIA project requirements. Therefore, the installer has to confirm the exclusive use of materials supplied by LIFTINGITALIA. MAXIMUM STATIC LOAD STRUCTURAL TEST After loading the car with the maximum static load, verify absence of permanent deformities of the lift.
  • Page 6: Overload Manostat

    HP - Platform lift FINAL TESTS iii. command the descent to the lowest floor; the car speed will exceed the standard and the block valve will block the descent; send the lift upwards, to unblock the valve; refresh. OVERLOAD MANOSTAT Check the efficiency of the overload manostat with a fully loaded car: send the lift to the lowest stop and enter the car;...
  • Page 7: Stop" (If Present ) And Alarm Buttons

    HP - Platform lift FINAL TESTS 2.13 “STOP” (if present ) AND ALARM BUTTONS Check if the STOP button actually stops the lift and the alarm button activates the acoustic signal: stop the can between two stops, using the STOP button (if available, in case of doorless car);...
  • Page 8: Overrun Contact And Headroom Spacer

    HP - Platform lift FINAL TESTS 2.19 OVERRUN CONTACT AND HEADROOM SPACER Check the efficiency of the overrun contact / headroom spacer: send the car to the upper floor; Control the ascent of the car from the control panel till the overtravel contact takes action (proceed little by little: when the lift does not respond to an external call, it means the overtravel contact is in action);...
  • Page 9: Manual Pump

    HP - Platform lift FINAL TESTS 2.24 MANUAL PUMP Verify the maximum pressure of the manual pump: close the inlet valve and open the pressure gauge valve; iii. activate the manual pump; the gauge will indicate the maximum pressure reached: this value must be maximum 2,3 x maximum static pressure described in the paragraph 2.4 of this manual;...
  • Page 10: Photocells Or Light Barriers (If Any)

    HP - Platform lift FINAL TESTS 2.31 PHOTOCELLS OR LIGHT BARRIERS (if any) To check these devices proceed as follows: CAR WITHOUT DOORS With the car moving, catch the ray of a photocell (light barrier); the lift will stop and remain stationary until the removal of the obstacle.
  • Page 11 HP - Platform lift FINAL TESTS List of installed components: Safety components Component type Landing door lock Block valve Safety brake Electronic safety device (floor levelling) LIFT N° ____________________________________________ YEAR OF MANUFACTURE: ______________________________ LOAD: __________________________________________ kg TRAVEL: _________________________________________ m N°...
  • Page 12 HP - Platform lift FINAL TESTS Final commissioning confirmation for lift N° ____________________________________________ The tests have been carried out with positive results in case of positive results, the lift can be considered compliant with the Italian law D.Lgs. 27.01.2010, n°...
  • Page 13 HP - Platform lift FINAL TESTS COPY FOR THE SUPPLIER Final commissioning confirmation for lift N° ____________________________________________ The tests have been carried out with positive results in case of positive results, the lift can be considered compliant with the Italian law D.Lgs. 27.01.2010, n°...
