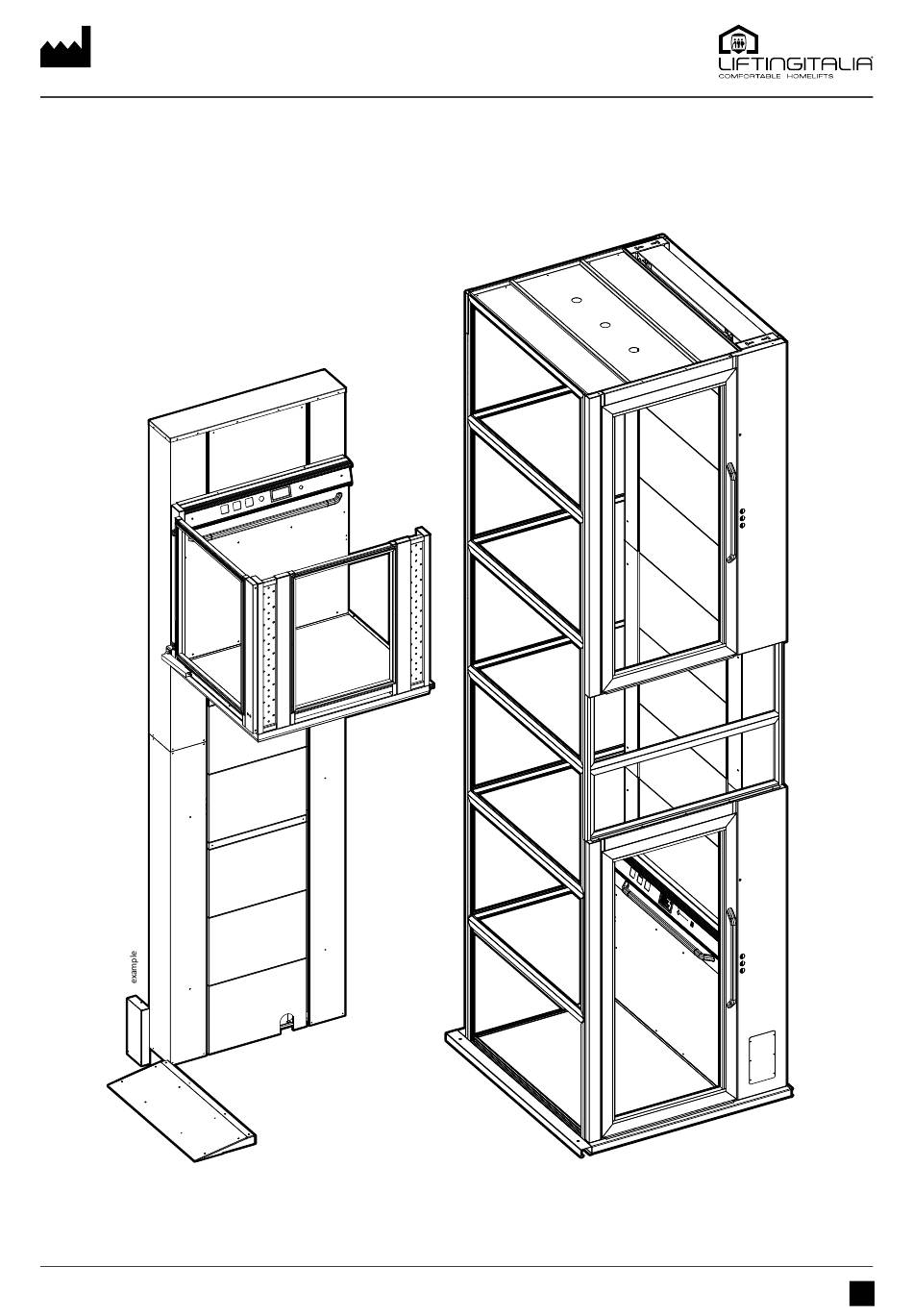

- Page 1 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 DomoFlex Screw-driven lifting platform MAINTENANCE INSTRUCTIONS IM.TEC.074.EN_rev.1.2 www.li� ingitalia.com - info@li� ingitalia.com (18) - February 2022...
- Page 2 DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS 20220222 Update p.11 22.02.2022 General update 10.01.2020 General update 01.05.2019 Checks updated, door maintenance added 06.09.2017 Rev. Description Date IM.TEC.074.EN_rev.1.2 (18) - February 2022 All rights reserved...
-
Page 3: Table Of Contents
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS TABLE OF CONTENTS PURPOSE OF THE MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 PERSONAL SECURITY AND RISK RECOGNITION . -
Page 4: Purpose Of The Manual
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS SCOPO DEL MANUALE PURPOSE OF THE MANUAL The purpose of this manual is to provide correct informati on on the installati on and correct use of the product, in order to contribute to personal safety and to the proper functi oning of the system. Keep the manual for the enti re life of the product. In the event of a change of ownership, the manual must be provided to the new user as an integral part of the product. -
Page 5: Manual Reading Guide
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS GUIDA ALLA LETTURA DEL MANUALE MANUAL READING GUIDE WARNING SIGN GENERAL DANGER ELECTRICITY DANGER DANGER FLAMMABLE MATERIAL DANGER OF FALL BY A LEVEL DANGER SUSPENDED LOADS DANGER OF CRUSHING PROHIBITION SIGN PROHIBITED TO WALK ON OR STOP... -
Page 6: General Dispositions And Installation Site Management
Should any anomalies or damage be found, please dispatch them in writi ng on the transport document to the transport company, giving writt en noti ce to LIFTINGITALIA S.r.l. NOTE: In this manual, we will talk about "SHAFT" meaning for it the base slab, the slab of landing and the ver� cal wall that connects its slabs. -
Page 7: Preliminary Controls
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS PRELIMINARY CONTROLS VERIFICHE PRELIMINARI 2 .1 . VERIFICHE PRELIMINARI DI SICUREZZA PRELIMINARY SAFETY CHECKS WARNING BEFORE STARTING THE INSTALLATION/MAINTENANCE, YOU NEED TO: • Check that the main electrical system is up to standard and provided with adequate grounding;... -
Page 8: Equipment And Materials Required For Maintenance
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS ATTREZZATURE E MATERIALI NECESSARI PER LA MANUTENZIONE EQUIPMENT AND MATERIALS REQUIRED FOR MAINTENANCE INFORMATION NOTICE The lift maintenance operations must be carried out by qualified personnel, authorized in accordance with the current legislation. DIGITAL PORTABLE INSULATION CHRONOMETER TAPE MEASURE MULTIMETER LAMP TAPE SCISSORS FOR HAMMER RUBBER HAMMER PLIERS WRENCH... -
Page 9: Test Procedure
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS TEST PROCEDURE VERIFICA DELL’IMPIANTO The platform lift has been designed to reduce the necessity of periodical maintenance. The safety components have been certified in accordance with the current regulations. The platform lift has been certified in accor- dance with Machine Directive 2006/42/CE, to guarantee the maximum realibility of the products and the complete user’s safety. -
Page 10: Maintenance Operations
Installation Manual; these are to be repeated, should there be a time gap of more than six months between the installation and the commissioning dates, or should the service be suspended for more than six months. Should any element need to be replaced, we recommend using original components from the supplier LIFTINGITALIA S.r.l. NOTICE The lift maintenance operations must be carried out by qualified personnel, authorized in accordance with the current legislation. - Page 11 DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS 5 .2 . IN FOSSA IN THE PIT CAUTION DANGER OF CRUSHING - BEFORE ACCESSING THE PIT IT IS MANDATORY: • Activate the “pit safety device” (Safe-Pit) as indicated in the following instructions. • Open the main switch located in the power supply panel (ref. IM.TEC.026 § 5.6). • Perform the anti-entrapment procedures described in the following instructions (point 4). SAFE-PIT* CLOSED (deactivated) SAFE-PIT* OPEN (activated) * SAFE-PIT = PIT SAFETY 1.
-
Page 12: Inside The Car
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS 5 .3 . A BORDO DELLA PIATTAFORMA INSIDE THE CAR WORKING ON THE BACK SIDE OF THE CONTROL BOARD The lifting platform has been designed to ensure an easy access to the drive unit and platform shoes. -
Page 13: Maintenance Operations : Frequency And Description
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS 5 .5 . DESCRIZIONE E PERIODICITÁ DELLE OPERAZIONI DI MANUTENZIONE MAINTENANCE OPERATIONS : FREQUENCY AND DESCRIPTION RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • CAR MOVEMENT Check the correct car movement and stops using the related commands. - Page 14 DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years SENSITIVE SAFETY EDGES • • Check the efficiency of all the sensitive safety edges: remain in car and command the ascent;...
- Page 15 DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years 10 . GROUNDING • • 1 Verify the efficiency of the grounding and the electrical circuit insulation, as described in the electrical scheme.
-
Page 16: Landing Doors - Maintenance
DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS LANDING DOORS - MAINTENANCE MANUTENZIONE PORTE DI PIANO 6 .1 . LUMIERE - CHIUDIPORTA MANUALE LUMIERE - MANUAL DOOR CLOSER ADJUSTING THE CLOSING SPEED AND THE FORCE OF THE FINAL STROKE, which are usually performed using special screws, ARE IMPORTANT, both to adapt perfectly the action of the door-closer to the weight of the door on which it is applied, and to ensure effective operation in all seasons. -
Page 17: Landing Doors - Use Of Emergency Key
Usually a damaged frame (especially if the damage was caused by a bending, excessive heat etc.) cannot be replaced. The damaged parts must be replaced. Only spare parts by LIFTINGITALIA S.r.l. can be used for replacement. The repair operations must be carried out by qualified personnel, with the maximum care, to guarantee post repair efficiency. - Page 18 DomoFlex - Screw-driven lifting platform MAINTENANCE INSTRUCTIONS IM.TEC.074.EN_rev.1.2 (18) - February 2022 All rights reserved...
