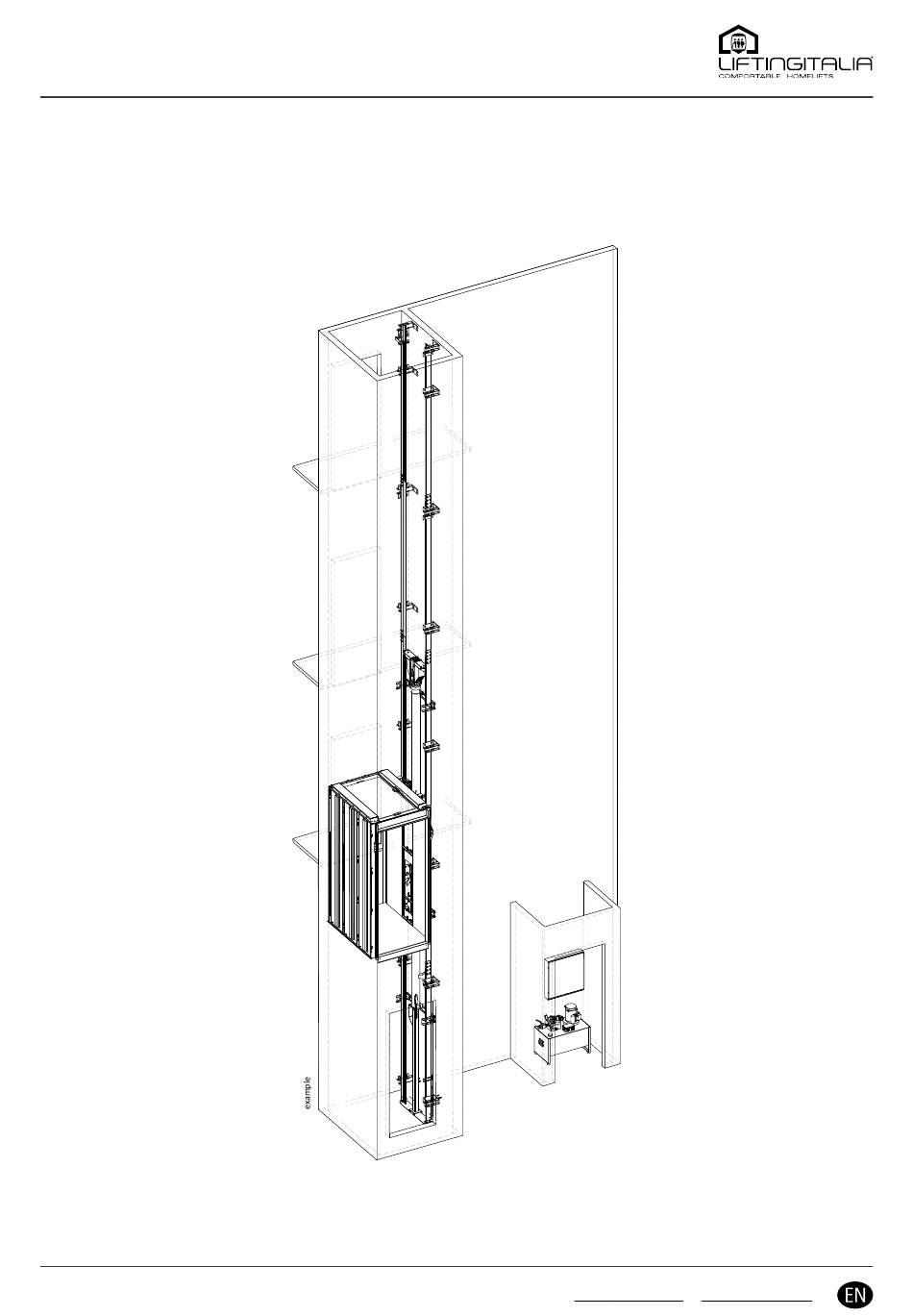

- Page 1 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 InDomo HP Platform lift MAINTENANCE INSTRUCTIONS IM.TEC.027.EN_rev.6.3 (26) www.li� ingitalia.it - info@li� ingitalia.it - February 2022...
- Page 2 HP - Platform lift MAINTENANCE INSTRUCTIONS Update p. 7 22.02.2022 Insertion Lumiere maintenance, update spare parts list 14.06.2018 Insertion p. 9 - Maintenance in case of counter-ceiling 16.05.2018 General update and new layout 30.01.2013 Nomenclature update 26.05.2010 Detail revision 02.05.2010...
-
Page 3: Table Of Contents
HP - Platform lift MAINTENANCE INSTRUCTIONS TABLE OF CONTENTS GENERAL REQUIREMENTS AND INSTALLATION SITE MANAGEMENT ......6 1.1. - Page 4 HP - Platform lift MAINTENANCE INSTRUCTIONS SCOPO DEL MANUALE PURPOSE OF THE MANUAL The purpose of this manual is to provide correct informati on on the installati on and correct use of the product, in order to contribute to personal safety and to the proper functi oning of the system. Keep the manual for the enti re life of the product. In the event of a change of ownership, the manual must be provided to the new user as an integral part of the product.
- Page 5 HP - Platform lift MAINTENANCE INSTRUCTIONS GUIDA ALLA LETTURA DEL MANUALE MANUAL READING GUIDE WARNING SIGN GENERAL DANGER ELECTRICITY DANGER DANGER FLAMMABLE MATERIAL DANGER OF FALL BY A LEVEL DANGER SUSPENDED LOADS DANGER OF CRUSHING PROHIBITION SIGN PROHIBITED TO WALK ON OR STOP...
-
Page 6: General Requirements And Installation Site Management
Should any anomalies or damage be found, please dispatch them in writi ng on the transport document to the transport company, giving writt en noti ce to LIFTINGITALIA S.r.l. NOTE: In this manual, we will talk about "SHAFT" meaning for it the base slab, the slab of landing and the verti cal wall that connects its slabs. -
Page 7: Preliminary Controls
HP - Platform lift MAINTENANCE INSTRUCTIONS PRELIMINARY CONTROLS 2.1. PRELIMINARY SAFETY CHECKS PRELIMINARY SAFETY CHECKS WARNING BEFORE STARTING THE INSTALLATION/MAINTENANCE, YOU NEED TO: • Check that the main electrical system is up to standard and provided with adequate grounding; Otherwise, stop the installati on unti l the Customer has updated the system. -
Page 8: Test Procedure
HP - Platform lift MAINTENANCE INSTRUCTIONS TEST PROCEDURE The platform lift has been designed to reduce the necessity of periodical maintenance. The safety components have been certified in accordance with the current regulations. The platform lift has been certified in accor- dance with Machine Directive 2006/42/CE, to guarantee the maximum realibility of the products and the complete user’s safety. -
Page 9: Manintenance Tools
HP - Platform lift MAINTENANCE INSTRUCTIONS MANINTENANCE TOOLS NOTICE The lift maintenance operations must be carried out by qualified personnel, authorized in accordance with the current legislation. Hammer Insulation tape Scissors for electricians Rubber Tape measure hammer Flat-blade Spanner... -
Page 10: Out Of Service Mode
Should any element need to be replaced, we recommend using original components from the supplier LIFTINGITALIA S.r.l. The operations described below are to be effected by qualified personnel only. -
Page 11: In The Pit
HP - Platform lift MAINTENANCE INSTRUCTIONS 4.4. IN THE PIT • CAUTION DANGER OF CRUSHING - BEFORE ACCESSING THE PIT IT IS MANDATORY: • Activate the “pit safety device” (Safe-Pit) as indicated in the following instructions. • Open the main switch located in the power supply panel (ref. IM.TEC.026 § 5.6). -
Page 12: Inside The Car
HP - Platform lift MAINTENANCE INSTRUCTIONS 4.5. INSIDE THE CAR WORKING ON THE BACK SIDE OF THE CONTROL BOARD The Platform lift has been designed to guarantee an easy access to the safety brake directly from the car. Follow the below instructions: •... - Page 13 HP - Platform lift MAINTENANCE INSTRUCTIONS ACCESSING THE UPPER PART OF THE LIFT The Platform Lift has been designed in order to avoid maintenance operations on the car roof that is normally not bearing: all the sensors are fixed above the frame, so that the operator can access easy them, by leaning over the car ceiling while wor- king inside the car.
- Page 14 HP - Platform lift MAINTENANCE INSTRUCTIONS CABIN ROOF ACCESS 1-piece ceiling 3-piece ceiling IM.TEC.027.EN_rev.6.3 (26) - February 2022 All rights reserved...
- Page 15 HP - Platform lift MAINTENANCE INSTRUCTIONS The car roof is not bearing. Do not step on the roof, or on the rims. • put the headroom spacer in verticall position. The acoustic signal will HEADROOM SPACER OPEN be disabled, which means that the maintenance in the headroom is possible;...
-
Page 16: Use Of Emergency Key
HP - Platform lift MAINTENANCE INSTRUCTIONS USE OF EMERGENCY KEY RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • CAR MOVEMENT AND FLOOR LEVELLING Check the correct car movement and stops using the related commands. - Page 17 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • PHOTOCELLS OR LIGHT BARRIERS (if any) Check the efficiency of all the photocells or light barriers. WITHOUT car doors: remain in car and command the ascent;...
- Page 18 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • GUIDE RAIL SHOES The play of the shoes must be 1-2 mm. Major gaps can be made up for, by means of shoe bearers adjustment;...
- Page 19 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years BLOCK VALVE • • 1 Check the block valve activation with the car fully loaded and stationary at the upper lan- ding level.
- Page 20 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • 2 MAXIMUM STATIC PRESSURE WITH FULL LOAD Make sure that the working pressure has not been changed (fully loaded car).
- Page 21 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • 2 SAFETY BRAKE DEVICE Verify the correct functioning (empty car). check the synchronizing leverism of the two brakes;...
- Page 22 HP - Platform lift MAINTENANCE INSTRUCTIONS RECOMMENDED FREQUENCY OPERATION every every 1/2 every 1st run 6 months year(s) 5/10 years • • 2 PLATES - SCHEMES Verify the presence of the followings schemes and plates: pit plate (danger in case of access, safety devices required;...
-
Page 23: Use Of The Landing Doors Emergency Key
HP - Platform lift MAINTENANCE INSTRUCTIONS USE OF EMERGENCY KEY USE OF THE LANDING DOORS EMERGENCY KEY Opening doors by means of the triangular emergency key may be dangerous. Be extremely careful. A difference of height exceeding 30 cm between the car floor and the landing level, may imply a serious risk of falling inside the shaft. -
Page 24: Use Of Emergency Key
ATTENZIONE Usually a damaged frame (especially if the damage was caused by a bending, excessive heat etc.) cannot be replaced. The damaged parts must be replaced. Only spare parts by LIFTINGITALIA S.r.l. can be used for replacement. The repair operations must be carried out by qualified personnel, with the maximum care, to guarantee post repair efficiency. -
Page 25: Lumiere Floor Door Maintenance - Manual Door Closer
HP - Platform lift MAINTENANCE INSTRUCTIONS LUMIERE FLOOR DOOR MAINTENANCE - Manual door closer INFORMATION ADJUSTING THE CLOSING SPEED AND THE FORCE OF THE FINAL STROKE, which are usually performed using special screws, ARE IMPORTANT, both to adapt per- fectly the action of the door-closer to the weight of the door on which it is applied, and to ensure effective operation in all seasons.
