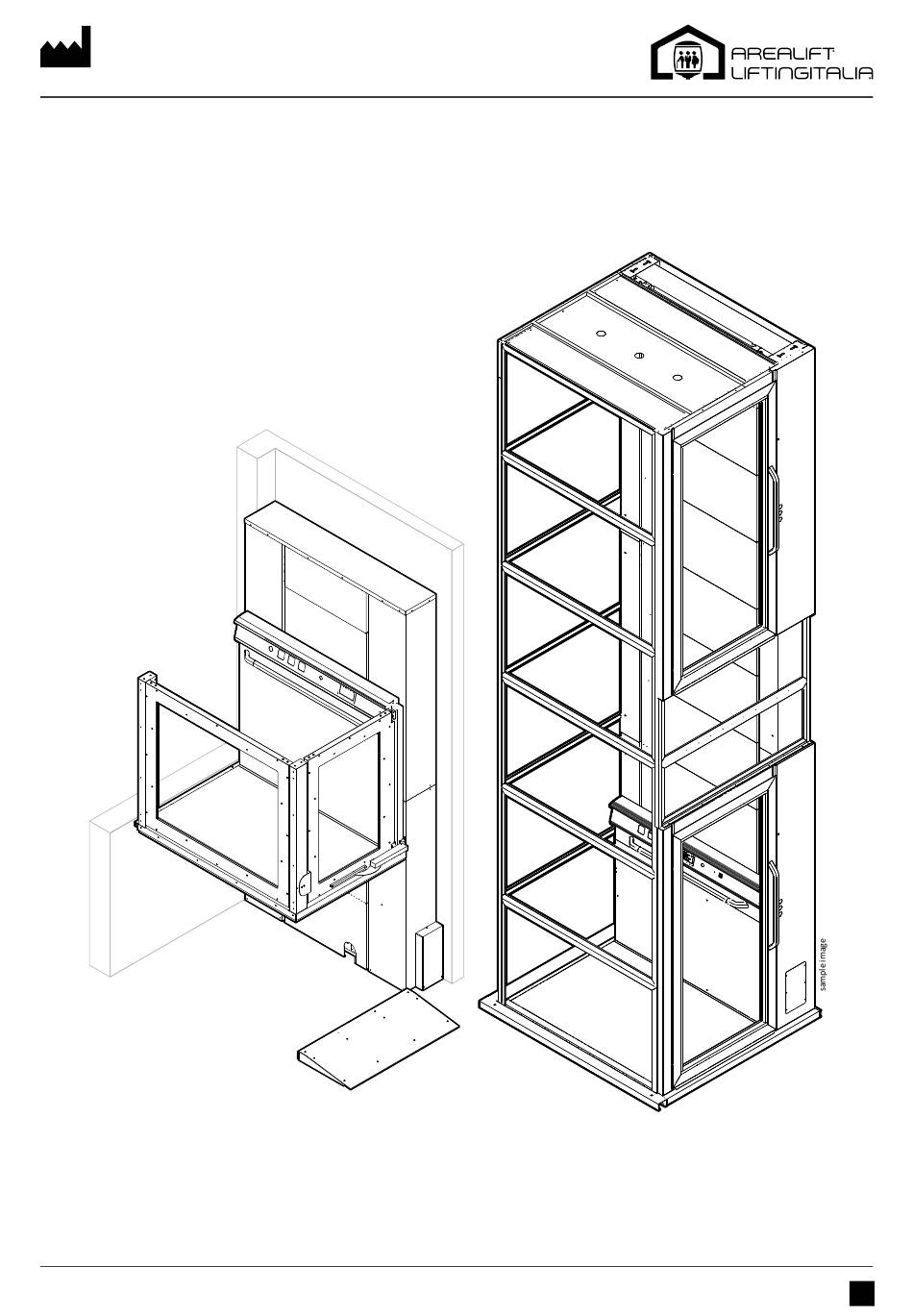

  • Page 1 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 DomoFlex Screw-driven lifting platform MM13 CONTROL CABINET INSTALLATION AND DIAGNOSTICS IM.TEC.077.IT_rev.2 (24) www.li� ingitalia.com - info@li� ingitalia.com - May 2019...
  • Page 2 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 20190525 General update 25.05.2019 General modifications for on-board panel insertion 18.09.2017 Rev. Description Data IM.TEC.077.IT_rev.2 (24) www.li� ingitalia.com - info@li� ingitalia.com...

  • Page 3: Table Of Contents

    DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS INDEX GENERAL DISPOSITIONS AND INSTALLATION SITE MANAGEMENT ..........6 1.1.
  • Page 4 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 SCOPO DEL MANUALE PURPOSE OF THE MANUAL The purpose of this manual is to provide correct informa� on on the installa� on of the product, in order to contribute to personal safety and to the proper func�...
  • Page 5 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS GUIDA ALLA LETTURA DEL MANUALE MANUAL READING GUIDE WARNING SIGN GENERAL DANGER ELECTRICITY DANGER DANGER FLAMMABLE MATERIAL DANGER OF FALL BY A LEVEL DANGER SUSPENDED LOADS DANGER CORROSIVE SUBSTANCES PROHIBITION SIGN PROHIBITED TO WALK ON OR STOP...

  • Page 6: General Dispositions And Installation Site Management

    Should any anomalies or damage be found, please dispatch them in wri� ng on the transport document to the transport company, giving wri� en no� ce to LIFTINGITALIA S.r.l. NOTE: In this manual, we will talk about "SHAFT" meaning for it the base slab, the slab of landing and the ver� cal wall that connects its slabs.

  • Page 7: Preliminary Controls

    DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS PRELIMINARY CONTROLS VERIFICHE PRELIMINARI 2.1. VERIFICHE PRELIMINARI DI SICUREZZA PRELIMINARY SAFETY CHECKS WARNING BEFORE STARTING THE INSTALLATION, YOU NEED: • Check that the main electrical system is up to standard and provided with adequate grounding;...

  • Page 8: Product Description

    LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 DESCRIZIONE PRODOTTO INFORMATION PRODUCT DESCRIPTION 3.1. DESCRIZIONE GENERALE E TERMINOLOGIA GENERAL DESCRIPTION AND TERMINOLOGY The electrical equipment of the domoFLEX lift is designed on the purpose to obtain the best possible integration between the elec- trical and mechanical parts.

  • Page 9: Mm13 Control Cabinet - Principal Components

    DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS COMPONENTI PRINCIPALI QUADRO MM13 MM13 CONTROL CABINET - PRINCIPAL COMPONENTS INFORMATION 4.1. ALIMENTAZIONE SWITCHING, CBE5901 e CBE5902 SWITCHING POWER SUPPLY, CBE5901 and CBE5902 This paragraph is meant to describe the functions of the principal devices of the electrical cabinet, the attention being focused on the problem solving aspects.

  • Page 10: Itf232 - Serial Interface Card

    LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 4.3. ITF232 - SCHEDA DI INTERFACCIA SERIALE ITF232 - SERIAL INTERFACE CARD It manages the compartment and car serial communication bus allowing the card to communicate directly with the serial components in use (connections on wiring diagrams).

  • Page 11: First Run Connection

    DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS FIRST RUN CONNECTION COLLEGAMENTI PER IL PRIMO AVVIAMENTO a. The card is supplied with electrical bridges on the XQ1, XQ14 and XQ17 terminals for the first movement in maintenance mode using the 0 and 1 buttons present on the platform pushbutton panel.

  • Page 12: Magnets Layout

    LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 MAGNETS LAYOUT DISPOSIZIONE MAGNETI STOP AND SLOW-DOWN MAGNETS 6.1. MAGNETI DI FERMATA E RALLENTAMENTO INFORMATION Two assemblers are needed:: one in the machine room in front of the control panel and the other near the sensors.
  • Page 13 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS Hereunder, the recommended sensor location. LEGEND Re-phasing sensor Descent sensor (stop and slowdown) Ascent sensor (stop and slowdown) Lowest floor Intermediate floors Upper floor Bypass zone Rall.
  • Page 14 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 IS ID IM.TEC.077.IT_rev.2 (24) www.li� ingitalia.com - info@li� ingitalia.com - May 2019...

  • Page 15: Insulation Tests

    DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS INSULATION TESTS PROVE DI ISOLAMENTO • Position the car between two floors and check if the safety chain is closed. • Disconnect the electrical cabinet from the mains supply by opening all the switches of the power supply board. •...

  • Page 16: Plc Input / Output Diagnostics

    LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 DIAGNOSTICA INGRESSI / USCITE PLC INPUT / OUTPUT DIAGNOSTICS To check the status of the logic signals on the card, refer to the LEDs located in the respective terminals.
  • Page 17 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS LED KEY INPUT ELETTRICAL OUTPUT ELETTRICAL SIGNAL SIGNAL (LED) DIAGRAM (LED) DIAGRAM SB_PEF; OVERLOAD FAULT SIGNAL HL_OVL PIT SAFETY AND EMERGENCY SQ_FF; OCCUPIED LIGHT HL_CAB BUTTON SB_MEM NOT_USED OVERTRAVEL SAFETY DEVICE...
  • Page 18 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 INPUTS PIT SAFETY AND EMERGENCY BUTTON Label It deactivates if one of the pit safety devices or the manual emergency descent button are Description triggered.
  • Page 19 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS Label LOCKS SAFETY Description It deactivates if one of the floor doors is unlocked. STANDBY only SQ_ABP closed Check that all floor doors are closed and that all preliminary contacts are closed SQ_APP termi- INCORRECT STATUS nal XF2.7 and XF2.8.
  • Page 20 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 Label BATTERY CHARGED Description It deactivates if the battery is flat STANDBY only The battery is charged check the battery charge voltage and that the batteries are connected;...
  • Page 21 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS Label SCREW LIFTING AND BOTTOM SENSOR Description It deactivates if the screw lifting sensor is activated, or if one or more contacts on the bottom sensor are triggered. STANDBY only SQ-VIT and SQ_FON closed check the screw position and the settings of the SQ-VIT sensor;...
  • Page 22 LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 OUTPUTS OVERLOAD FAULT SIGNAL Label It activates if an overload is detected or flashes if a fault occurs. Description STANDBY only An overload or fault occurs.
  • Page 23 DomoFlex - Electric screw driven platform lift MM13 CONTROL CABINET - INSTALLATION AND DIAGNOSTICS Label FLOOR DOORS OPENING Description Active at each stop for a certain time, adjustable by the TM potentiometer present on the card. STANDBY only IF LED is ON Door opening command is given.

  • Page 24: Diagnostics By Means Of Blinking Code

    LIFTINGITALIA S.r.l. Via Cadu� del Lavoro, 16 - 43058 Bogolese, Sorbolo (PR) - Italy Phone +39 0521.695311 - Fax +39 0521.695313 DIAGNOSTICA MEDIANTE CODICE A LAMPEGGI DIAGNOSTICS BY MEANS OF BLINKING CODE The errors/aberrations are pointed out by means of a blinking code received by the overload signal in the car and the HL_PTA (FLOOR ZONE) warning light on the FEM panel, according to the following table.
