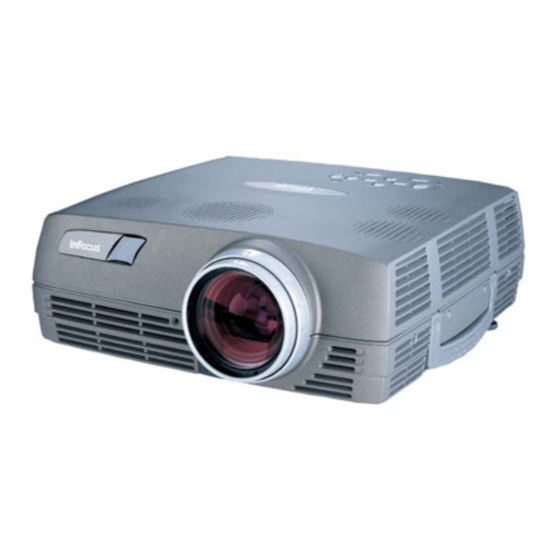

Installing optional lens LENS-016 or LENS-017

This projector allows the installation of wide angle and long throw lenses.

Remove the optical engine (see the online or PDF version of the projector service information).

Place the optical engine on the workbench so that the projection lens faces upward.

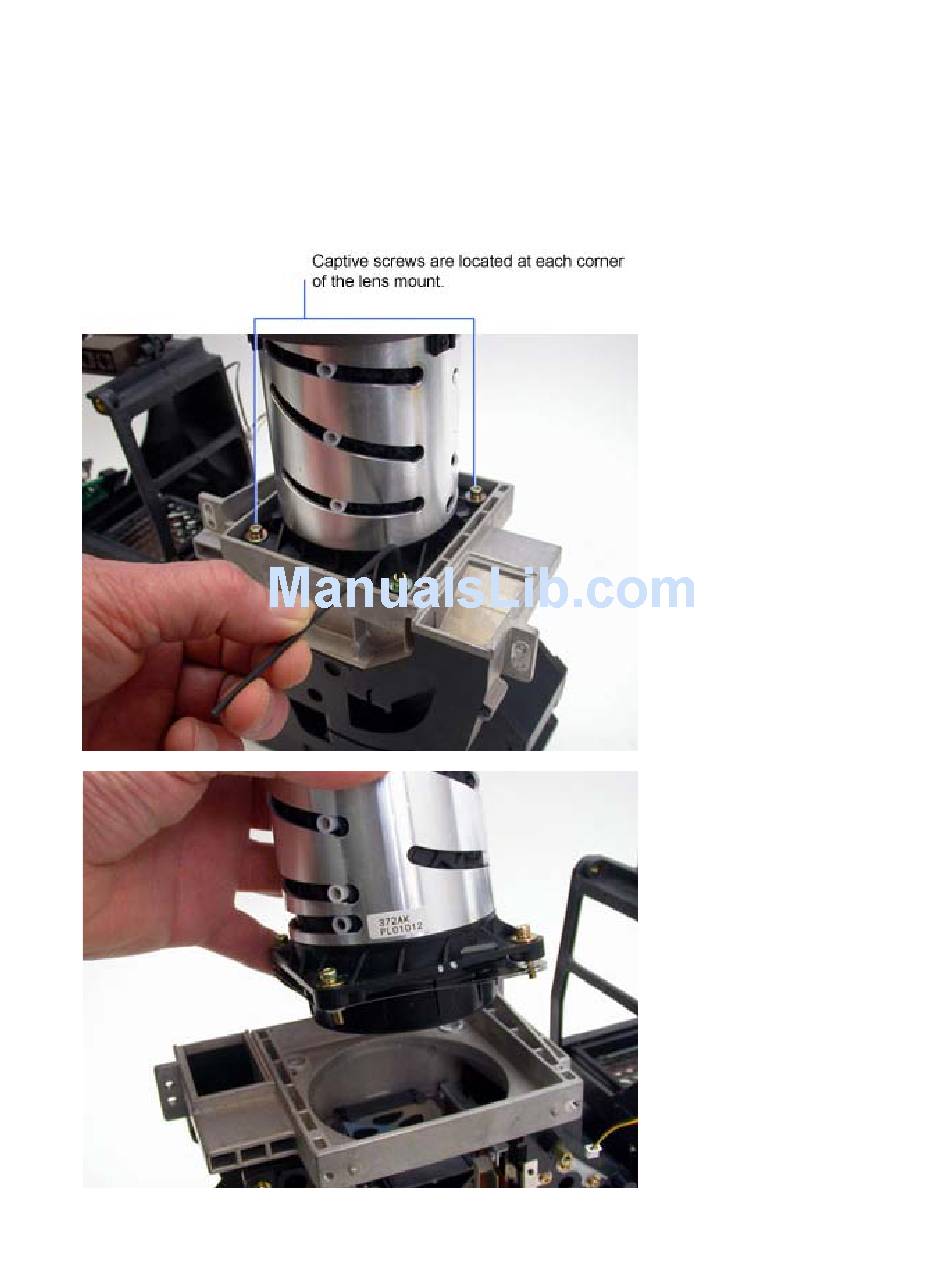

Use an M2.5 hex wrench to loosen the four captive screws that secure the standard zoom lens to the

front of the optical engine. Then lift the lens off of the engine.

Table of Contents

Do you have a question about the LP790 and is the answer not in the manual?

Page 1 This projector allows the installation of wide angle and long throw lenses. Remove the optical engine (see the online or PDF version of the projector service information). Place the optical engine on the workbench so that the projection lens faces upward.
Page 2 On the optional lens, remove the lens mount from the end of the lens barrel. To do this twist it counterclockwise while hold the lens barrel stationary. Place the lens mount on the metal base of the optical engine. If the lens mount includes an orientation stamp make sure it is located in the proper position.
Page 3 See the illustration above for screw locations. Install the lens on the lens mount. To do this, turn the lens clockwise. Make sure you do not cross thread the lens and mount. Reassemble the projector, following the procedure in the service information.
