Summary of Contents for Fisher & Paykel AWF60MD

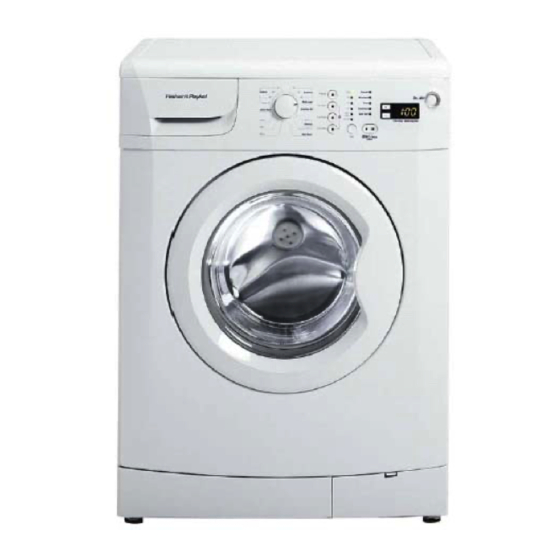

- Page 1 FRONT LOADING WASHING MACHINE AWF60MD, WH60F60W1, WH70F60W1 479607 Fisher & Paykel Appliances © 2010...
-
Page 2: Table Of Contents
CONTENTS SPECIFICATIONS...................3 Electric Supply......................3 Capacity ........................3 Door Lock ........................3 Heating Element (Double thermosfuse) ............... 3 NTC ..........................3 Water Valves ........................ 3 Drain Pump ........................4 Motor ..........................4 FUNCTIONAL TEST PROGRAM ..............5 Functional Test Program 1 ................... 5 Functional Test Program 2 ................... -
Page 3: Specifications
SPECIFICATIONS Electric Supply Voltage 220 – 240V Frequency 50Hz Power Consumption 2.2kW – 2.6kW Fuse Rating Capacity Function AWF60MD/WH60F60W1 WH70F60W1 Cotton Daily 3.5kg 3.5kg Synthetic Quick wash 2.5kg 2.5kg Delicates Wool 1.5kg 1.5kg Hand wash Door Lock Lock Time (Maximum) 6 seconds @20C... -
Page 4: Drain Pump
Drain Pump Nominal Voltage 230V Nominal Wattage 35W Flow Rate 15 litres/minute Check for continuity (refer to flow chart for Not Draining) Motor Type Single Phase, UM/AC Tacho Resistance 54 Wash Wattage 720W Spin Wattage 350W Resistance (refer to flow chart for Machine Doesn’t Work) -
Page 5: Functional Test Program
FUNCTIONAL TEST PROGRAM All models of machines have a functional test program. Depending on the software version will depend on the type of functional test that can be carried out. Functional Test Program 1 is valid for products, which were produced before August 2006 (serial numbers begin with 06-XXXXXX-08). - Page 6 Note: If a particular function fails to activate it would indicate a failure in that area. LED check All the LED’s on the display will blink. Fills from the cold valve into the Prewash Prewash (Cold) Compartment Fills from the cold valve into the Main wash Main wash (Cold) Compartment Fills from the cold valve into the Softener...
-
Page 7: Functional Test Program 2
Functional Test Program 2 Note: The following information is applicable to software version 6038 and later. To enter the test program follow the steps below. Note: Remove any garments from the machine before commencing this test. Step 1 Ensure that the machine is turned on at the power point, and off on the display, also ensure that the On/Off button is in the Off position. -
Page 8: Heater Testing
On entering the functional test “----“ will be displayed after the door is locked. Fault code If a fault code has occurred the fault code will appear on the display. Software The software version of the Control Module will be version displayed in the LED screen. -
Page 9: Diagnostics
Remove the tabletop. Start the test program. Place a clamp-on amp meter around either Grey or Red wire going to the element. The heater will activate when the test program reaches Step 6. The current draw will be approximately 8.5 amps. Diagnostics If a fault occurs in the product one of four LED’s will start flashing. -
Page 10: Fault Codes
FAULT CODES Before replacing any components be sure to check the harness and connections. Note: As soon as a failure is detected by the electronics, the fault code is written to memory. The fault code can only be viewed by entering the Service Mode. - Page 11 After Filling Step is pauses for 120 seconds, it then will Performed) repeat this process a total of 8 times. If the machine is unable to correct the problem, the motor will not be energised again, the pump motor will turn on, and the error code occurs (Pre wash LED starts Flashing).
-
Page 12: Flow Chart
Flow Chart 1. Washing Machine Does Not Work See the details on W/M does not page 9 under work Change the Diagnostics. door lock switch. Check the Is any of the LED’s blinking continuity in the program follower or between J6.6 pin W/M pass to ‘pause’... - Page 13 2. Washing Machine Doesn’t Work (After Filling Step Is Performed) W/M does not work (after filling NOTE: step is performed) After the filling step is completed. If the motor does not run or the tacho does not been generated a voltage, which is proportional with Be sure that, the filling step is the motor revolution (tacho defect).
- Page 14 3. Washing Machine Takes Water from Wrong Compartment of Detergent Drawer W/M takes water form wrong compartment of detergent drawer. The valves connections should be like below: KN5.1 – Common KN5.2 – Pre wash valve Reconnect the cables properly. KN5.3 – Main wash valve KN5.4 –...
- Page 15 4. No Heat NOTE: W/M does not heat If NTC sensor is faulty, the program is completed without heating (cold wash). New program can be started. If the heater is open circuit, the program is performed with cold wash and the new program can be Ensure that, NTC socket is connected started.
- Page 16 5. Not Draining W/M does not drain. Start the pump program. Check and clean the pump filter Does pump motor run? This can be Drain hose level should be between checked by touching the pump filter 0.5 and 1 meter from the floor with hand.
- Page 17 6. Unable to select a program Program selector resistance list: Not able to select any program (As 1. Position ~1 warning softener led blinking in 2. Position ~2 program follower). 3. Position ~3 4. Position ~4 5. Position ~5 6. Position ~6...
- Page 18 7. Spinning When Washing If 3 spinning attempts are occurred by 30 seconds W/M is spinning time intervals, this shows in washing step. motor triac short circuit failure. Tacho failure. (8 trials After spinning with 120 seconds time attempt, does it pass intervals).
- Page 19 8. No Water W/M does not take in water (as warning rinse LED blinks in program follower). Does any program Check the taps. Are start except pump and they open? spin programs? Check the filter of the Open the taps taps.
- Page 20 9. LED Blinking One of the LED’s in the program follower is blinking See the details and ways to overcome Is Conditioner LED blinking in the this failure under “Not able to select program follower? any program” title Is Rinse LED blinking in the See the details in “No Water”...
