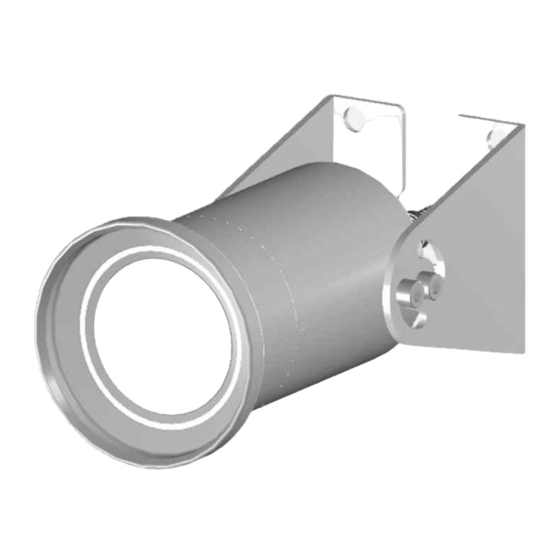

- Page 1 Underwater CCTV Camera User Manual iAQUA Series...
- Page 2 User Manual IAQUA Series Copyright ©2021 INDUSVISION Inc. All rights reserved. Notes on the use of copyrights and trademarks The names of products and companies mentioned in this manual are trademarks or registered trademarks belonging to the company. It is a trademark.
-
Page 3: Table Of Contents
Summary Contents PC system recommended specifications • CPU : Intel Core 2 Duo 2.4 GHz or more (1920x1080 30fps Use) • Components Intel Core i7 2.8 GHz or more (1920x1080 60fps Use) • Resolution : 1280x1024 or more (32 bit color) •... - Page 4 Components Before starting the installation, remove the following components enclosed in the product box. Please check carefully to ensure that there are no missing parts during installation. Basic Components Component Notes M6*30 • The IVEX-EMC-B300 submersible cable can be optionally selected from three types of 20m, 50m, and 100m.
-
Page 5: Part Names
Part Names Part names for each product are important to provide fast and accurate service for each part, so please be aware of it. IAQUA Series Bracket classification IAQUA Series ④ ③ ⑤ ② ① [Base Bracket Type A_Basic] [Wall Mount Bracket Type B_Option]... -
Page 6: Safety Rules
Safety rules Caution when working Operation is very important for the correct functioning of the system. Please proceed with the installation in the order indicated in the product instruction manual. Please read the product instruction manual carefully before installing and •... -
Page 7: Precautions Before Install
Precautions before Installation Before proceeding with the installation of the product, carefully read the chapter'Safety Rules' in the product manual. Check the packing box Safe disposal of packaging materials • Among the packaging materials, PE foam other than paper is Information provided on the subject to separate discharge. - Page 8 How to Install Before proceeding with the installation of the product, carefully read the chapter'Safety Rules' in the product manual. Installation using base bracket Fixed to vertical wall [Floor installation] [Wall mounting] [Ceiling installation] Set anchor Bracket from top to bottom (IVEX-WB02) •...
- Page 9 How to Install Before proceeding with the installation of the product, carefully read the chapter'Safety Rules' in the product manual. Installation using ceiling bracket • The ceiling bracket can be fixed to the ceiling wall. • Fix the bracket to the wall with the provided set anchor that can withstand at least 4 times the weight of the device.
- Page 10 How to Install It is strongly recommended that all devices be carried out after final testing prior to installation at the final installation site. PoE model connection diagram How to connect cables for underwater use [PoE Hub] Connector (female) Connector (male) 1.
-
Page 11: Network Setting
NETWORK setting IP address change After sufficiently checking the IP-related information that can be checked in ‘Checking the packing box’ on page 10, proceed to the following. • Click the Setup item at the top of the Live Monitoring screen. •... - Page 12 NETWORK setting RTSP settings Change Web Port • Click RTSP / ONVIF in the NETWORK item • Click PORT in the NETWORK item → move to RTSP Port → go to Web Port • The default setting of RTSP is as shown in the figure. •...
-
Page 13: How To Set Light
How to set LIGHT Go to Live screen • Check the LIGHT menu at the bottom left of the live screen. ① ② • Select ON for LIGHT in the ON/OFF selection bar of the LIGHT menu. You can adjust the amount of light from 0 to 10 by pressing the + and - buttons. -
Page 14: Firmware Update
Firmware updated Updating the product's firmware may cause the product to stop functioning. So please proceed carefully. Camera firmware update • After clicking SYSTEM UPGRADE in the SYSTEM item • When uploading is complete, → Move on to Select Upgrade File. the message shown on the left appears. -
Page 15: Hd Model Osd Setting
HD model OSD setting System setup OSD menu screen description • This is a menu to select the video output format The main menu is structured as follows ①. • that is important for HD video. • For AF mode adjustment and IR-LED control, refer to the pictures •... -
Page 16: Maintenance
Maintenance Parts used for maintenance of the device are guaranteed by the manufacturer. The manufacturer guarantees only the use of genuine parts. Summary Disposal of replaced parts • Cables must not show any signs of damage or wear, which could •... -
Page 17: Troubleshooting
→ If the IAQUA Series is used in an environment outside the guaranteed Problem: The device does not appear on the temperature range, it may cause functional problems. - Page 18 Troubleshooting 1. When receiving the product, be sure to install the product on-site when there is no problem after checking the pre-checklist according to the following procedure before installation on-site. 2. Please note that for problems that occur during on-site delivery without prior checklist inspection, service measures may be charged in some cases. Checking list Check □...
-
Page 19: Technical Drawing
Technical drawing The unit of measurement is expressed in mm. IAQUA Series (Type A) IAQUA Series (Type B) Underwater CCTV Camera Manual... - Page 20 Technical drawing The unit of measurement is expressed in mm. Wall Mount Bracket Top Mount Bracket Underwater CCTV Camera Manual...
-
Page 21: Product Warranty
Republic of Korea based on the production date. ※ When requesting service, please fill in the above information and send it A/S and technical inquiry: +82 032-724-9077 with the product. E-mail : info@indusvision.com Web : http://www.indusvision.com Underwater CCTV Camera Manual... - Page 22 [MEMO] Underwater CCTV Camera Manual...
