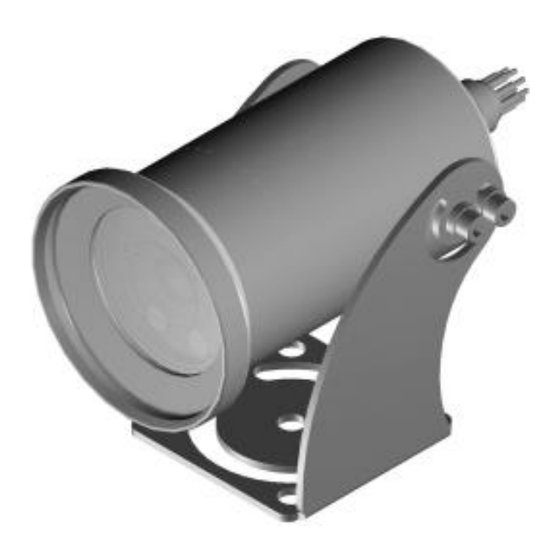

- Page 1 Underwater CCTV Camera Product user manual...
-
Page 2: Warranty
Product User Manual IAQUA Series Notice on Copyright and Trademark Usage Products and company names mentioned in this manual are trademarks or registered trademarks belonging to the company. WARRANTY If the product is not normally installed due to a defect under normal use conditions, The manufacturer will repair it free of charge through the place of purchase. - Page 3 Outline Index PC System Recommended Specifications • Component Information * CPU: Intel Core 2 Duo 2.4 GHz or higher (when using 1920x1080 30fps) Intel Core i7 2.8 GHz or higher (when using 1920x1080 60fps) • Product Division and Part Names * Resolution: 1280x1024 or higher (32-bit color) •...
-
Page 4: Component Information
Component Information Before starting the installation, carefully check the following components enclosed in the product box to ensure that no parts are missing during installation. Basic Components Optional components (Purchased Separately) Picture Explanation Picture Explanation Picture Explanation Picture Explanation Hex Bolt Set Sealing L-Wrench (M5) Wall bracket... - Page 5 Product Division and Part Names Please familiarize yourself with the part names of each product as they are important to provide fast and accurate service for problems in each part. iAQUA-100 Series White Detailed name Detailed name Series Model Name Details DECO-Ring Name...
- Page 6 Product Division and Part Names Please familiarize yourself with the part names of each product as they are important to provide fast and accurate service for problems in each part. iAQUA-200 Series Detailed name Detailed name Series Model Name Details DECO-Ring Name Front Cover...
-
Page 7: Checklist Before Product Installation
Checklist before Product Installation Check product operation information and appearance status Check the specifications of the L wrench [IAQUA-100] [Box] [IAQUA-200] * On the product label on the product packaging box and on the tag on the sunshield portion of the product After checking the information necessary for initial operation such as IP address, ID, password, etc. - Page 8 Select Product Installation Location When selecting a location to install the product, be sure to install it in a place that does not have any inconsistencies as in the case below. Things to consider when installing the product 100M ↑ Salt 35% ↓...
- Page 9 Product Installation and Precautions The manufacturer is not responsible for any problems caused by installing a bracket other than the genuine bracket provided by the manufacturer. Installation using the product's mount bracket Installation using wall mount brackets and ceiling brackets [Loctite 263] [Loctite 263] [Floor installation]...
- Page 10 Product Installation and Precautions The manufacturer is not responsible for water damage caused by not tightening the underwater connector. Underwater connector installation How to use the underwater inlet form - Check the shape of the male/female pins of the underwater connector as - As shown in , connect the product's mount bracket and carabiner, and shown in...
- Page 11 Product Installation and Precautions PRESET FUNCTION iAQUA-100 iAQUA-200 Light ON/OFF With Function With Function Brightness UP With Function With Function Brightness Down With Function With Function Flash ON/OFF With Function Red LED Apply With Function Green LED Apply With Function Blue LED Apply With Function White LED Apply (Default)
-
Page 12: Periodic Cleaning
Maintenance after Product Installation When replacing or maintaining the camera, be sure to move to a safe area. Periodic cleaning Disassembly/assembly of products for inspection - This product is an underwater installation type CCTV camera. - Remove all bolts on the exterior of the mount bracket as shown in - As shown in , disassemble the decoration ring on the top of the main Attachment of marine organisms may interfere with image acquisition. -
Page 13: Network Connection And Setup
Network Connection and Setup You can set the network environment of the camera according to the user's network connection configuration. Install the camera directly to the DSL/Cable modem of the DHCP method Installing the camera directly in a LAN environment External remote pc CAMERA CAMERA... - Page 14 Network Connection and Setup The IP address range of the user's computer and the IP address range of the camera must match for normal web viewer access. Using the IP Search program PC network settings depending on whether an IP sharer is used Network settings Control Panel >...
- Page 15 Network Connection and Setup Web viewer access can be checked in normal operation through Google Chrome and Microsoft Edge browsers. Change IP Settings in Web Viewer Web viewer access admin 1234 - If you press the ‘SETUP’ icon in - Run a web browser such as Chrome or Edge on the user's computer. on the live screen, it will take you to the - Enter the IP address set on the camera into the web browser address bar.
-
Page 16: Rtsp Settings
Network Connection and Setup When setting RTSP, you must first check if the ‘554 PORT’ of the router is open. Firmware update method RTSP settings - Press the ‘SETUP’ icon at the top of the web viewer to enter the SETUP menu. RTSP SECURITY : Set whether to use RTP/RTSP. - Page 17 Installation Inspection Check Sheet 1. When receiving the product, prior to on-site installation, be sure to perform on-site installation only when there is no problem after inspecting the pre-checklist according to the following order. 2. Please note that service measures may be charged for problems that occur during on-site delivery without prior checklist inspection. Checking list Check Remove the IP address tag attached to the product's mount bracket after installing and fixing the device.
