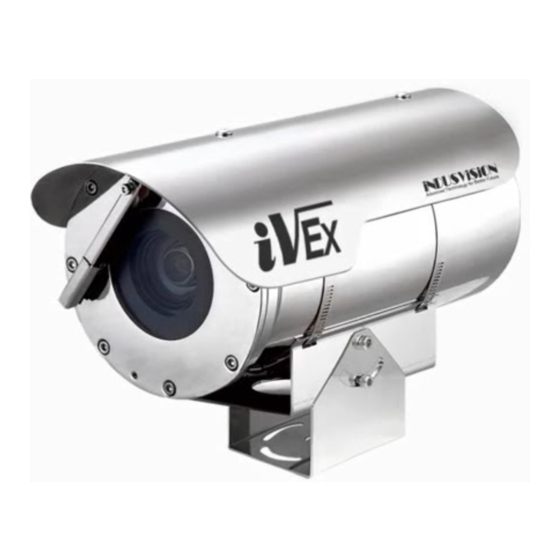

- Page 1 Product instruction Manual...
-
Page 2: Warranty
Product User Manual iVEX-FZ Series Notice on Copyright and Trademark Usage Products and company names mentioned in this manual are trademarks or registered trademarks belonging to the company. WARRANTY If the product is not normally installed due to a defect under normal use conditions, The manufacturer will repair it free of charge through the place of purchase. - Page 3 Outline Index PC System Recommended Specifications • Component Information * CPU: Intel Core 2 Duo 2.4 GHz or higher (when using 1920x1080 30fps) Intel Core i7 2.8 GHz or higher (when using 1920x1080 60fps) • Product Classification and part names * Resolution: 1280x1024 or higher (32-bit color) •...
-
Page 4: Component Information
Explosion Wrench bolt proof cable - The power supply is provided as 12V for IVEX-FZ Series. (However, it is not (M4*8) gland provided for configurations that do not require 12V power supply) - Multi-cable is not provided for PoE-only models. - Page 5 Product classification and part names Please be aware of the part names for each product as they are important for providing quick and accurate service for problems in each part. IVEX-FZ Series [Normal] [GE Glass] Details Details Series Model Details...
- Page 6 Product classification and part names Please be aware of the part names for each product as they are important for providing quick and accurate service for problems in each part. IVEX-FZ-Dual Series [GE Glass] [IRLED(Single)] Details Details Series Model Details Dual Housing Base Bracket IVEX-FZ-WB-Dual IVEX-FZ-41-Dual...
-
Page 7: Safety Rules
About the contents of the manual Please read the product user manual carefully before installing and using this product, and keep the manual in a separate place for future reference. Safety rules 3. Work attention 1. Explosion risk - Verify that the installation method complies with explosion-proof regulations and specifications. - This product complies with the relevant standard codes EN/IEC 60079-14, EN/IEC 60079-17, etc. - Page 8 Identification method Product specification inspection Explosion Proof Certification Label Description Precautions Manufacturer and address Model name Serial number: 10 digits of product model code – 2 digits for production year and month – consists of manufacturing serial number Operating temperature: Ambient temperature (-40˚C≤Ta≤+Tx˚C, -40˚C≤Ta≤Tx˚C or Tx˚C) T Class (Tx or Tx...
-
Page 9: Checklist Before Product Installation
Checklist before product installation Check product operation information and appearance status Check the specifications of the L wrench [When disassembling the GE Glass Cover] [FZ] [Box] [FZ-Dual] * On the product label on the product packaging box and on the [When disassembling the Camera Housing Cover] tag on the sunshield portion of the product... - Page 10 Select product installation location When selecting a location to install the product, be sure to install it in a place that does not have any inconsistencies as in the case below. Things to consider when installing the product When selecting the initial location to install the product, please consider the following. Check whether the size of the ‘pedestal mount bracket’...
- Page 11 Product installation and precautions The manufacturer is not responsible for any problems caused by installing a bracket other than the genuine bracket provided by the manufacturer. Pole installation using IVEX-FZ wall mount bracket Wall installation using IVEX-FZ-Dual wall mount bracket - The wall mount bracket can be fixed to a vertical wall.
- Page 12 Product installation and precautions Product defects due to connection errors between the power terminal and RS-485 connector will be treated as customer error and will be repaired at a cost. Connection of PoE dedicated cable Multi cable connection Explosion-proof area NON Explosion-proof area *Please do not OUTPUT...
- Page 13 Product installation and precautions The manufacturer is not responsible for defective finishing of sealing fittings or explosion-proof cable glands (not filling compound, loosely tightening explosion-proof cable glands, etc.). Fastening of sunshield Equipped with sealing fitting [Loctite 263] - In the case of sealing fittings, first fasten the NPT ¾ nipple of , then - Secure the sun shield provided as an accessory to the housing using the fasten the sealing fitting of...
-
Page 14: Ground Installation
Product installation and precautions The manufacturer is not responsible for damage to the product due to lightning, surge, etc. due to failure to ground the product. Ground installation - Product grounding must be done using an external cable (12 AWG) with a cross-section of 3 mm². - Page 15 Installation completed and inspected Manufacturers strongly recommend that all devices undergo final testing prior to installation at their final installation location. Finalization of product installation Junction box internal wiring [Power supply] [AC-220V] [GROUND] Explosion proof cable [IVEX-EMC-A101] [Cat5e Cable] [Joystick] [DC-12V +] [HUB] [DC-12V -]...
- Page 16 Maintenance after product installation When replacing or maintaining the camera, be sure to move to a safe area, not an explosion-proof area. BOX camera replacement Open Camera Housing Cover ※ Depending on the camera height, an offset bracket needs to be installed. - As shown in , check whether the center of the camera matches the Camera - To install the camera, remove 8 M5*10 wrench bolts from the Camera...
- Page 17 Maintenance after product installation The manufacturer only guarantees the use of genuine parts guaranteed by the manufacturer for parts used during device maintenance. Cleaning of GE Glass Protection Grid - Through routine cleaning, the product must be managed periodically to prevent more than 5 mm of dust from accumulating on the surface.
-
Page 18: Network Connection And Setup
Network Connection and Setup You can set the network environment of the camera according to the user's network connection configuration. Installing the camera directly in a LAN environment Installing the camera directly in a LAN environment External remote pc Internet External remote pc DSL/Cable Modem Internet... - Page 19 Network Connection and Setup The IP address range of the user's computer and the IP address range of the camera must match for normal web viewer access. Using the IP Search program PC network settings depending on whether an IP sharer is used Network settings Network settings Control Panel >...
- Page 20 Network Connection and Setup Web viewer access can be checked in normal operation through Google Chrome and Microsoft Edge browsers. Change IP Settings in Web Viewer Web viewer access Please log in to access this site. Authorization required for HTTP://10.20.30.40 Your connection to this site is not secure.
- Page 21 Network Connection and Setup When setting RTSP, you must first check if the ‘554 PORT’ of the router is open. Firmware update method RTSP settings - Press the ‘ADMIN’ icon at the top of the web viewer to enter the SETUP menu. - Service: Set whether to use RTP/RTSP.
- Page 22 Installation inspection check sheet 1. When receiving the product, before on-site installation, please check the pre-checklist in the following order and only install on-site if there are no problems. 2. Please note that in some cases, service measures may be provided at a cost for problems that occur during on-site delivery without prior checklist inspection.
- Page 23 Technical drawing – IVEX-FZ Series Please refer to the technical drawings and review the site situation before and after product installation. IVEX-FZ-Dual Series IVEX-FZ Series...
- Page 24 Technical drawing – Mount bracket Please refer to the technical drawings and review the site situation before and after product installation. IVEX-FZ-Dual Wall Mount Bracket (IVEX-FZ-WB-Dual) IVEX-FZ Wall Mount Bracket (IVEX-WB-01)
- Page 25 MEMO...
