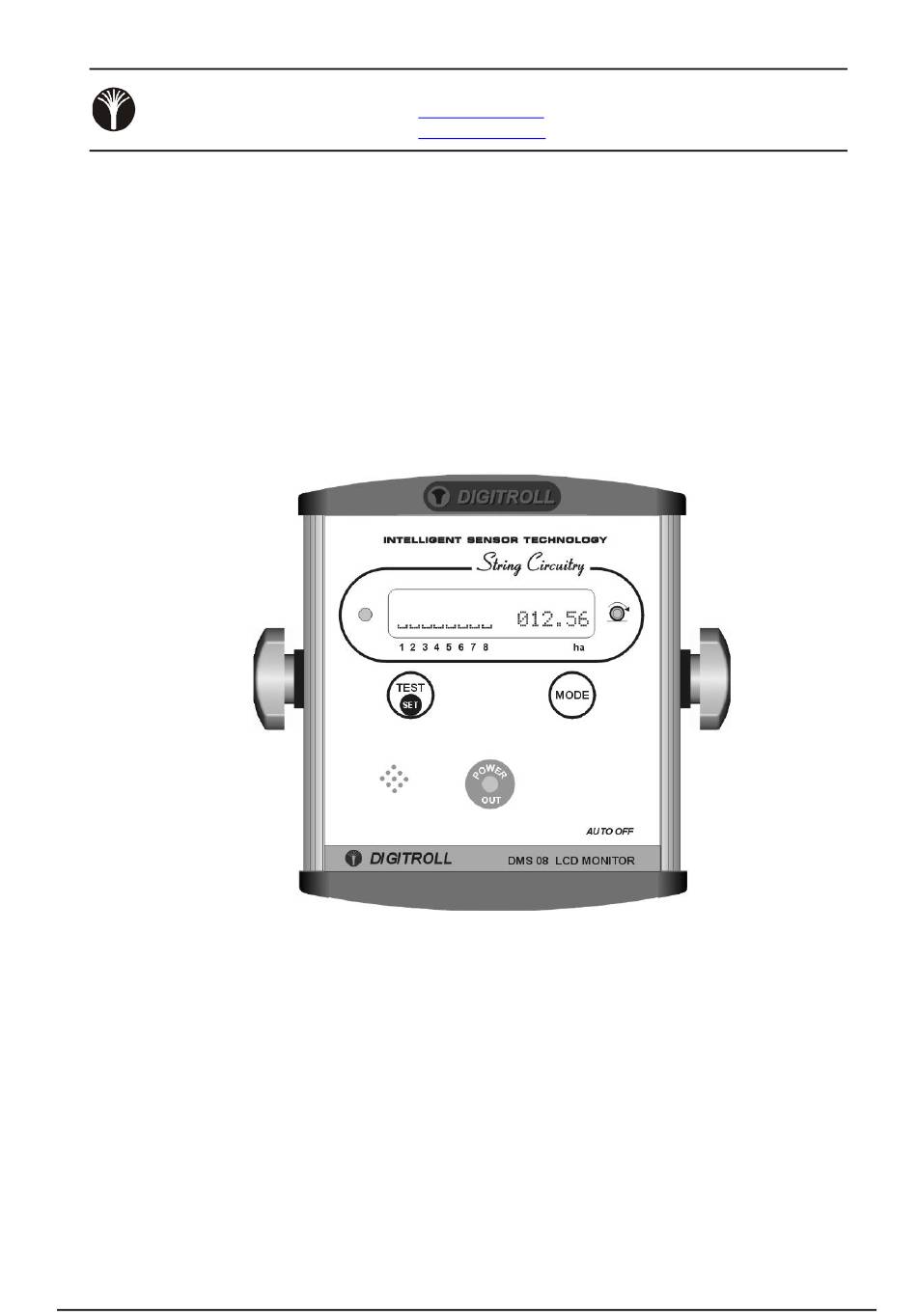

- Page 1 DIGITROLL Kft. DIGITROLL www.digitroll.hu Tel: +36 52/ 557-480 info@digitroll.hu Fax: +36 52/ 557-482 DMS 08 LCD (version 1.x) DMS 08 LCD seeding control system for PLANTERS USER’S MANUAL 2019. 09. 10. – rev. C...
-
Page 2: System Draft
SYSTEM DRAFT SYSTEM DRAFT Seeding control system for planters 1-8 rows with area counter BLUE DS 1000 -custom designed for seeder type, placed in seed tube DS 2000 - custom designed for seeder type, placed in coulter... -
Page 3: Table Of Contents
CONTENT SYSTEM DRAFT ......................2 GENERAL DESCRIPTION ................... 4 MOUNTING ........................5 MONITOR FRONT ......................6 SWITCH ON ........................6 SYSTEM TEST ......................7 MENU ..........................8 SEEDING CONTROL ....................9 SETTING BASIC DATA ..................... 10 TROUBLESHOOTING ....................12 MAINTENANCE, STORAGE ..................15 WARRANTY PROVIDED .................. -
Page 4: General Description
GENERAL DESCRIPTION GENERAL DESCRIPTION DMS 08 LCD MONITOR · illuminated LCD display · massive aluminium housing · audible and visual alarms · 5 selectable languages · nonvolatile memory for safe storage of measured and adjusted data · auto off SYSTEM CONSTRUCTION ·... -
Page 5: Mounting
MOUNTING MOUNTING MONITOR Place the monitor on a clearly visible place in the tractor cabine and fix it with the U-bracket and bolts, up or bottom position to avoid direct sunlight on LCD. The display is illuminated which enables nighttime use with superb visibility •... -
Page 6: Monitor Front

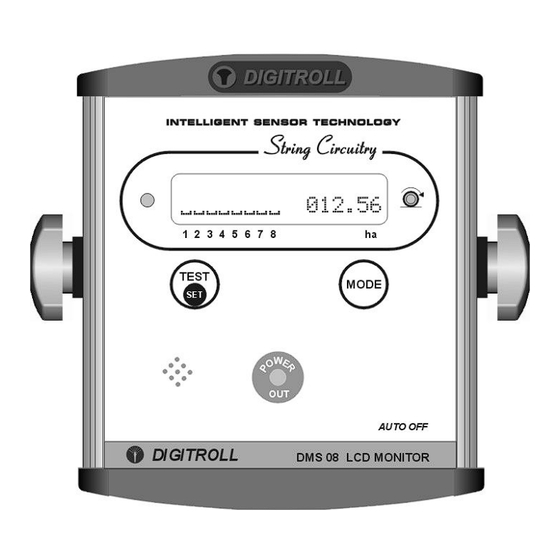

MONITOR FRONT MONITOR FRONT backlighted LCD display Switch indicator wheel-LED (red LED) system test functions, modes settings horn On, 12V out - light Shorted cable - dark - dark Spin up in settings options. One touch: spin up Pushed continuously: spin up in quick time SWITCH ON which is followed by the display... -
Page 7: System Test
SYSTEM TEST SYSTEM TEST The system test is executed: • every switch on, • by pressed button on screen of seed control mode • automatically by change settings of seed sensors. TEST function may be used when there is TEST ..no seeding in progress! During test process the monitor detects: •... -
Page 8: Menu
MENU MENU Control of Seedong Blockage Setting Missing Seed Time Reset Hectare Settings Setting Seed Size 100 Speed Signal Count Entry pf Distance Traveled in 100 Speed Signals Entry of Working Width Language Selection... -
Page 9: Seeding Control
SEEDING CONTROL SEEDING CONTROL The monitor simultaneously detects seeding continuity in all rows. Where seed drop is missing for longer time than preset limit value, seed symbol of that row (*) will disappear from display and alarm sounds in according length. nnnnnnn 015.26 hectare... -
Page 10: Setting Basic Data
SETTING BASIC DATA SETTING BASIC DATA MISSING TIME INTERVAL ADJUSTMENT You can set missing seed time interval between 1.50 sec 0.25 – 2.00 seconds in 6 steps. See also table on page 16. CANCEL HECTARE DATA push button for at least 2 seconds Q Reset area 2 sec. - Page 11 SETTING BASIC DATA 100 SPEED SIGNAL COUNT 100 sign: 000 This is a side function to get information about distance traveled in 100 speed signals. Pull/tow seeding machine on field until 100 speed signals are counted, then measure distance traveled between 0. and 100. signals with a measure tape on the ground.
-
Page 12: Troubleshooting
TROUBLESHOOTING LANGUAGE SELECTION English The program enables the selection of one language out of the 5 followings: Hungarian, Slovakian, Ukrainian, English, German. TROUBLESHOOTING THE MONITOR DOES NOT FUNCTIONING, NO LIGHTS ON DISPLAY • The monitor does not receive 12 VCD power supply (min. 8,5V) •... - Page 13 TROUBLESHOOTING THE MONITOR FUNCTIONS ‘POWER OUT’ LIGHTS, BUT FOLLOWING THE TEST SENSOR SIGNALS ARE PARTIALLY OR TOTALLY MISSING • Caused by mistaken switch off of row detection, some rows are missing from screen. Check again and reset row detection where necessary. (See SETTING ROW SKIP) •...
- Page 14 TROUBLESHOOTING THE MONITOR INDICATES BLOCKAGE AT A SEED MODULE FOLLOWING TEST AND EVEN AFTER CLEANING Defected seed module. Troubleshooting: insert a long stick inside the seed sensor. If LED gets dark for a second: it works. If not: sensor is defected. THE MONITOR INDICATES IRREGULAR SEED DROPS WHEN SEEDER STOPPED •...
-
Page 15: Maintenance, Storage
MAINTENANCE, STORAGE MAINTENANCE, STORAGE • The most important is keep cables and connectors unhurt and check then regularly. • Always clean sensors at the end of seeding season, close the end of extension cable with the waterproof seal. • Do not expose the monitor to direct water, do not store it under –20 C and above + 40 C temperature, protect it from excessive heat and dust. -
Page 16: Missing Seed Time/Speed/Seed Spacing Table
MISSING SEED TIME/SPEED/SEED SPACING TABLE MISSING SEED TIME/SPEED/SEED SPACING TABLE 4 km/h 9 km/h speed: speed: 0,25 0,50 0,75 1,00 1,50 2,00 0,25 0,50 0,75 1,00 1,50 2,00 Missing Missing seed (m) 0,28 0,56 0,83 1,11 1,67 2,22 seed (m) 0,63 1,25 1,88 2,50 3,75 5,00 Number of seed (piece) Number of seed (piece) Seed...
