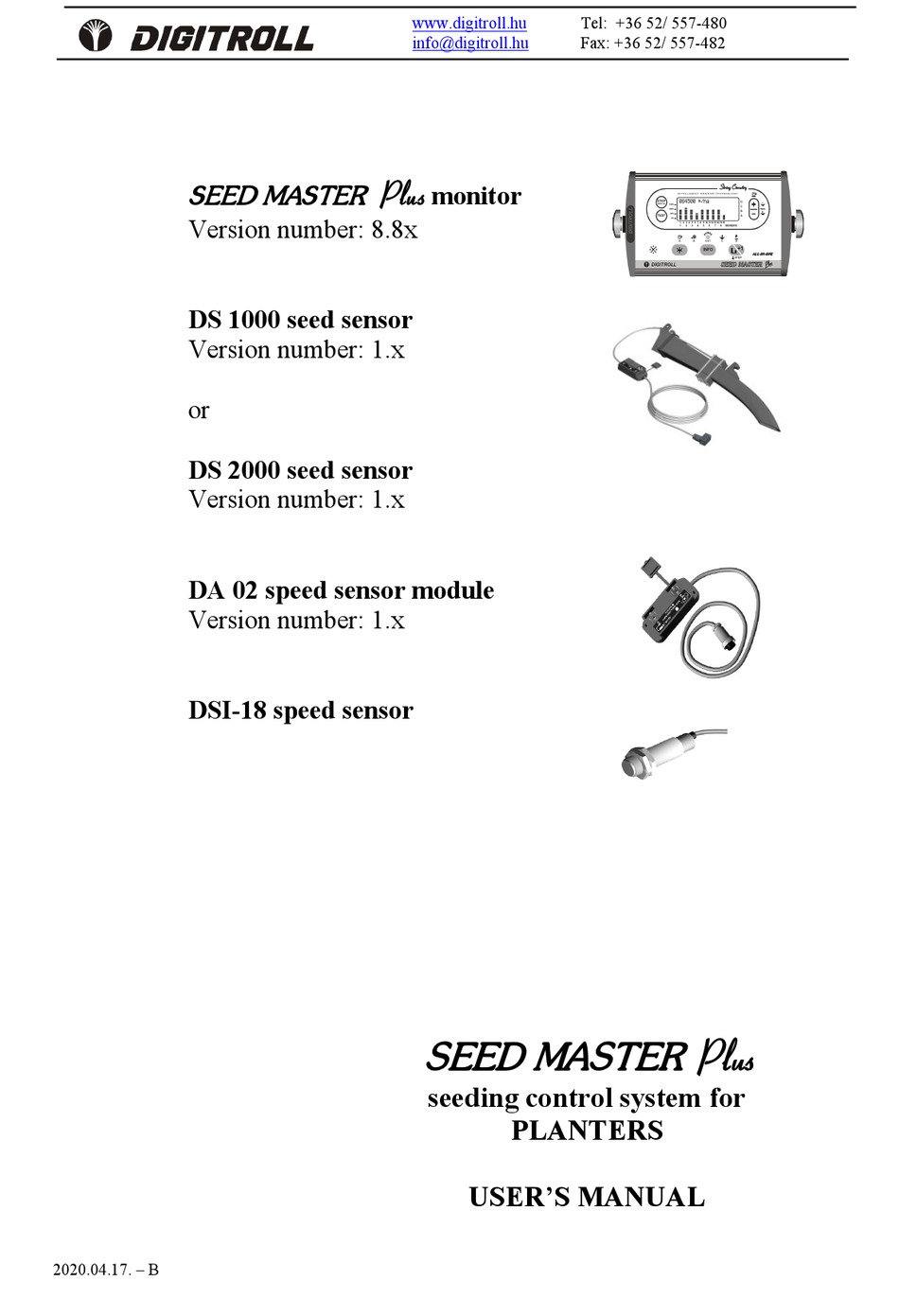

SEED MASTER
Version number: 8.8x
DS 1000 seed sensor
Version number: 1.x
or
DS 2000 seed sensor
Version number: 1.x
DA 02 speed sensor module
Version number: 1.x
DSI-18 speed sensor
2020.04.17. – B
www.digitroll.hu
info@digitroll.hu
Plus
monitor
SEED MASTER
seeding control system for
PLANTERS
USER'S MANUAL
Tel: +36 52/ 557-480
Fax: +36 52/ 557-482
IN T EL L IGEN T S EN S O R T E CH N OL O GY
STOP
8 6 0 0 0
* / h a
D
DISPLAY
150%
Ã
C
100%
ÿ ÿ
ÿ
Å
ÿ ÿ
B
50%
TEST
A
ÿ ÿ
ÿ ÿ
ÿ ÿ
0%
1
2
3
4
5
6
7
8
9 10 1112 1314 15 16
1
2
3
4
5
6
7
8
SENSORS
A
B
C
D
O UT
+1
INFO
STOP
DIGITROLL
Plus
L
max.
R
ALL-IN-ONE
Advertisement
Table of Contents
Related Manuals for Digitroll SEED MASTER Plus
Summary of Contents for Digitroll SEED MASTER Plus
- Page 1 Tel: +36 52/ 557-480 info@digitroll.hu Fax: +36 52/ 557-482 Plus SEED MASTER monitor IN T EL L IGEN T S EN S O R T E CH N OL O GY STOP 8 6 0 0 0 * / h a...
-
Page 2: System Draft
ÿ ÿ ÿ ÿ ÿ 9 10 11 1213 14 15 16 SENSORS RADAR-II O U T INFO ALL-IN-ONE STOP DIGITROLL RAD/HIR/4 BLUE DA 02 PIROS KÉK SPEED MODUL DSI-18J AKKU SPEED MODUL 12VDC MAX. DS 1000 -custom designed for seeder type, placed in seed tube... -
Page 3: Table Of Contents
WARRANTY PROVIDED ..................24 The seeding control system and its technical characteristics described in this manual are under patent process. Any means of recording or public use of principles, images, system drafts are subject to prior written contribution of DIGITROLL Kft. -
Page 4: General Description
GENERAL DESCRIPTION GENERAL DESCRIPTION SEED MASTER Plus MONITOR · illuminated LCD display · massive aluminium housing · audible and visual alarms · adjustable horn volume · 8 selectable languages · nonvolatile memory for safe storage of measured and adjusted data SYSTEM CONSTRUCTION ·... - Page 5 Horn volume Tractor The seeding control system and its technical characteristics described in this manual are under patent process. Any means of recording or public use of principles, images, system drafts are subject to prior written contribution of DIGITROLL Kft.
-
Page 6: Mounting
MOUNTING MOUNTING MONITOR Place the monitor on a clearly visible place in the tractor cabine and fix it with the U-bracket and bolts, up or bottom position to avoid direct sunlight on LCD. The display is illuminated which enables nighttime use with superb visibility •... -
Page 7: Monitor Front
Every push of a button is accompanied by a short beep in case the button is operative in that function. SWITCH ON Following switch on the console presents Seed Counting Pro v8.71 running software version, DIGITROLL Ltd. > RS... selected horn volume, > <Normal >... -
Page 8: System Test
SYSTEM TEST SYSTEM TEST The system test is executed: • every switch on, • by pressed button on screen of any seed control mode TEST SENSOR • automatically by change settings of seed sensors. TEST TEST function may be used when there is no seeding in progress! .. -
Page 9: Menu
MENU MENU INFO POPULATION RATIO CONTROL OF SEEDING TOTAL SEEDS AND TOTAL DISPLAY, ACTUAL BLOCKAGE ADJUSTABLE AREA SEED/HA SENSITIVITY AVERAGE SEED/HA PARTIAL SEEDS AND PARTIAL TEST AREA TEST 2 sec. AVERAGE SEED/HA 2 sec. DISTANCE MEASUREMENT STATISTICS OF 100 SEEDED GRAINS STATISTICS OF 100 SEEDED GRAINS SETTING OPTIMAL SEED... -
Page 10: Setting Basic Data
SETTING BASIC DATA SETTING BASIC DATA SETTING OPTIMAL SEED SPACING Two options are available: Normal One spacing value can be entered. Adjustment between 3,0 - 45,0 cm <Normal > STOP DISPLAY f?e~ 20.0 cm Spinner up & down Shift to Hybrid TU<J * * * >... - Page 11 SETTING BASIC DATA SETTING MIN. AND MAX. LIMITS FOR POPULATION CONTROL Shift between > e120%c 90000 */ha values Spinner up & down 100%= 75000 */ha < 80%d 60000 */ha> TEST Maximum limit: alarms when population get over set value Minimum limit: alarms when population get under set value. Disable audible alarm: c 151% SELECTION OF SEED SIZE AND SHAPE...
- Page 12 SETTING BASIC DATA However, skipped rows are not involved in seeding control and are indicated by a (.) character. SEEDING ROW DISPLAY SETTING Enhanced visibility can be reached by doubling the distances of the displayed seed sensors on screen (up to 8 rows). BBBBBBBBe B B B B B B B Bf 12345678...
- Page 13 SETTING BASIC DATA watch this red LED as well, which shows you how sharply the sensor aligns the bolt head, both at start and end points. Measurement of distance traveled between 0-100. speed signals: screws wheel sensor Distance travelled = ??? cm Nomber of speed signals = 100.
-
Page 14: Monitor Settings
MONITOR SETTINGS MONITOR SETTINGS ADJUSTMENT OF HORN VOLUME > RS)).. > LANGUAGE SELECTION The program enables the selection of one language out of the 8 followings: Magyar Hungarian, Slovakian, Ukrainian, English, German, French, Italian, Change language> Spanish. -
Page 15: Control Of Seeder Settings
CONTROL OF SEEDER SETTINGS CONTROL OF SEEDER SETTINGS STATISTICS OF 100 EXPECTED/SEEDED GRAINS TEST 2 sec. To reach this function push button for at least 2 seconds. TEST The appliance calculates the seeding time of 100 seeds on the basis of the given distance, the optimal seed spacing and current speed. - Page 16 CONTROL OF SEEDER SETTINGS If time interval between seed drops is smaller than expected: • Use of unsuitable seed disk results homogenous, but too dense seed drops. This case the program does not interpret it as double drop, but the number of measured seeds will be higher than 100. •...
-
Page 17: Seeding Control
SEEDING CONTROL SEEDING CONTROL CONTROL OF SEEDING BLOCKAGE The monitor simultaneously detects seeding continuity in all rows. Where seed drop is missing for longer time than preset limit value, seed symbol of that row (*) will disappear from display and alarm sounds in according length. 2.00 sec STOP DISPLAY... - Page 18 SEEDING CONTROL CONTROL OF POPULATION RATIO You can read the ratio of the desired and the actually measured population in each row, displayed with bar graphs. Use this function for seeds that can be detected precisely by the photoelectric cells (seeds larger than 5 mm, such as maize, sunflower, sugar beet, etc) Necessary basic data •...
- Page 19 SEEDING CONTROL Display hold To ease analysis, display can be freezed (fixed) any time, even when seeder is stopped.. In this case the monitor scans row diagrams and their values are shown numerically. Push button again to STOP 084500 */ha DISPLAY STOP Á...
-
Page 20: Stored Seeding Data
SEEDED GRAINS AND AREA COUNTS INFO The SEED MASTER Plus monitor continuously measures here (and in both seeding control mode) the seeded area and the number of total seeded grains. The area count controlled (start/stop) by signals of seed sensors. If seed sensors are not applied, the counting is continuously. -
Page 21: Distance Measurement
DISTANCE MEASUREMENT DISTANCE MEASUREMENT STOP <0 DISPLAY |Ü------------Û| up to 65.500 meters Deletion START> The date of distance traveled in 100 speed signal is used here. Measurement begins when START button pushed, appears new display on screen, and it ends by the next push of the button. <0 |Ü------------Û| 600 m... -
Page 22: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING THE MONITOR DOES NOT FUNCTIONING, NO LIGHTS ON DISPLAY • The monitor does not receive 12 VCD power supply (min. 8,5V) • Wrong polaritiy battery lead connection • Missed to switch ON button on the back side of monitor Defected main switch or electronic part •... - Page 23 TROUBLESHOOTING THE MONITOR FUNCTIONS ‘POWER OUT’ LIGHTS, BUT FOLLOWING THE TEST SENSOR SIGNALS ARE PARTIALLY OR TOTALLY MISSING • Caused by mistaken switch off of row detection, some rows are missing from screen. Check again and reset row detection where necessary. (See SETTING ROW SKIP) •...
-
Page 24: Maintenance, Storage
MAINTENANCE, STORAGE THE MONITOR INDICATES BLOCKAGE AT A SEED MODULE FOLLOWING TEST AND EVEN AFTER CLEANING Defected seed module. Troubleshooting: insert a long stick inside the seed sensor. If LED gets dark for a second: it works. If not: sensor is defected. THE MONITOR INDICATES IRREGULAR SEED DROPS WHEN SEEDER STOPPED Seeds or seed fragments picked up accidentally by the air-flow are detected by...
