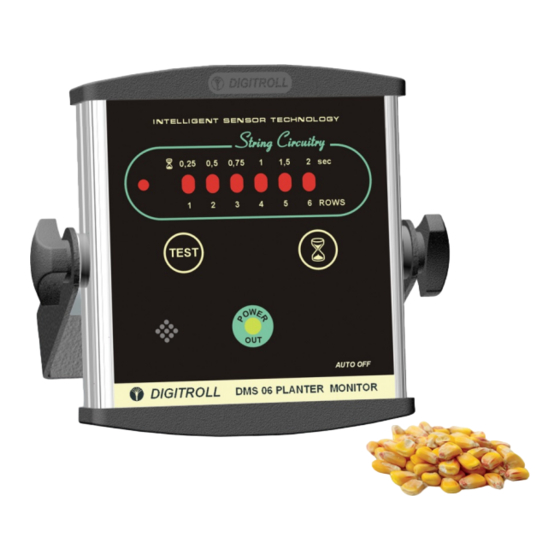

- Page 1 DMS 06 PLANTER MONITOR INSTRUCTION MANUAL...
-
Page 2: System Draft
SYSTEM DRAFT... - Page 3 INT E L L IGE N T S EN SOR T ECHNOL O GY S tring Circ uitry 0,25 0,5 0,75 6 RO WS TES T O U T A UTO OFF DMS 06 PLANTER M ONITOR DIGITROLL blue PIR OS KÉK DA 01 MODUL AK KU 12VDC M A X .
-
Page 4: Table Of Contents
SEED SHORTFALL THRESHOLD FOR ERROR INDICATION ......6 MAINTENANCE, STORAGE ..................7 WARRANTY ......................... 7 TROUBLESHOOTING ....................8 TABLE OF SEED SHORTFALL .................. 9 GENERAL INFORMATION DMS 06 MONITOR · Durable aluminium case · Audible and visual alarms · Automatic shut-down SYSTEM CONFIGURATION ·... -
Page 5: Installation
Adjusting sensitivity of Horn error indication (max. time period of seed shortfall) AUTO OFF DIGITROLL DMS 06 PLANTER MONITOR Switched on, 12V OUT= continuous light Sensor search = darkens for a short time Cable short = dark during operation Switched off... -
Page 6: Turning The System On
TURNING THE SYSTEM ON TURNING THE SYSTEM ON Press the button. Upon turning the device on, a system test is performed. Then the device is ready to monitor the interruptions in the seeding process. SYSTEM TEST This test is performed: •... -
Page 7: Maintenance, Storage
MAINTENANCE, STORAGE See the Table of Seed Shortfall on the last page for further information. When started after shutdown, the default setting of 2 seconds is applied. When started after automatic switch-off, the last threshold value is used. MAINTENANCE, STORAGE •... -
Page 8: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Malfunction Possible cause Resolution Device cannot be switched Reverse polarity. Check polarity. Stand-by LED (red light on Interruption in supply Check the power machine’s the left) is off. current circuit. mains, fuse panel, etc. Defective monitor Return it to the manufacturer or one of its services. -
Page 9: Table Of Seed Shortfall
TABLE OF SEED SHORTFALL TABLE OF SEED SHORTFALL 4 km/h 9 km/h Seeding speed: Seeding speed: 0,25 0,50 0,75 1,00 1,50 2,00 0,25 0,50 0,75 1,00 1,50 2,00 Seed Seed shortfall (m) 0,28 0,56 0,83 1,11 1,67 2,22 shortfall (m) 0,63 1,25 1,88 2,50 3,75 5,00 Plant Plant spacing Number of seeds... - Page 10 TABLE OF SEED SHORTFALL...
- Page 11 TABLE OF SEED SHORTFALL...
- Page 12 TABLE OF SEED SHORTFALL...
