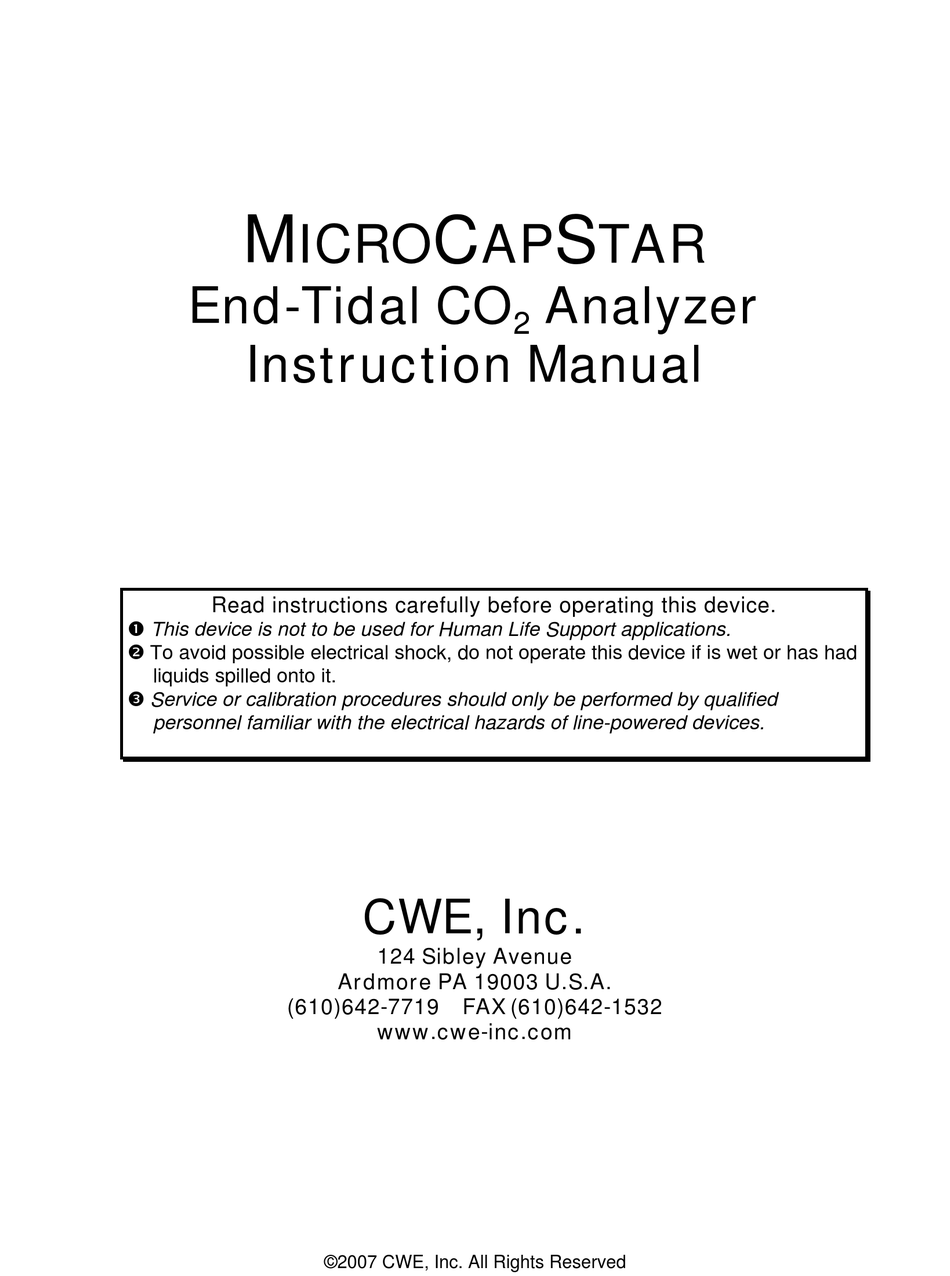

M
ICRO
End-Tidal CO
Instruction Manual
Read instructions carefully before operating this device.
ΠThis device is not to be used for Human Life Support applications.
• To avoid possible electrical shock, do not operate this device if is wet or has had
liquids spilled onto it.
Ž Service or calibration procedures should only be performed by qualified
personnel familiar with the electrical hazards of line-powered devices.
(610)642-7719 FAX (610)642-1532
C
AP
CWE, Inc.
124 Sibley Avenue
Ardmore PA 19003 U.S.A.
www.cwe-inc.com
©2007 CWE, Inc. All Rights Reserved
S
TAR
Analyzer
2
Advertisement
Table of Contents
Related Manuals for CWE MicroCapStar
Summary of Contents for CWE MicroCapStar
- Page 1 Ž Service or calibration procedures should only be performed by qualified personnel familiar with the electrical hazards of line-powered devices. CWE, Inc. 124 Sibley Avenue Ardmore PA 19003 U.S.A. (610)642-7719 FAX (610)642-1532 www.cwe-inc.com ©2007 CWE, Inc. All Rights Reserved...
- Page 2 STATEMENT OF WARRANTY IF THIS INSTRUMENT FAILS WITHIN A PERIOD OF ONE YEAR FROM THE DATE OF DELIVERY OR INSTALLATION, CWE, INC. WILL, AT ITS OPTION, REPAIR OR REPLACE IT FREE OF CHARGE TO THE PURCHASER. THIS WARRANTY EXCLUDES DAMAGE INCURRED THROUGH ABUSE OR ACCIDENT AND CONSUMABLE ITEMS OR COMPONENTS SUCH AS BATTERIES.
-
Page 3: Table Of Contents
1.0 INTRODUCTION.................... 4 MICROCAPSTAR FRONT PANEL ..............4 2.0 SPECIFICATIONS ..................4 2.0 SPECIFICATIONS ..................5 3.0 SETTING UP THE MICROCAPSTAR............6 4.0 OPERATION ....................7 4.1 CALIBRATION....................7 4.2 MONITOR DISPLAY AND SETTINGS ............7 4.3 END-TIDAL OR FAST CO DISPLAY SWITCH .......... -
Page 4: Introduction
An RS232 serial output is provided for connection to an external computer, whereby data can be independently collected and analyzed. The MicroCapStar has built-in audible and visual alarms for detecting out-of- range end-tidal CO and other alarm conditions conditions. The CO... -
Page 5: Specifications
Serial data output format ......2400 baud, 8 data, no parity, 1 stop bit Electrical requirements ........120VAC/220VAC switchable, 35VA Dimensions (main unit) ......19W x 5.25H x 16D in., 49W x 13H x 41D cm Weight ....................10 lbs. (4.5kg) ©2007 CWE, Inc. All Rights Reserved... -
Page 6: Setting Up The Microcapstar
Various tubing adapters are provided for making this connection. ‘ See the remainder of this manual for the various operating modes and controls. ©2007 CWE, Inc. All Rights Reserved... -
Page 7: Operation
MicroCapStar Instruction Manual 4.0 OPERATION 4.1 CALIBRATION The CO sensor used in the MicroCapStar is highly linear, so a two-point calibration is all that is required. Zero adjust: With the sample tubing set open to room air, press rocker switch to the... -
Page 8: End-Tidal Or Fast Co Display Switch
Check Sample Flow: This LED will flash if the sample flow is obstructed or otherwise out of range. Error: This LED will flash if an error or alarm condition is encountered. The LCD panel will provide a description of the condition. ©2007 CWE, Inc. All Rights Reserved... -
Page 9: Setting And Using The Etco Alarm
MicroCapStar Instruction Manual 4.7 SETTING AND USING THE ETCO ALARM This MicroCapStar provides a user-selectable alarm for ETCO When this alarm is turned on, and an out of range ETCO measurement is encountered, an alarm will sound and the ERROR LED will flash. -
Page 10: Rs232 Output (Rear Panel)
( e.g., Windows HyperTerminal). 5.0 MAINTENANCE The MicroCapStar monitor requires no routine maintenance, other than periodically replacing the in-line hydrophobic filter. This filter is inserted in the port on the front panel of the instrument. These filters are... -
Page 11: Ordering Information
OK: This is the normal status display, and indicates there are no operational problems with the instrument. 6.0 ORDERING INFORMATION Accessories and replacement parts for the M are available from ICRO CWE, Inc. The following table describes these items and gives the Part Numbers. PART No. DESCRIPTION ======== =================================================== 15-10000 Analyzer, with sample set &... -
Page 12: Microcapstar Quick Start Guide
MicroCapStar Quick Start Guide Setup: Connect the MicroCapStar sample tubing set using the attached diagram as a guide. Note the shaded areas on the diagram, which represent the tubing volume that should be minimized. Other connections are less critical, and can be adjusted according to your particular setup. - Page 13 1/16" "T" adapter Expiratory MINIMIZE THIS VOLUME Line Ventilator tubing Tracheal Tube Inspiratory Notes: Line 1. Minimize tubing and connector volume between tracheal tube and CO2 sample port. MicroCapStar Recommended Sample Tubing Connection CWE, Inc. 12/8/05 ©2007 CWE, Inc. All Rights Reserved...
